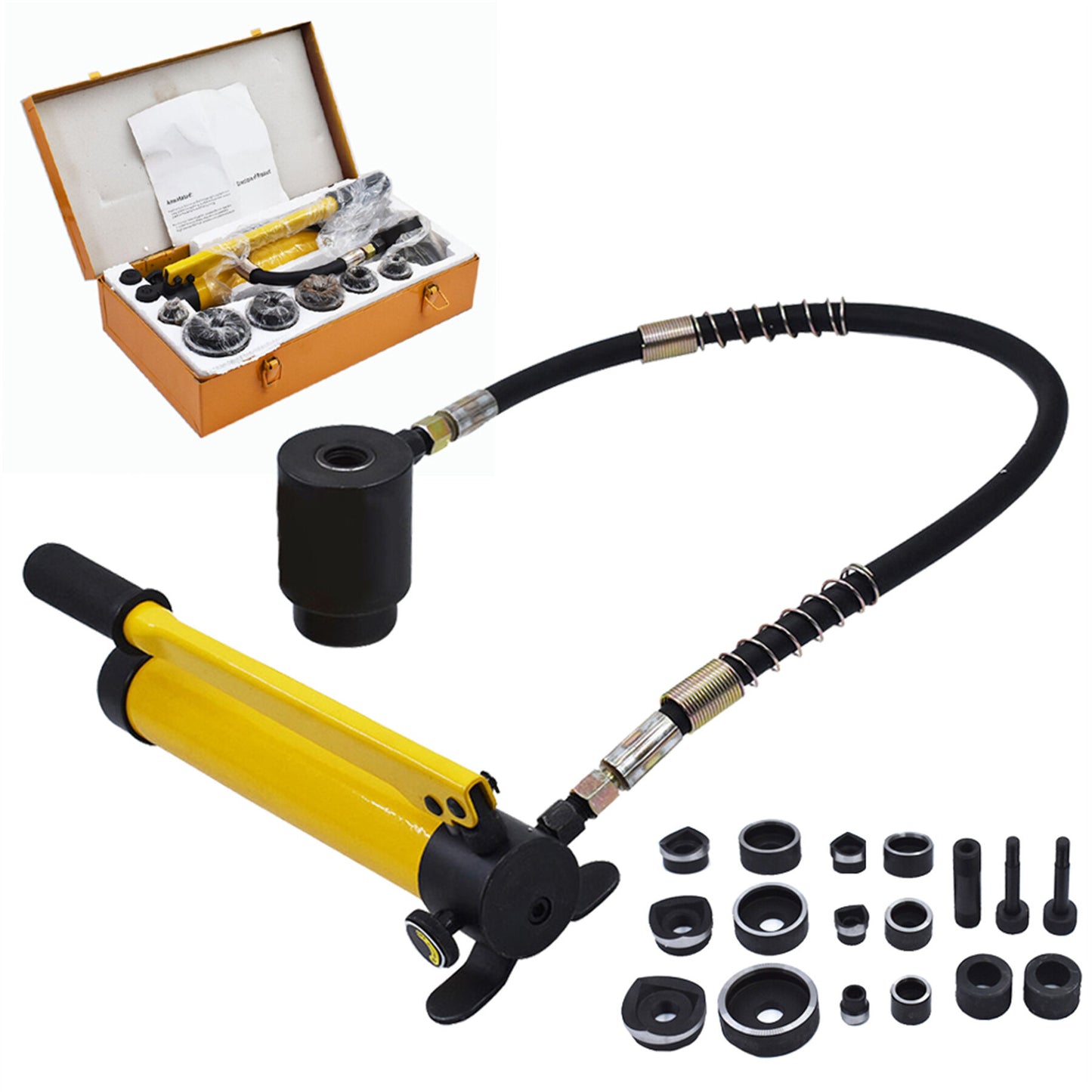

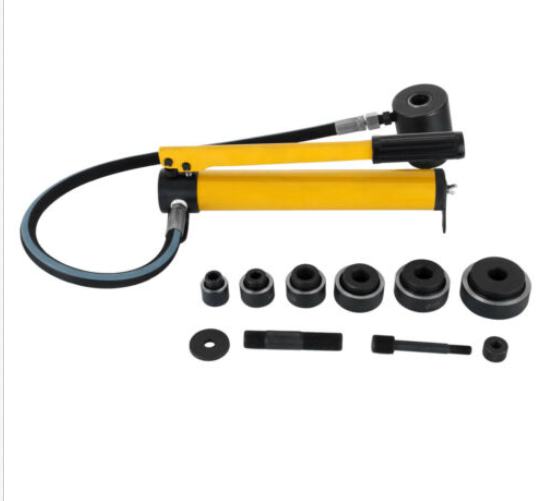

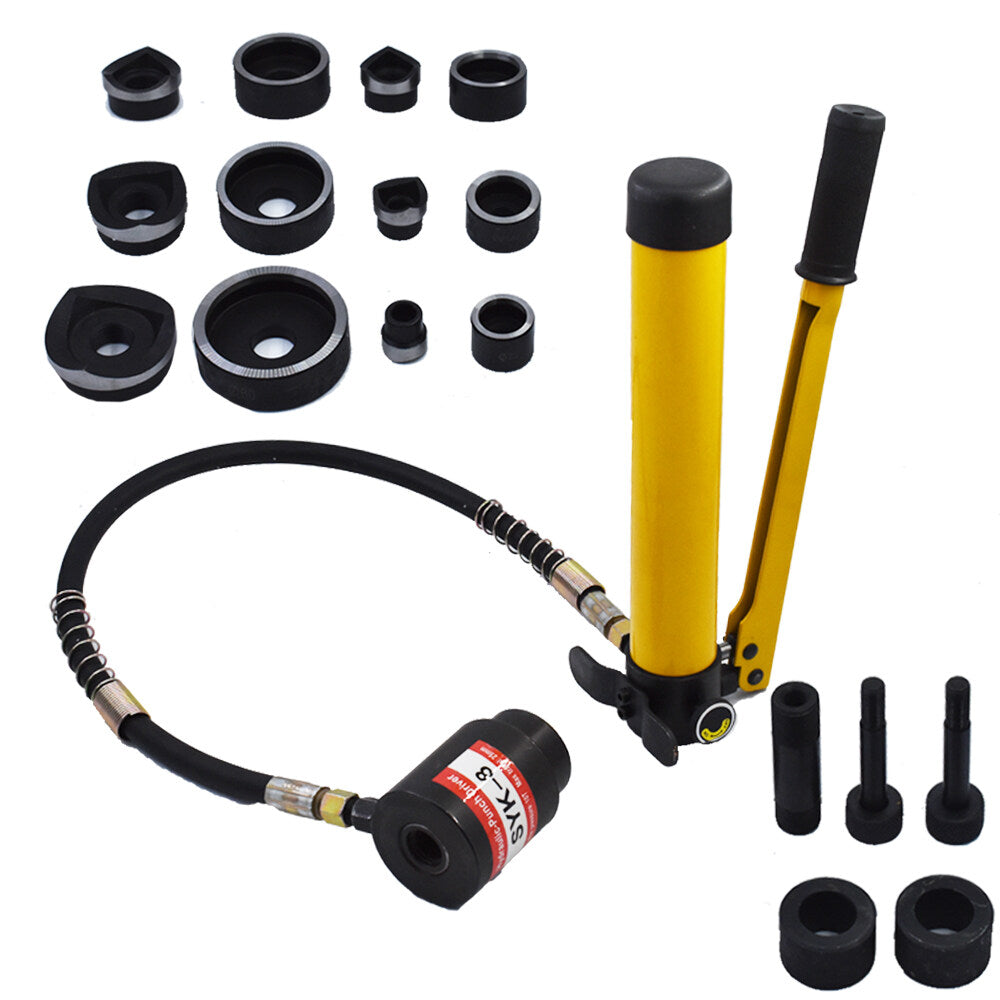

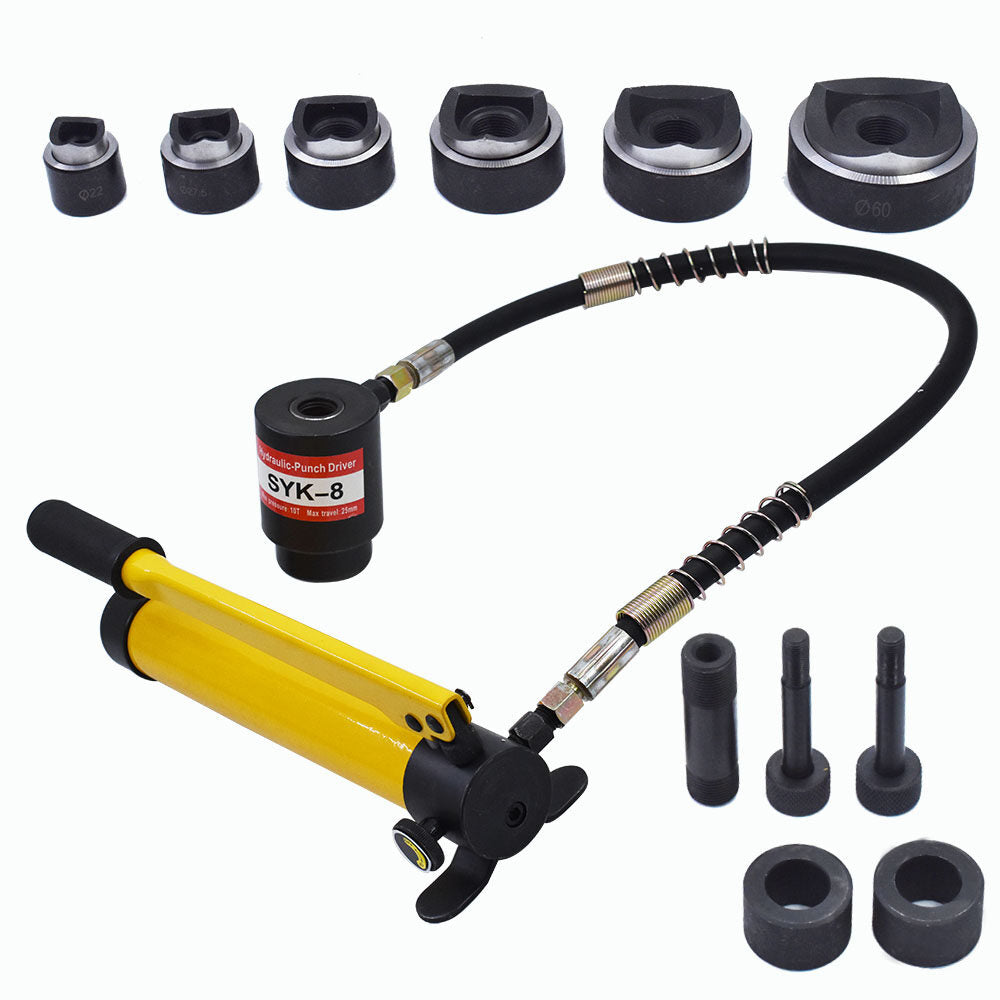

10 Ton 1/2 Inch to 2 Inch Hydraulic Knockout Punch Driver Tool Kit with 6 Dies Hole Complete Tool Electrical Conduit Hole Cutter Set
Specifications:
Max Pressure:10 ton
6 x Dies: 1/2", 3/4", 1", 1 1/4", 1 1/2", 2"
Max Thickness for Stainless Steel: 2 mm ( 14 gauge )
Max Thickness for Steel: 3.2 mm ( 11 gauge )
2 x Draw Studs: 3.1"L x 0.31"Diam & 3.2"L x 0.3"Diam
Actual Hole Size: 0.885" (22.5mm), 1.115" (28.3mm), 1.362" (34.6mm), 1.701"(43.2mm), 1.951"(49.6mm), 2.416"(61.5mm)
Features:
6 Dies & Punches Interchangeable to Meet Different Needs
Rotatable ON / OFF Switch for More Safety
Easy Seating with the Brackets on the Bottom of the Hydraulic Pump
Plastic Grip at the End of the Long Steel Handle
Portable Metal Case for Convenient traveling
Notes:
Before punching a large hole, use tools such as hand drill to set a small hole at first.? Empty punching is strictly prohibited!?? ?
Package Content:
1 x 10-Ton Pump（with hose）

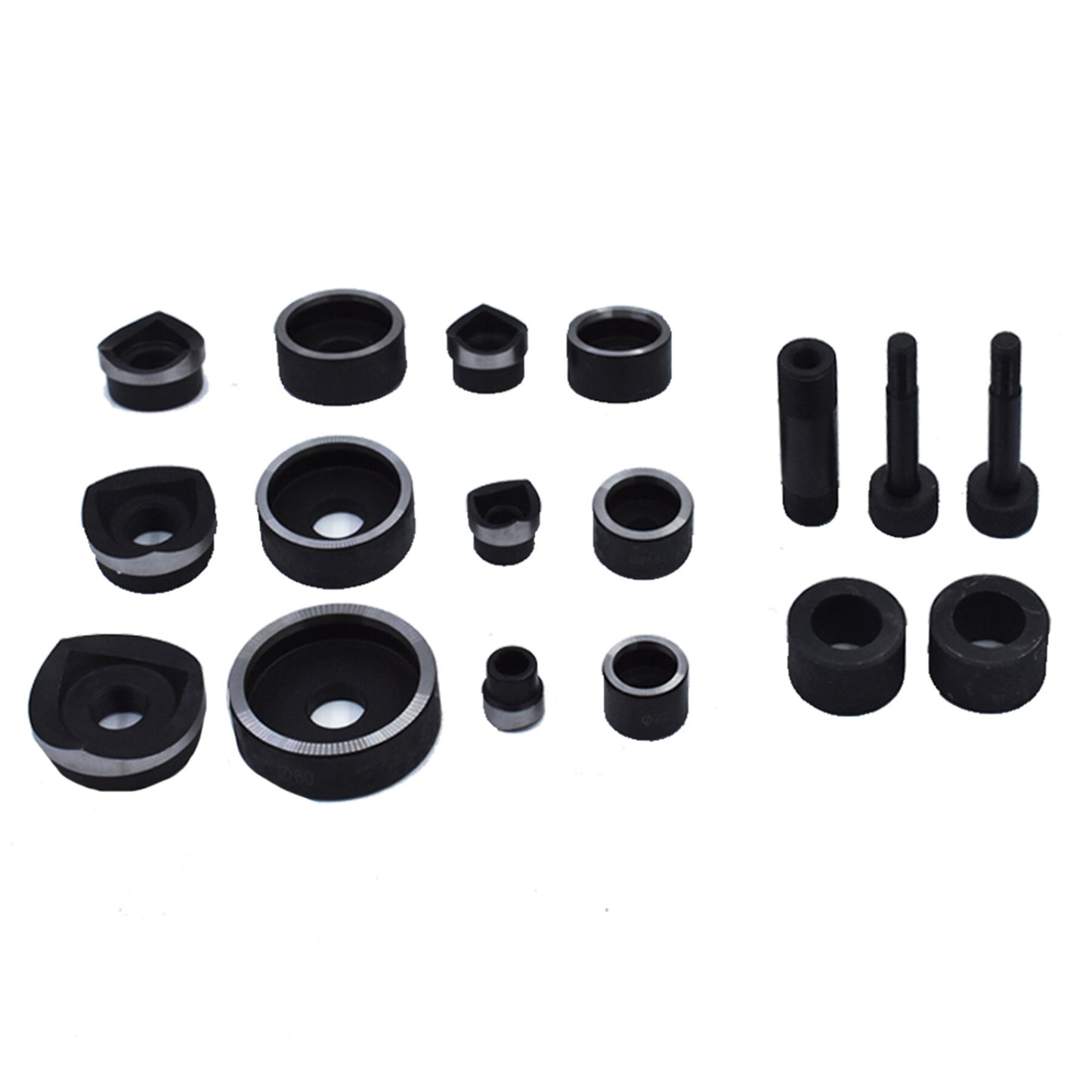

6 x Dies & Punches
2 x Spacers
1 x Piston Shaft
2 x Draw Studs
1 x Sturdy Metal Carrying Case
1 x Manual
