ALL-CARB 6 Spool 21 GPM Hydraulic Directional Control Valve Hydraulic Valve Double Acting Valve w/ 2 Joystick 3625 PSI SAE Ports for Small Tractors Tractors Loaders Log Splitters
ALL-CARB 6 Spool 21 GPM Hydraulic Directional Control Valve Hydraulic Valve Double Acting Valve w/ 2 Joystick 3625 PSI SAE Ports for Small Tractors Tractors Loaders Log Splitters

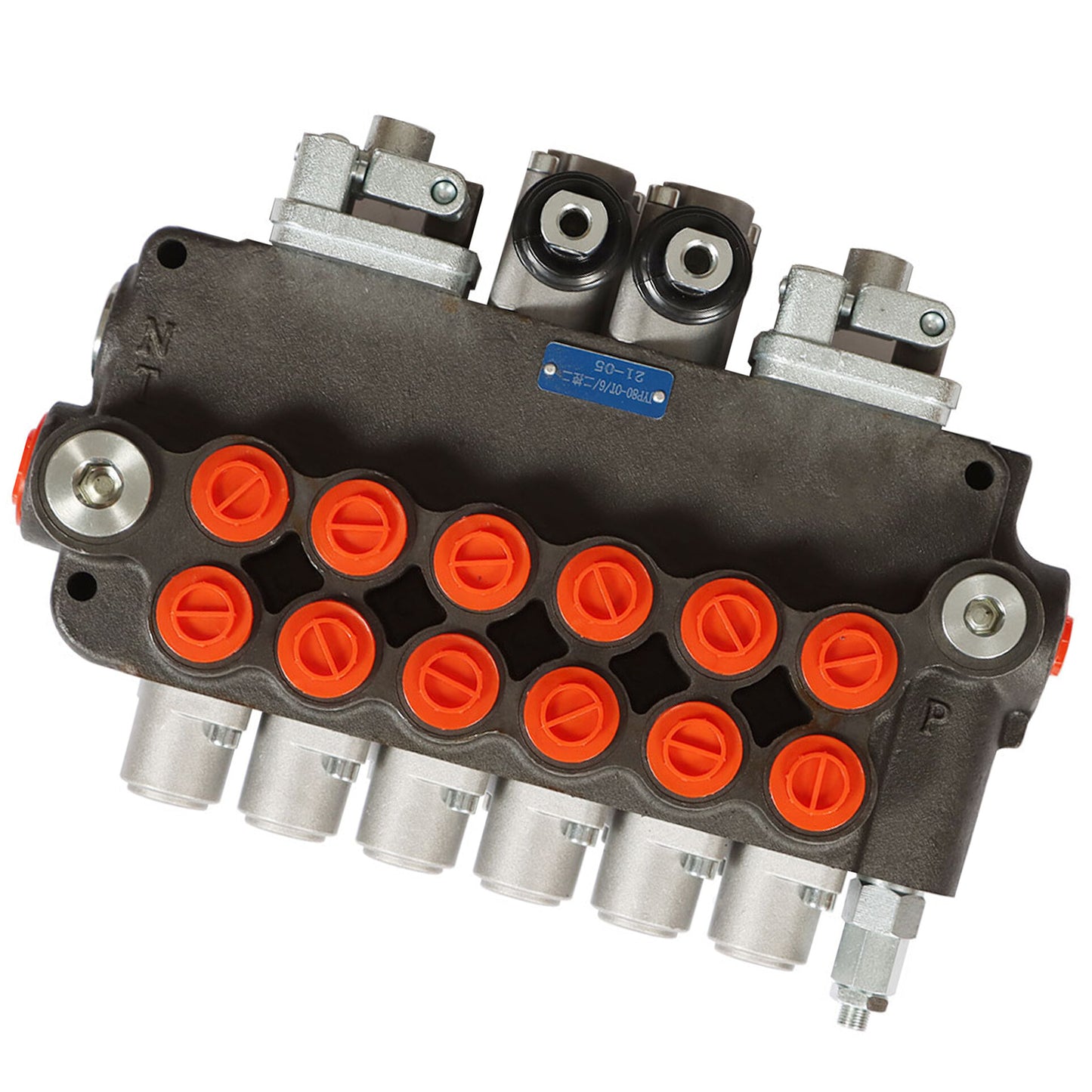

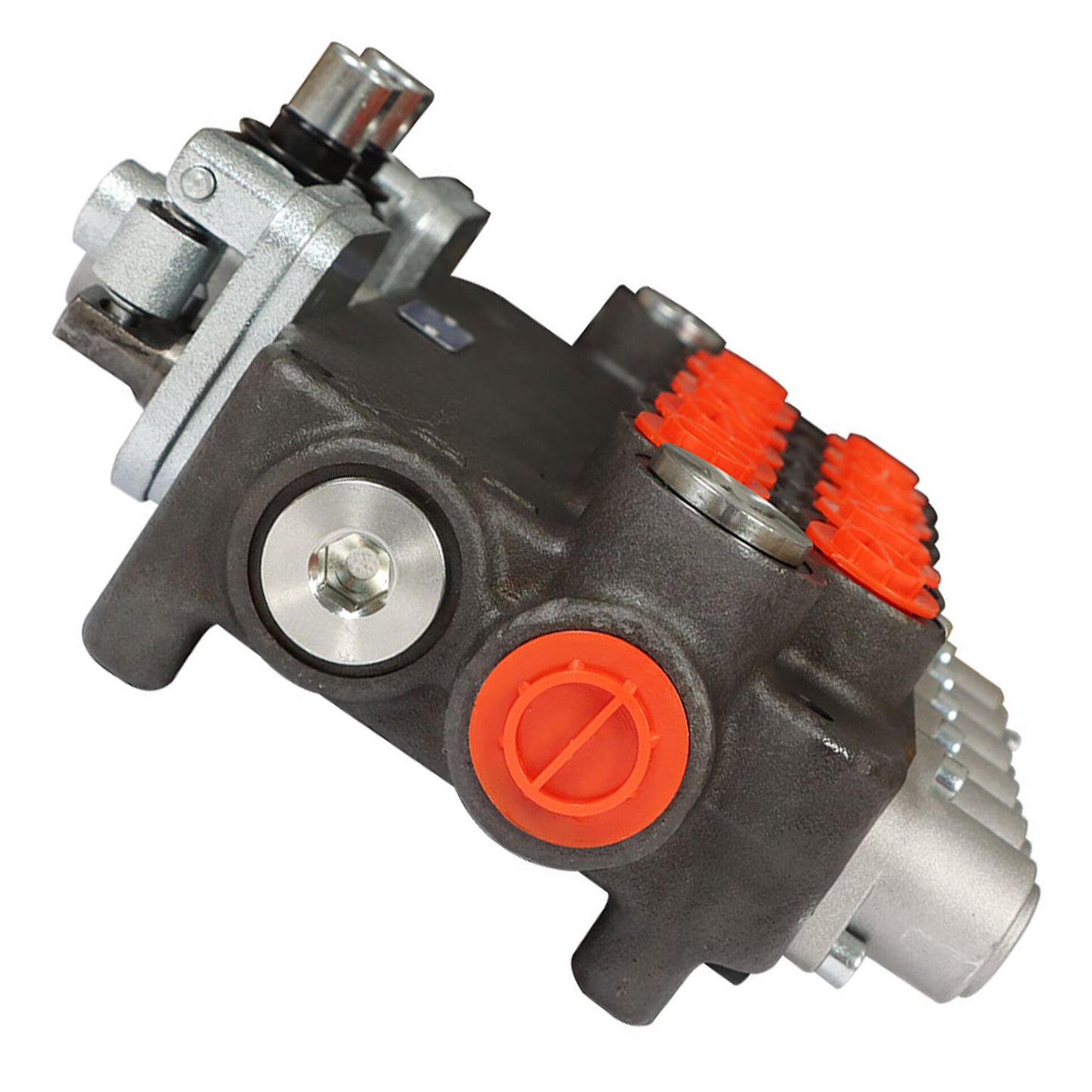

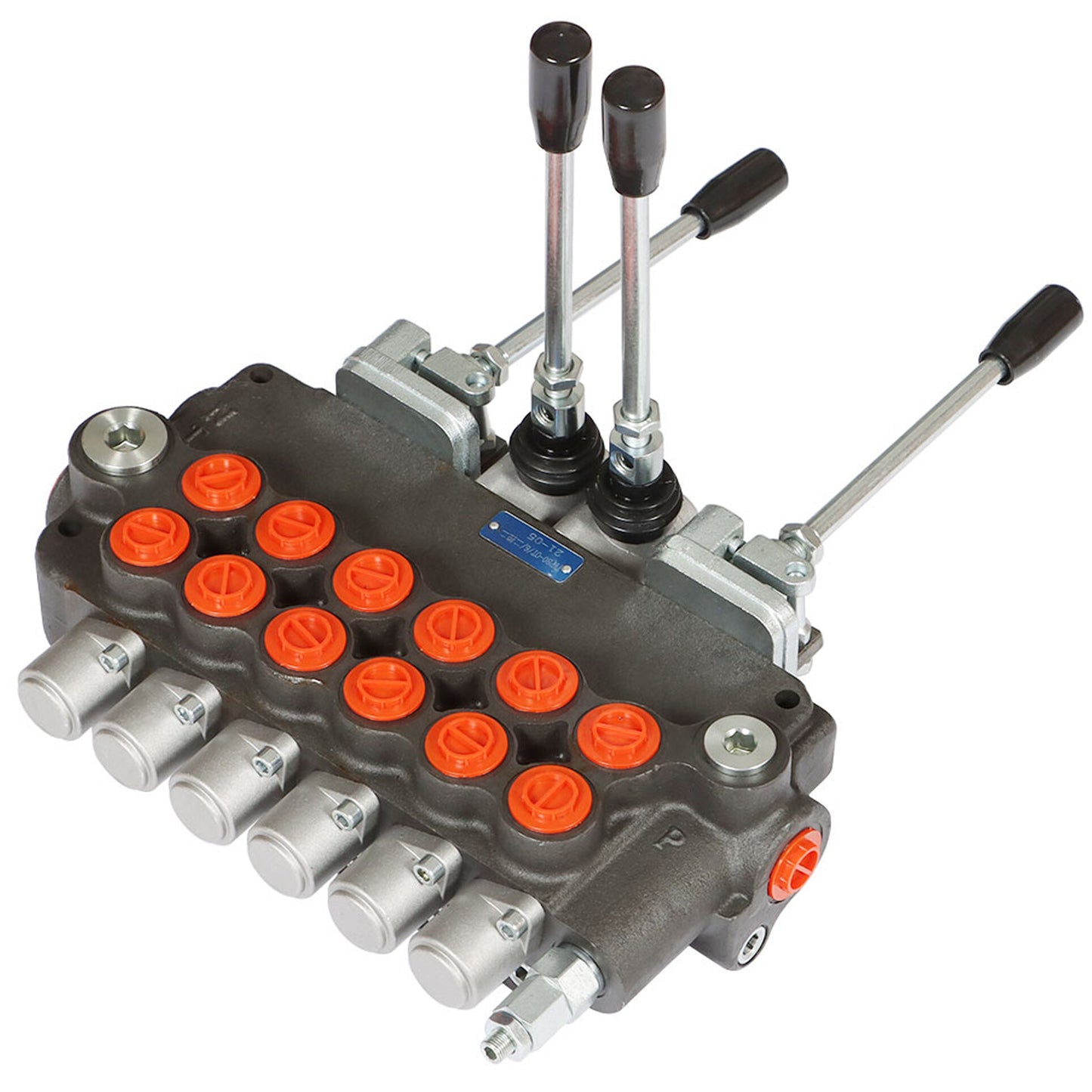

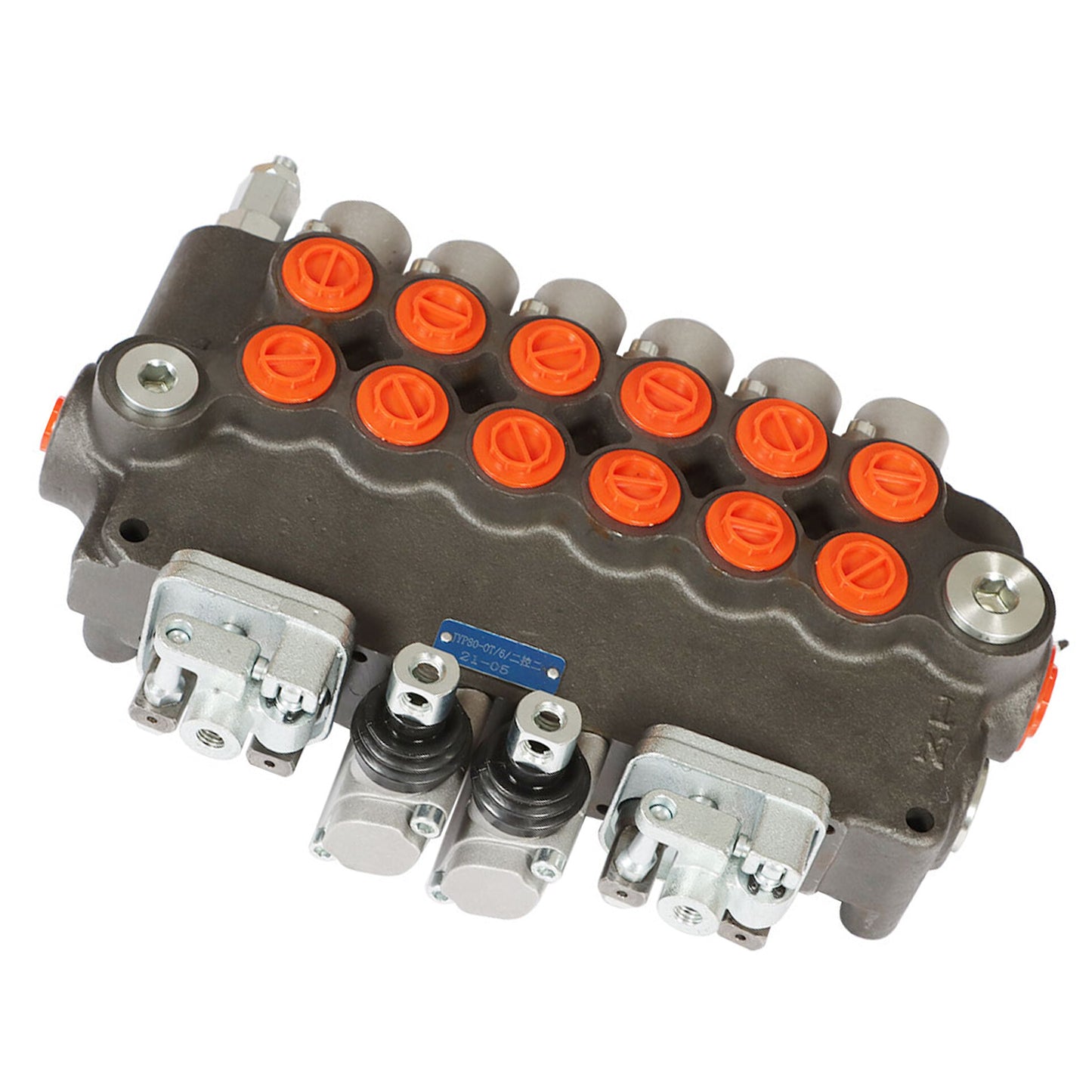

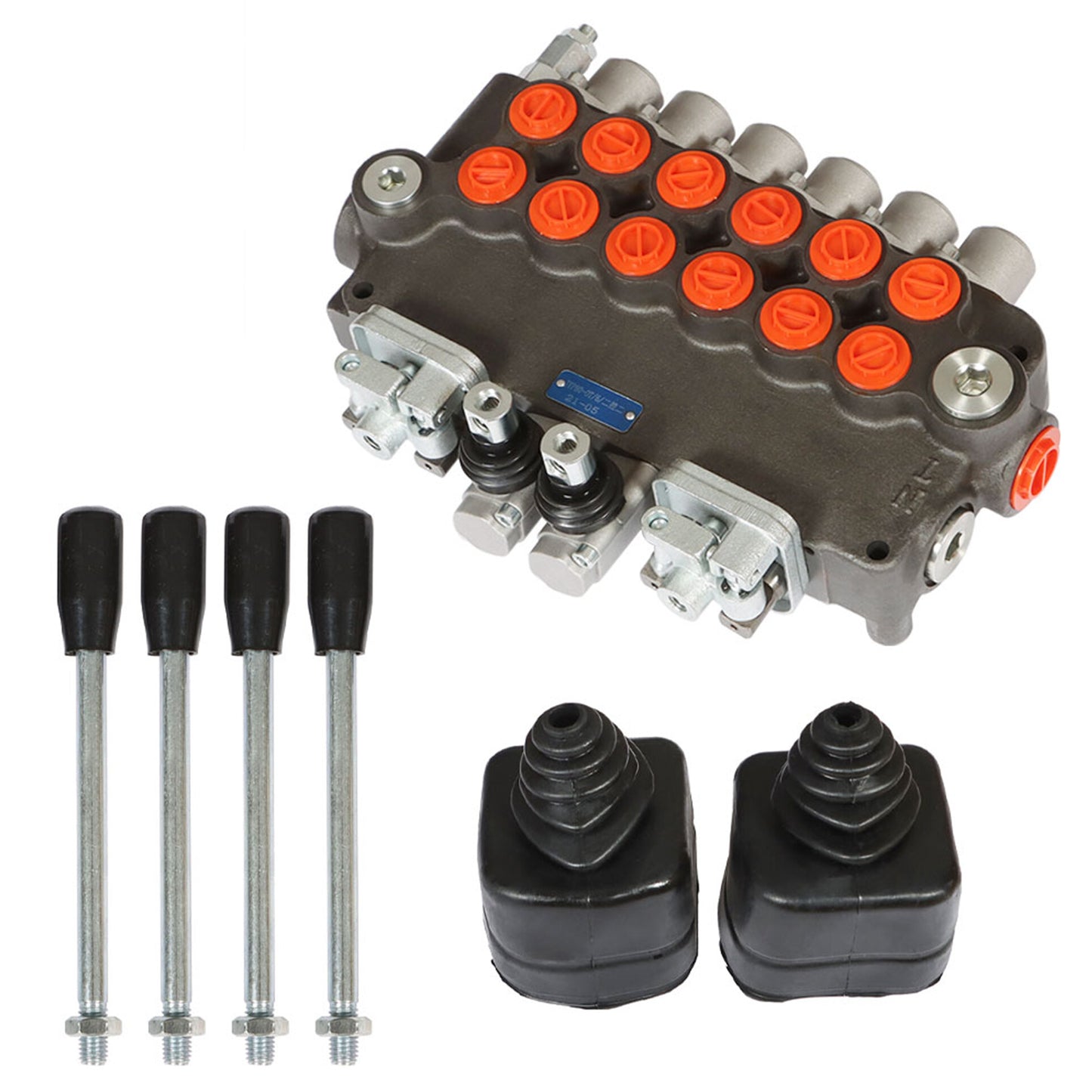

6 Spool 21 GPM Hydraulic Directional Control Valve Hydraulic Valve Double Acting Valve 3625 PSI SAE Ports
Features:
Max Operating Pressure: P = 3625 PSI, T = 725 PSI, A & B = 4350 PSI
Flow Rating: 21 GPM (80 l/min)
A & B Work Ports:? 10 SAE O-Ring (7/8"-14) Thread
Inlet Port: 10 SAE O-Ring (7/8"-14) Thread
Outlet Port: 12 SAE O-Ring (1-1/16") Thread
Advantages:
Adjustable Relief Valve Range: 1500 to 3625 PSI
6 Spool valve with 2 Joysticks and compact design allows for installations in tight areas
All spools are standard double acting with spring return to neutral position which are ideal for double acting cylinders
Used for open center systems (pump to tank flow) - closed center option available
Precision ground and hard chrome-plated spools assure a long life
High-tensile cast iron monoblock construction
SAE O-ring ports ensure a secure seal and are not easily clogged
Capable of closed center or power beyond (conversion plug required)
