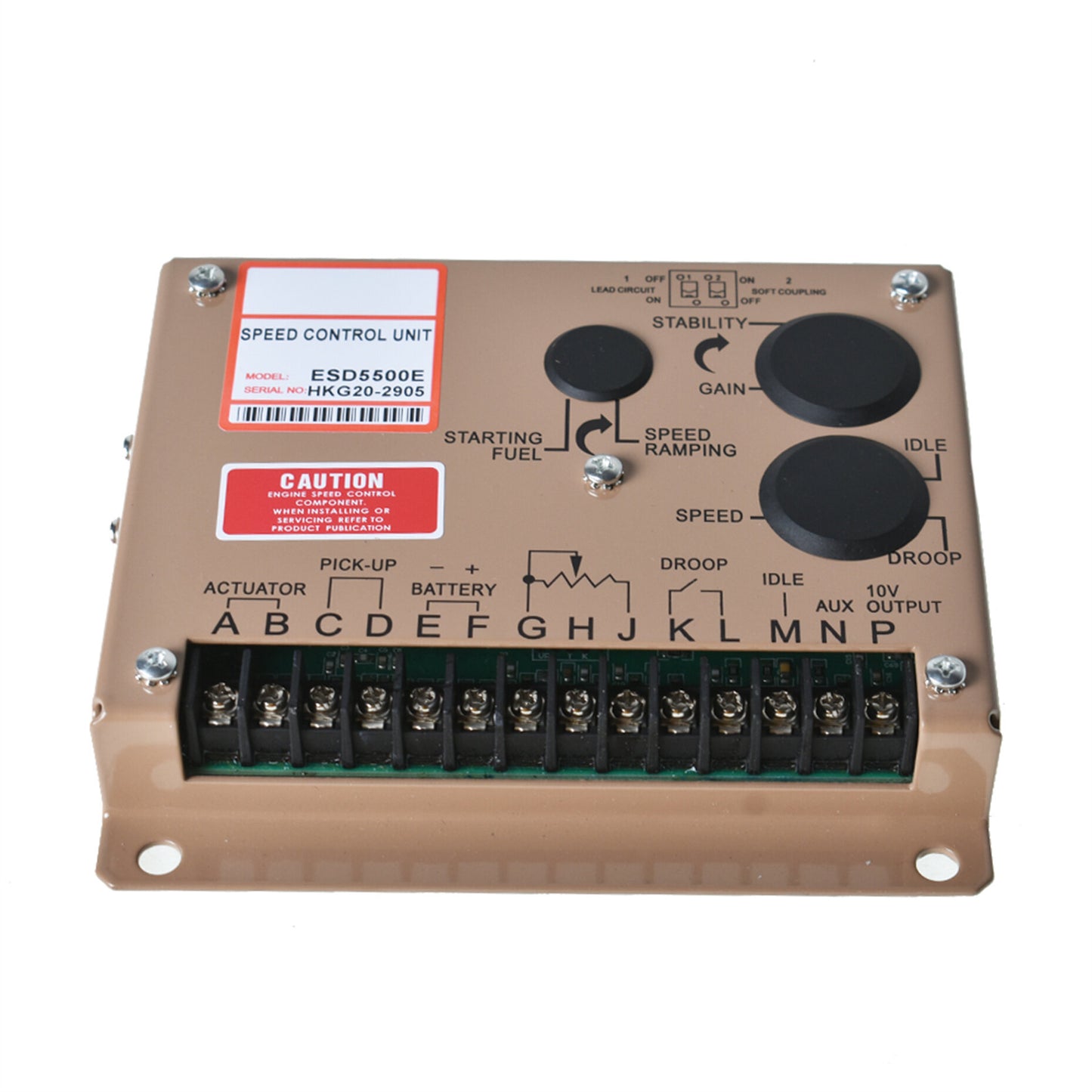

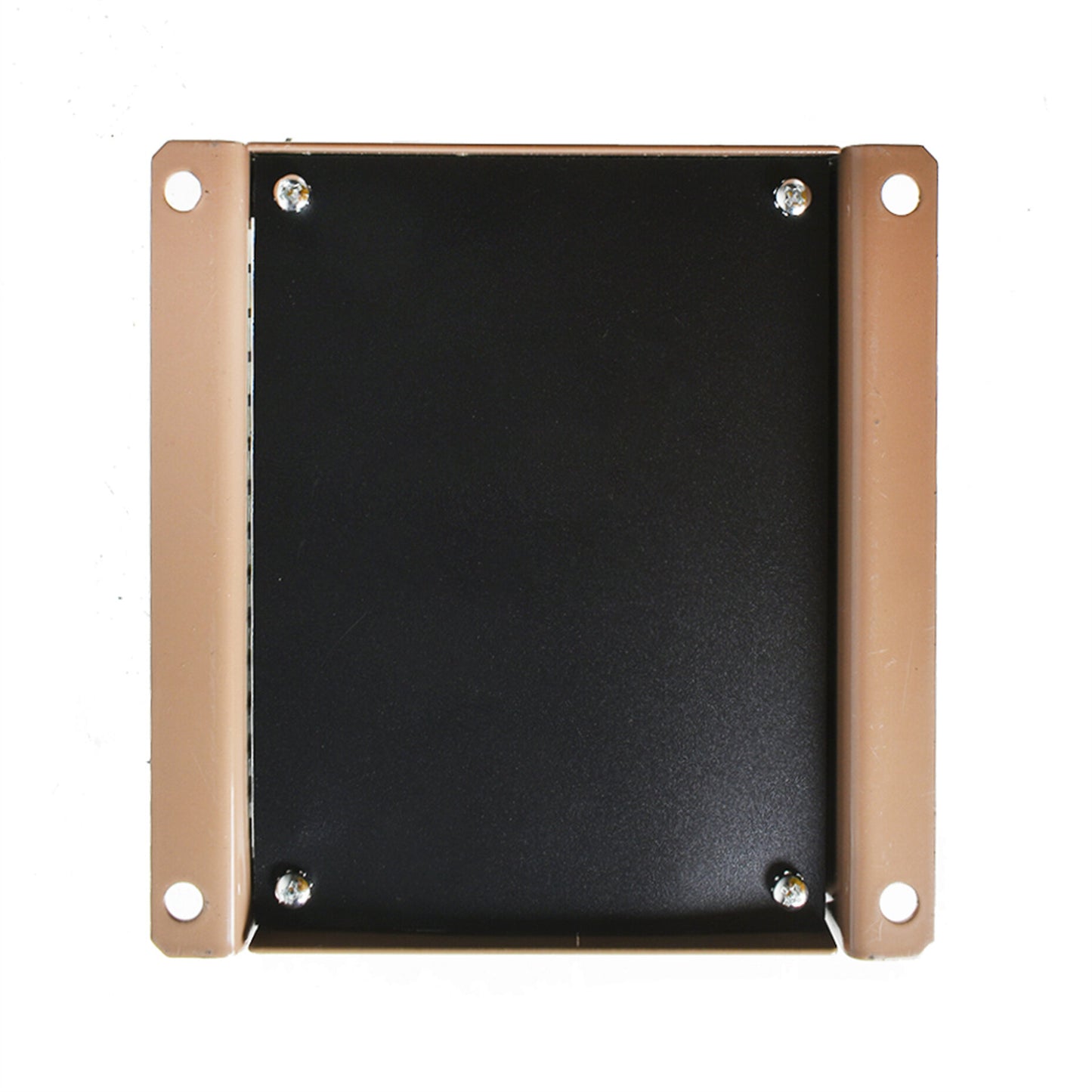

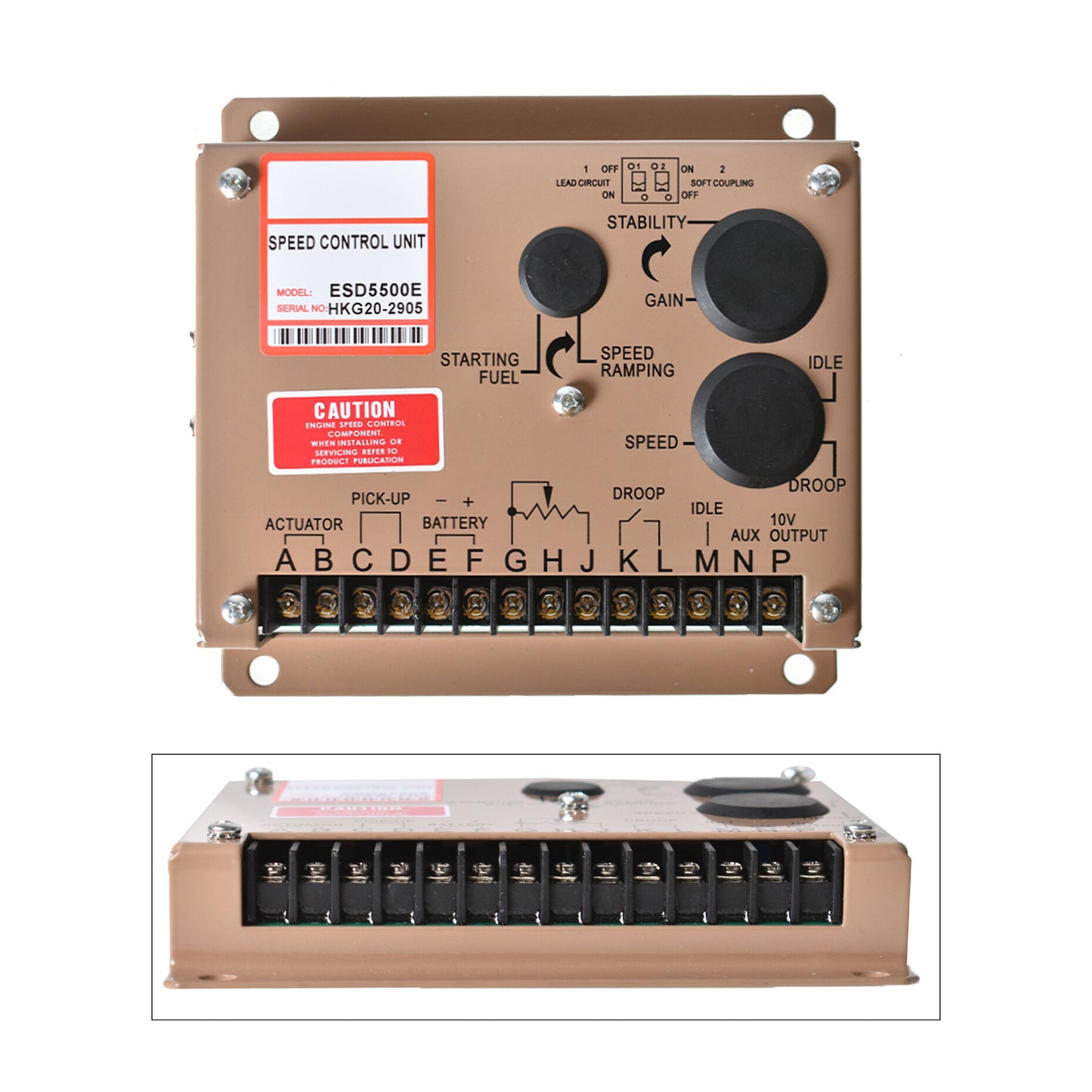

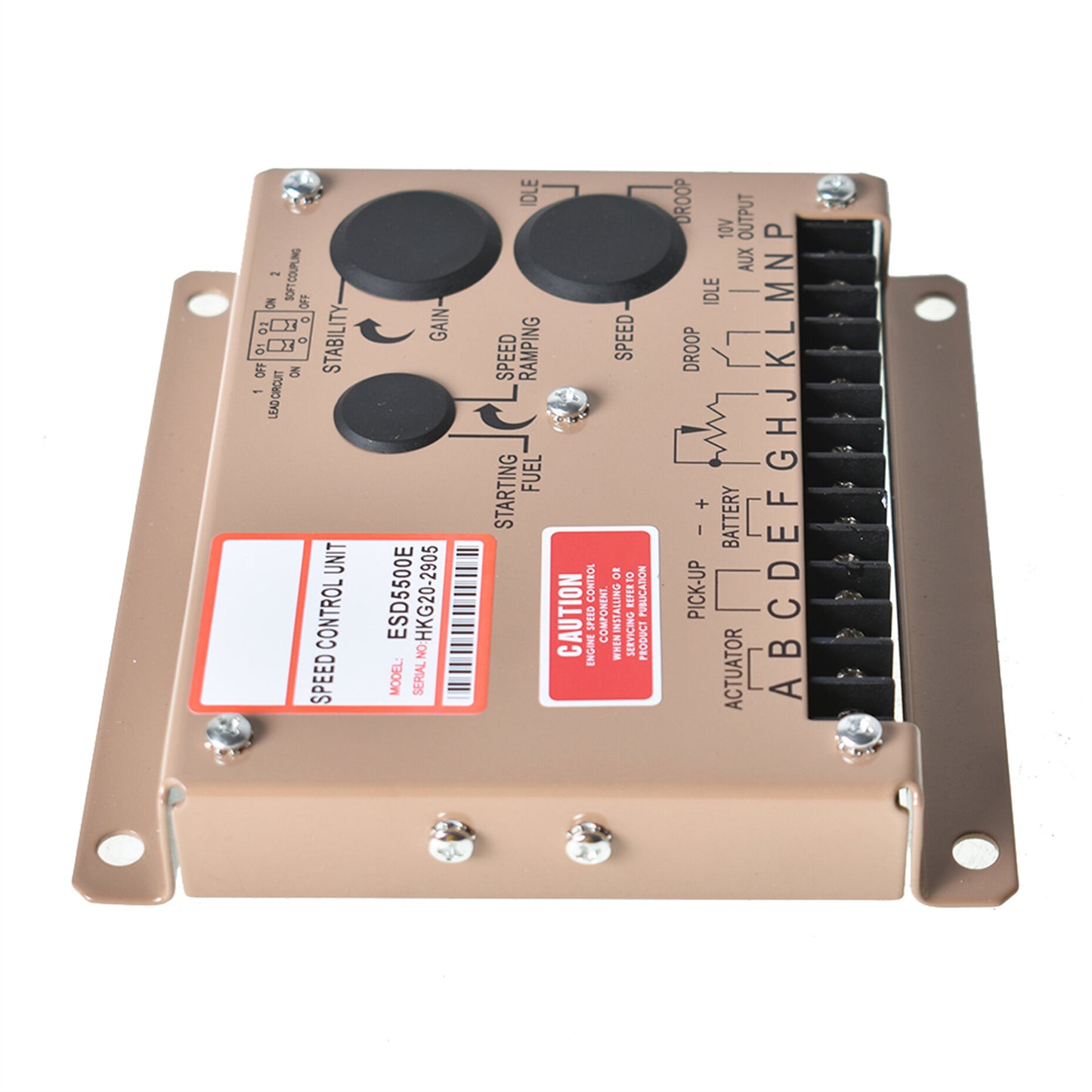

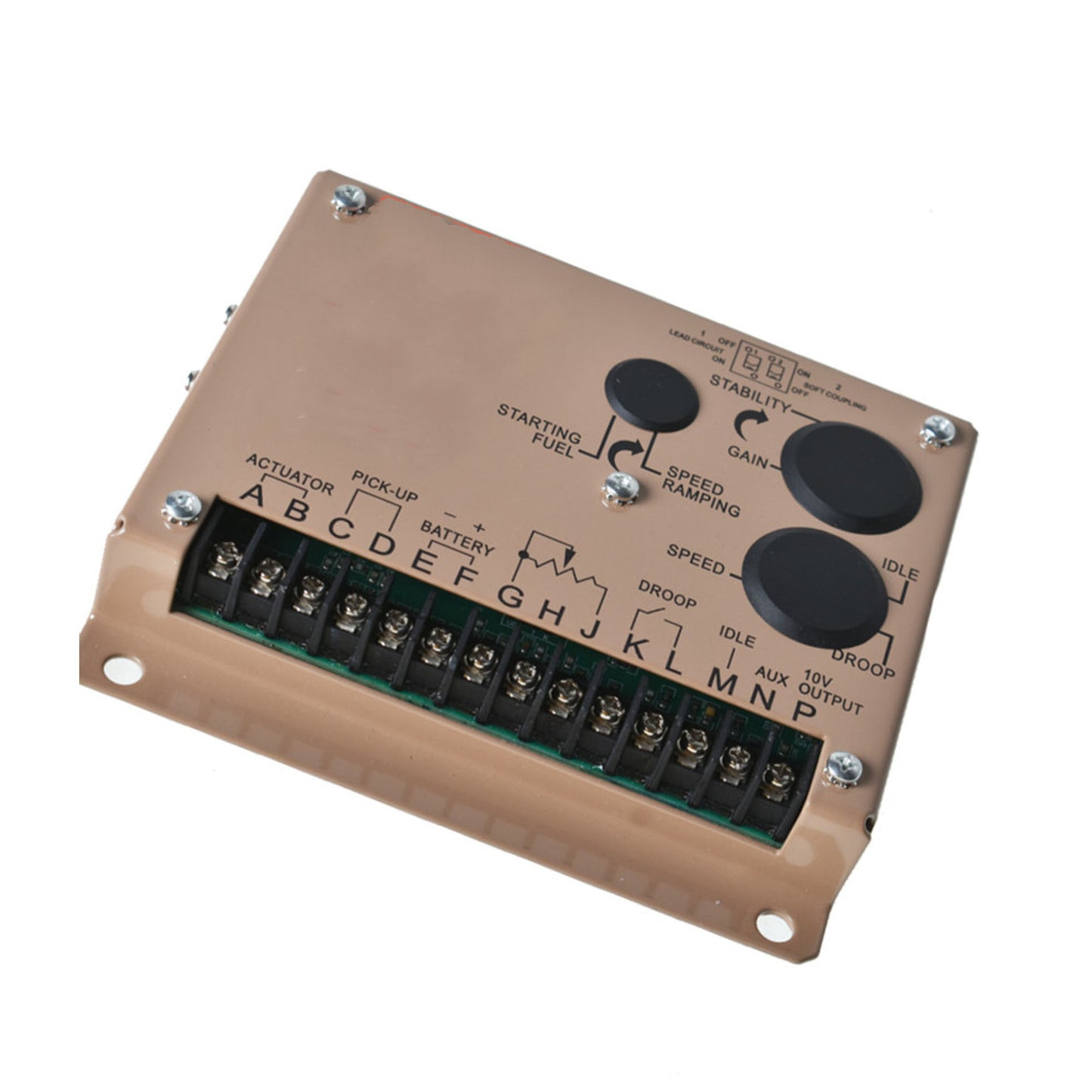

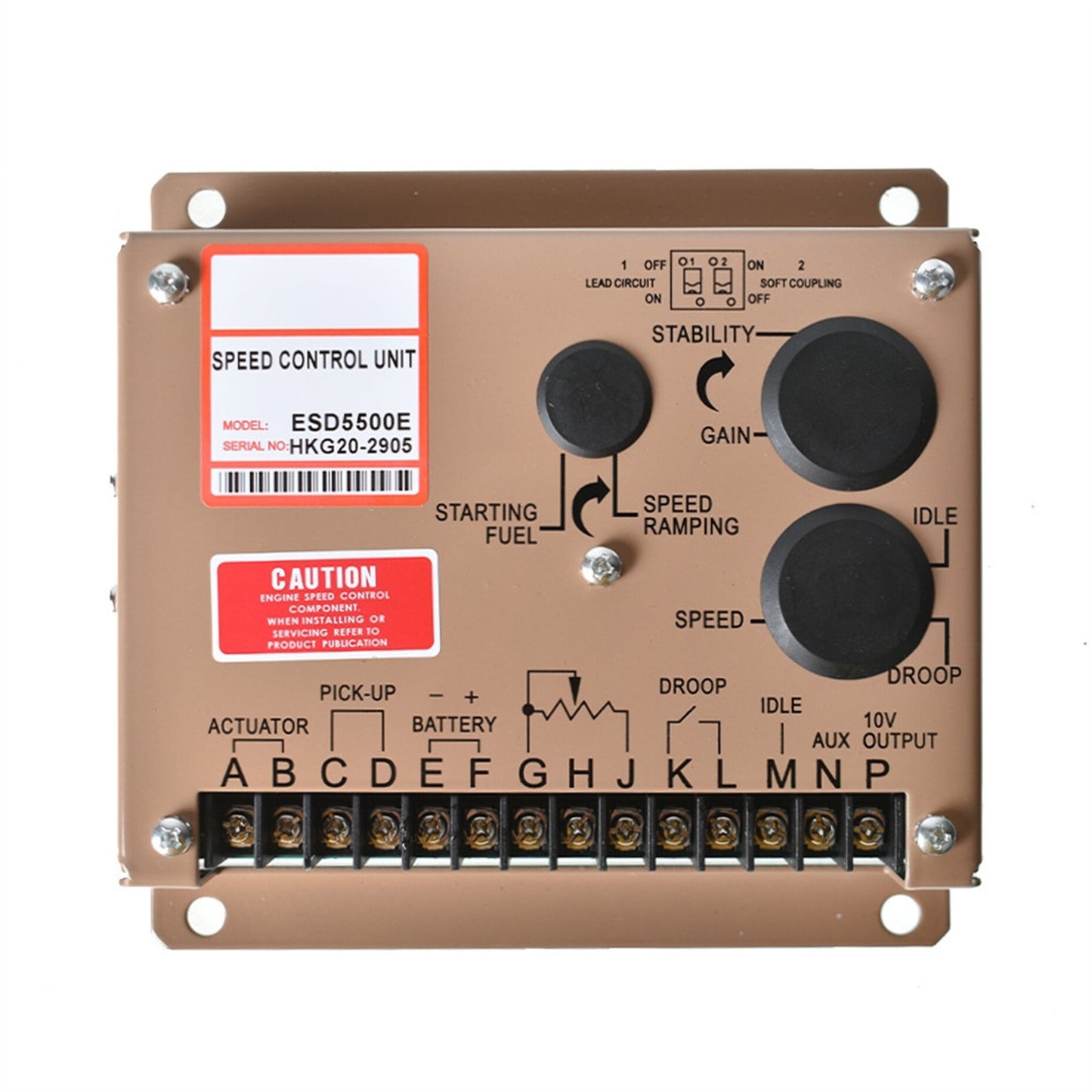

ESD5500E Electronic Engine Speed Controller Governor Generator Genset Parts
Specification: Isochronous Operation/Steady State Stability ± 0.25% or better Speed Range/Governor 1K-7.5K Hz continuous Speed Drift with Temperature ± 1% Maximun IDLE Adjustment 160±20Hz - 60% of set speed Droop adjustment Min.(K-L Jumpered) 15Hz ±6Hz per 1.0 A change Droop adjustment Max.(K-L Jumpered) 400Hz ±75Hz per 1.0 A change Droop Adj Max (K-L Jumpered) 875Hz ±75Hz per 1.0 A change Droop Adj Min (K-L Jumpered) 15Hz ±6Hz per 1.0 A change Speed Trim Range±200Hz Remote Variable Speed Range 500 -7.5Hz Terminal Sensitivity J: 100Hz., ±15Hz/Volt 5.0 K Impedance L: 735Hz., ± 60Hz/Volt 65 K Impedance N: 148Hz., ±10Hz/Volt 1Meg Impedance P: 10V DC Supply 20ma Max Speed Switch Adjustment Range 1000-10000Hz Environmental: Ambient Operating Temperature Range -40℃ to +85℃ Shock 20-100HZ 500mm/Sec Input power: Supply 12 or 24V DC Battery Systems(Transient and Reverse Voltage Protected) Power Consumption 50mA continuous plus actuator current Actuator Current Range 25℃-(Inductive Load) Min 2.5 Amps, Max 10 Amps continuous
Compatibility: ESD5500E Engine Speed Controller replacement for GAC matched actuators (not replacement for ACB2000 electronic actuators)
Features: Easy to install, High anti-interference and non-interference with other control devices
