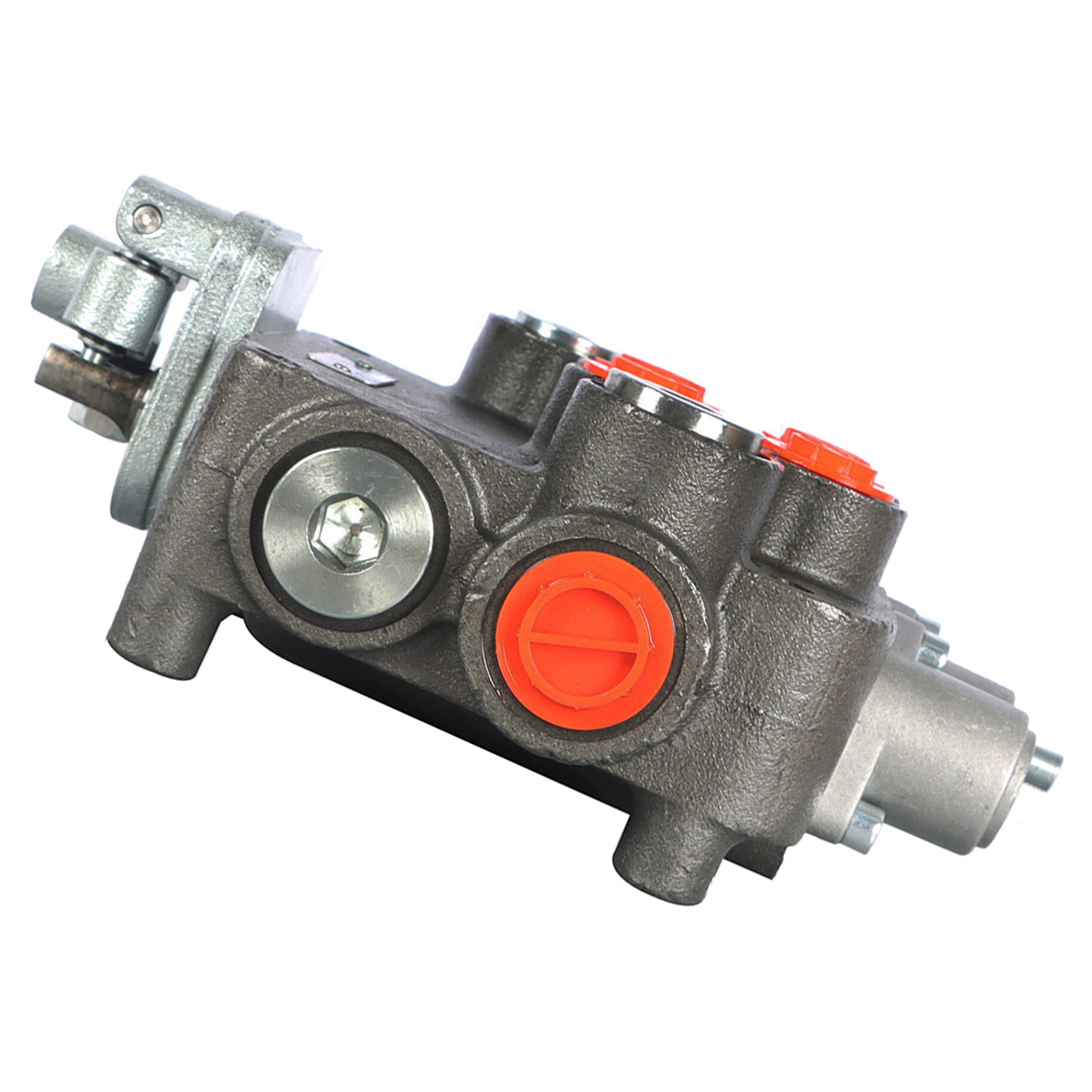

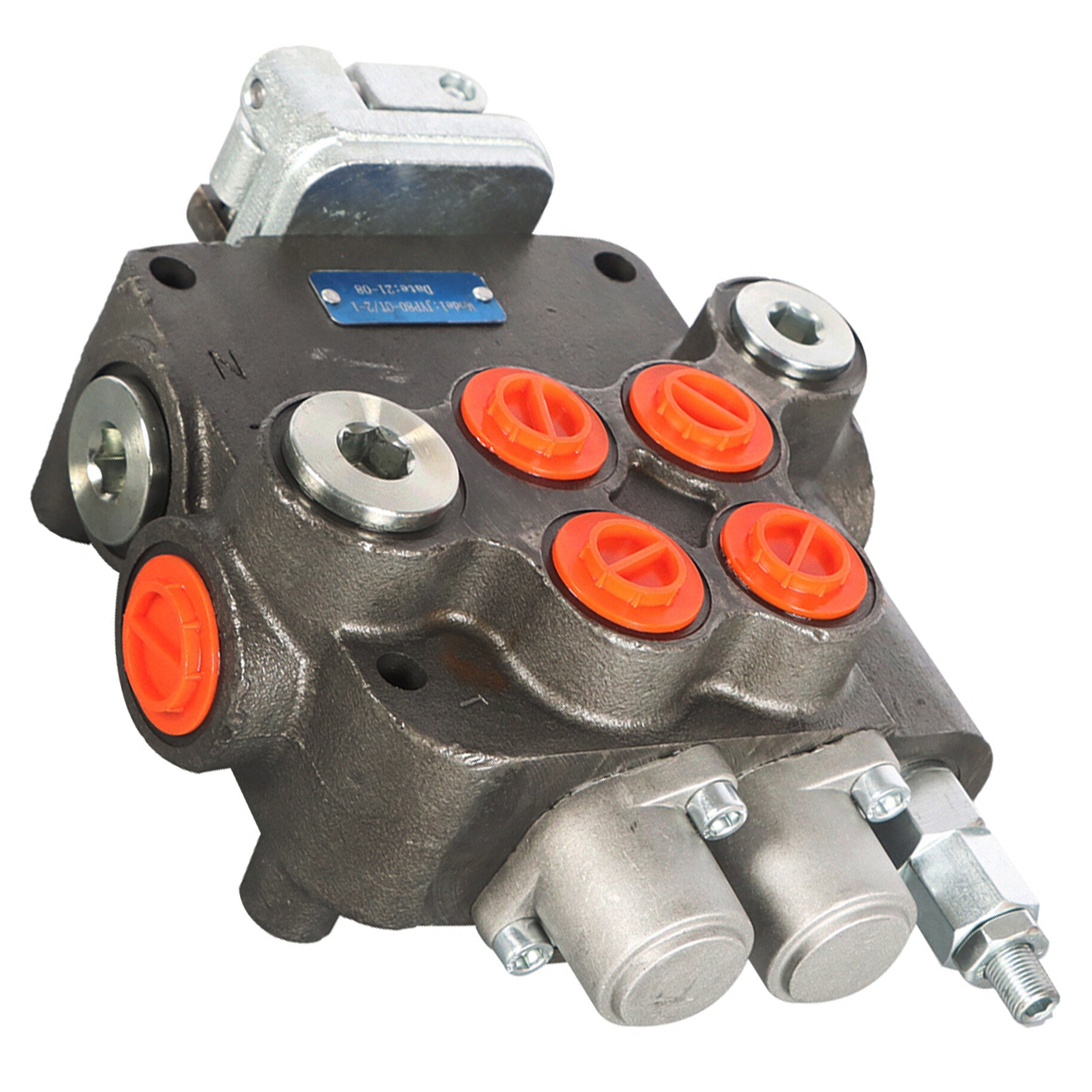

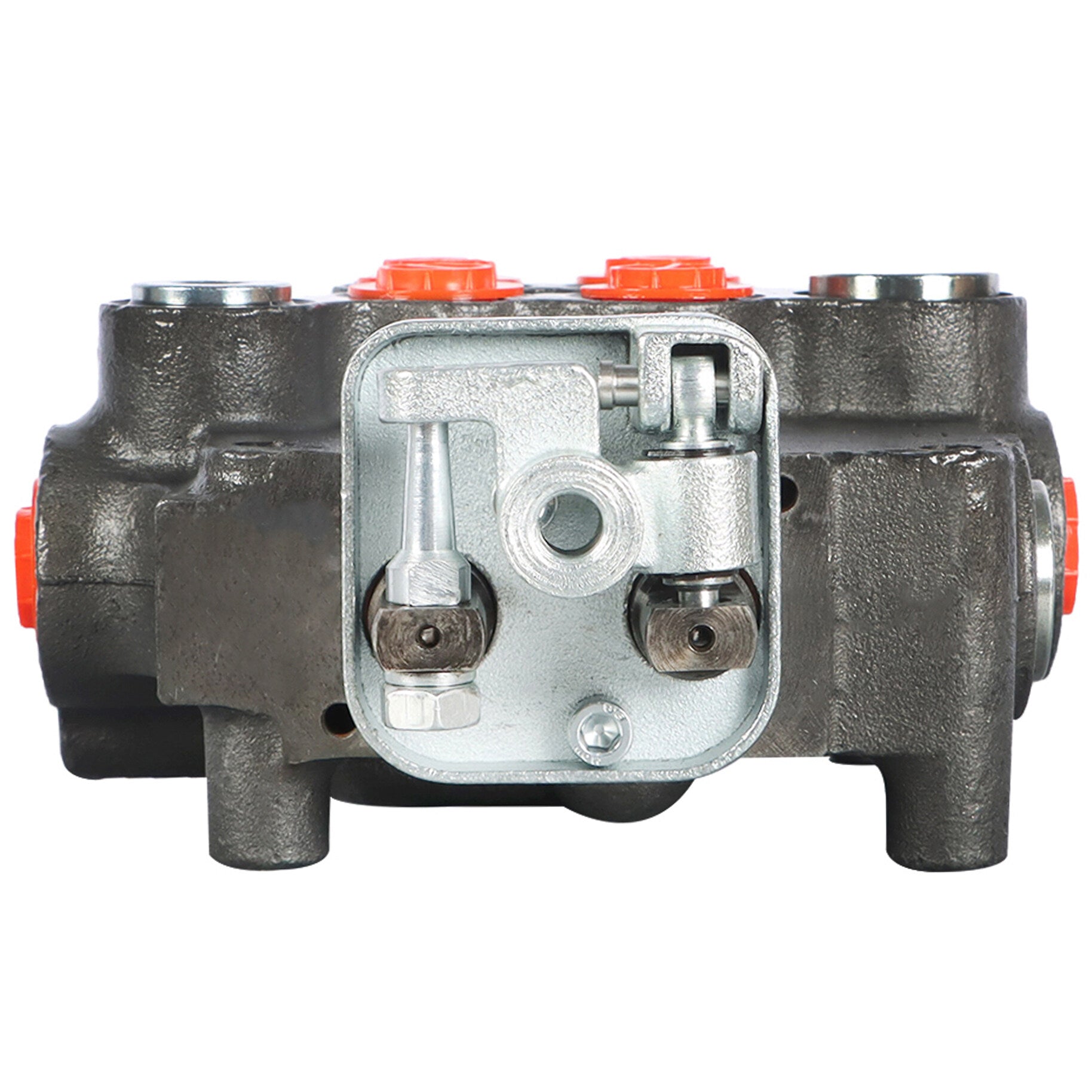

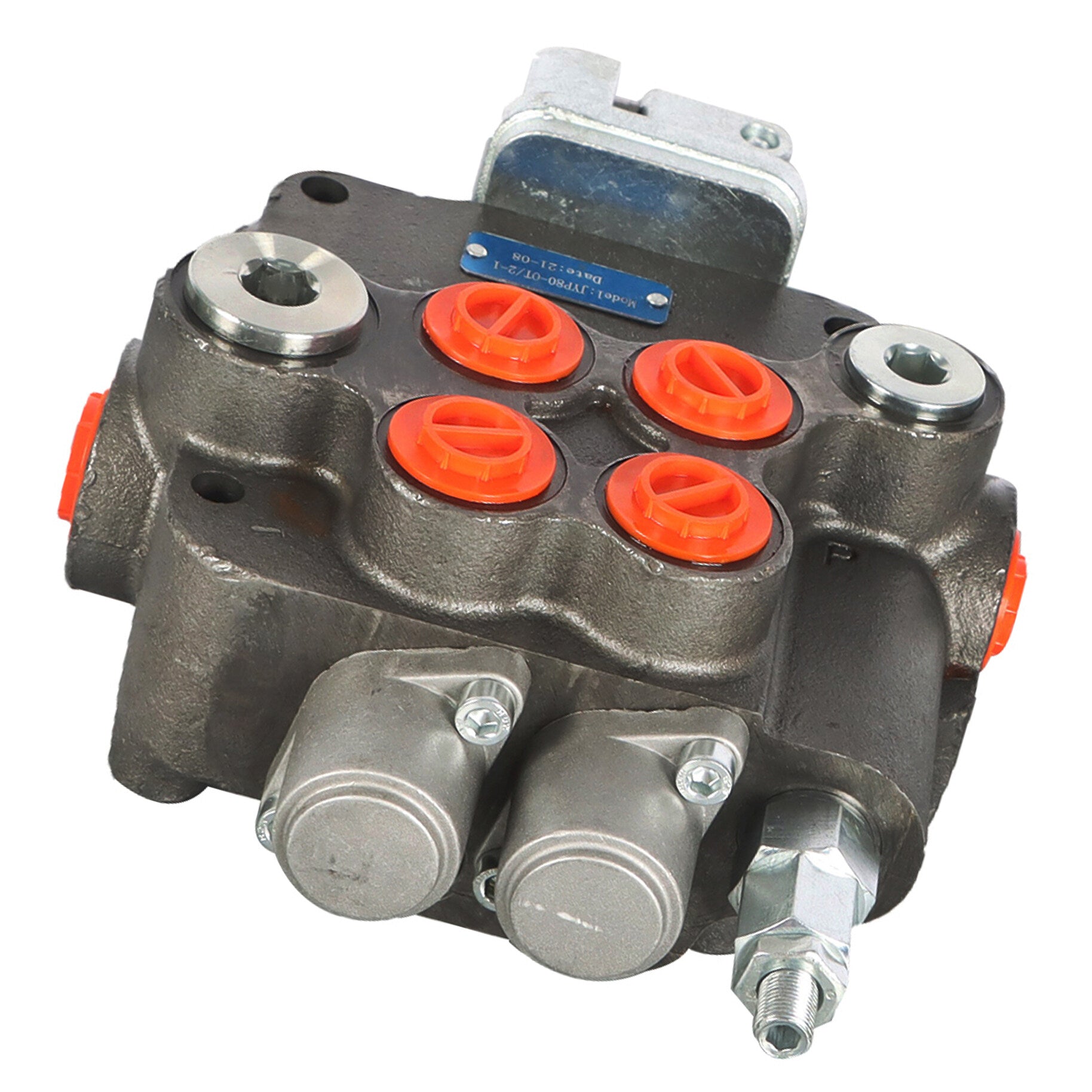

ALL-CARB Hydraulic Directional Control Valve for Tractor Loader w/ Joystick, 2 Spool, 21 GPM 3625 PSI SAE Ports

Specifications

Flow Rating: 21 GPM (80 l/min)

A & B Work Ports:? 10 SAE O-Ring (7/8"-14) Thread

Inlet Port: 10 SAE O-Ring (7/8"-14) Thread

Outlet Port: 12 SAE O-Ring (1-1/16") Thread

Max Operating Pressure: P = 3625 PSI, T = 725 PSI, A & B = 4350 PSI

3-5/16" Mounting Holes

Features

Spring Return

Inner Check/Relief Valve

The 2 spools hydraulic directional control valve with joysticks. The adjustable release valve and durable cast iron body are easy to use. All spools are standard double acting with spring return in the neutral position.

Package Content

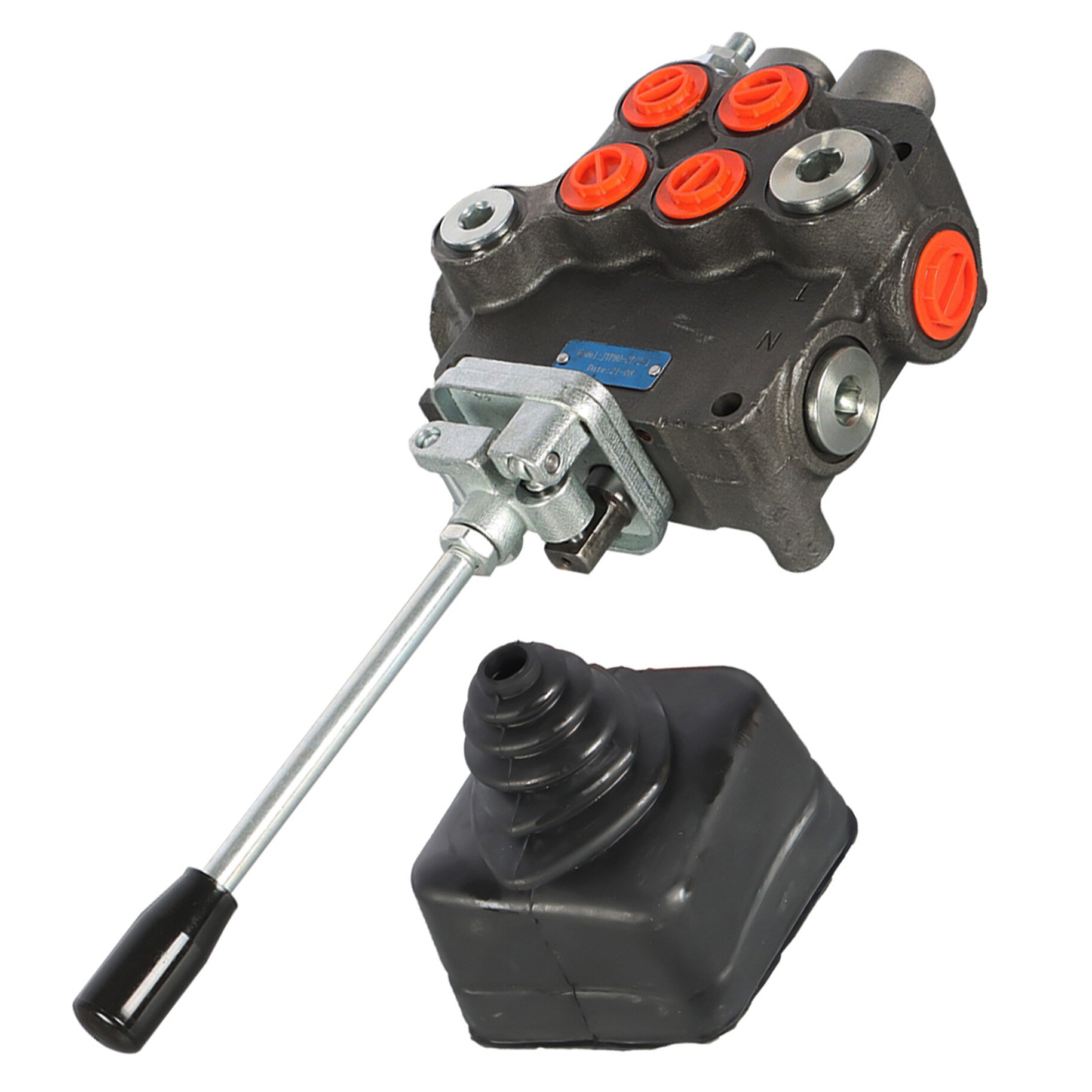

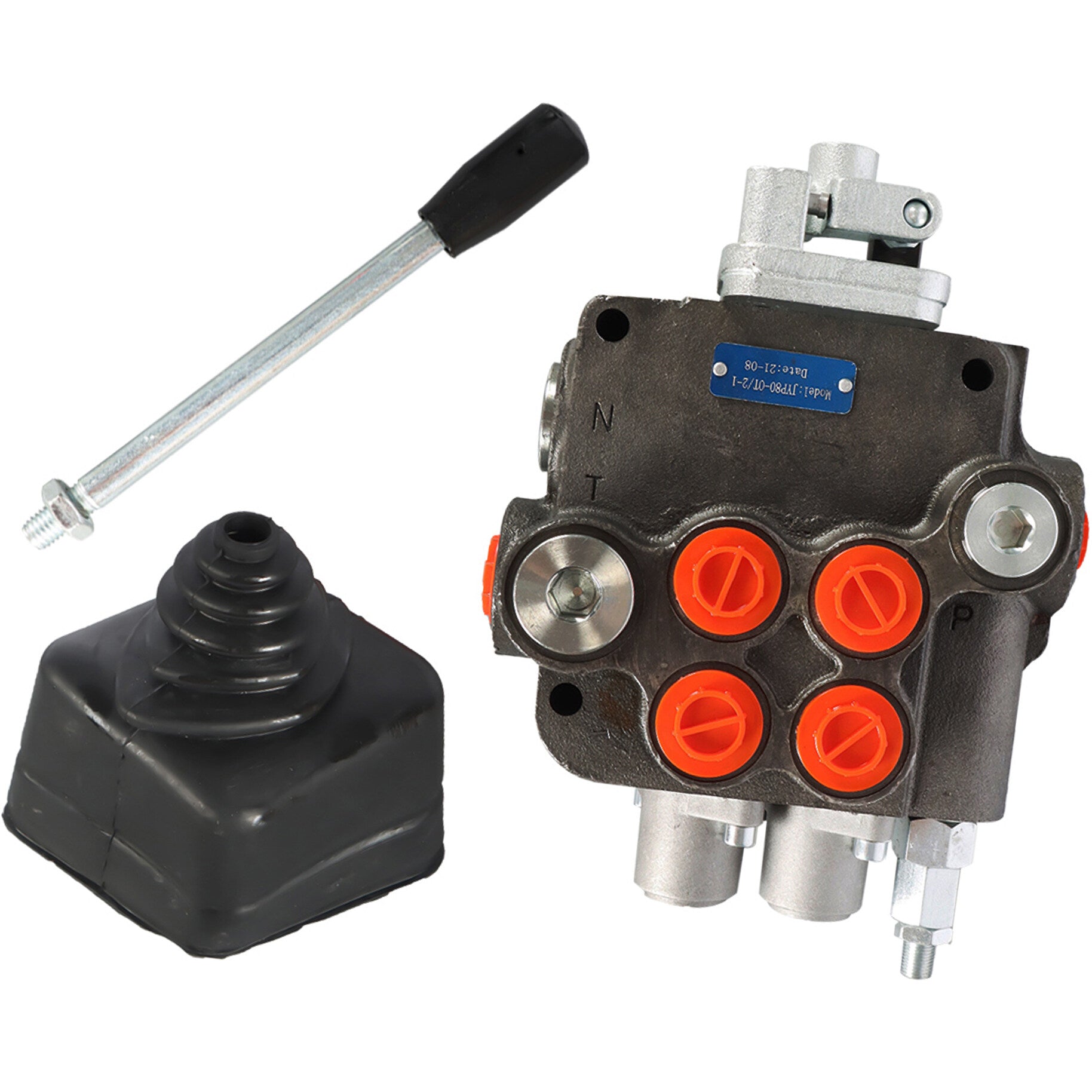

1 x 2 Spool Hydraulic Joystick Control Valve 21gpm, Double Acting Cylinder Spool
