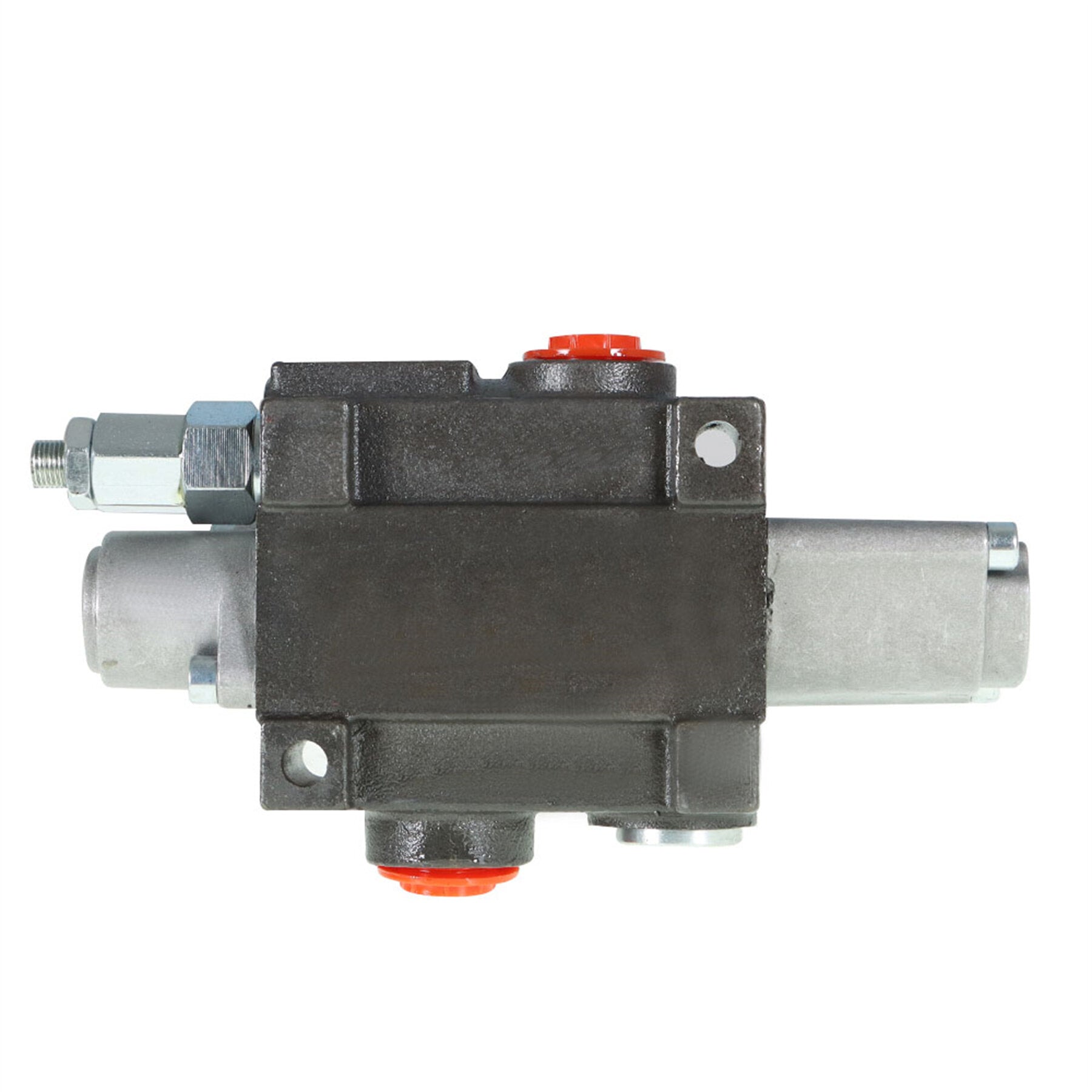

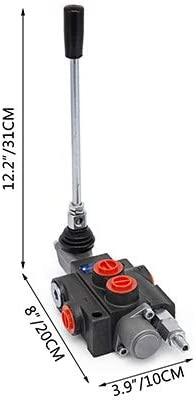

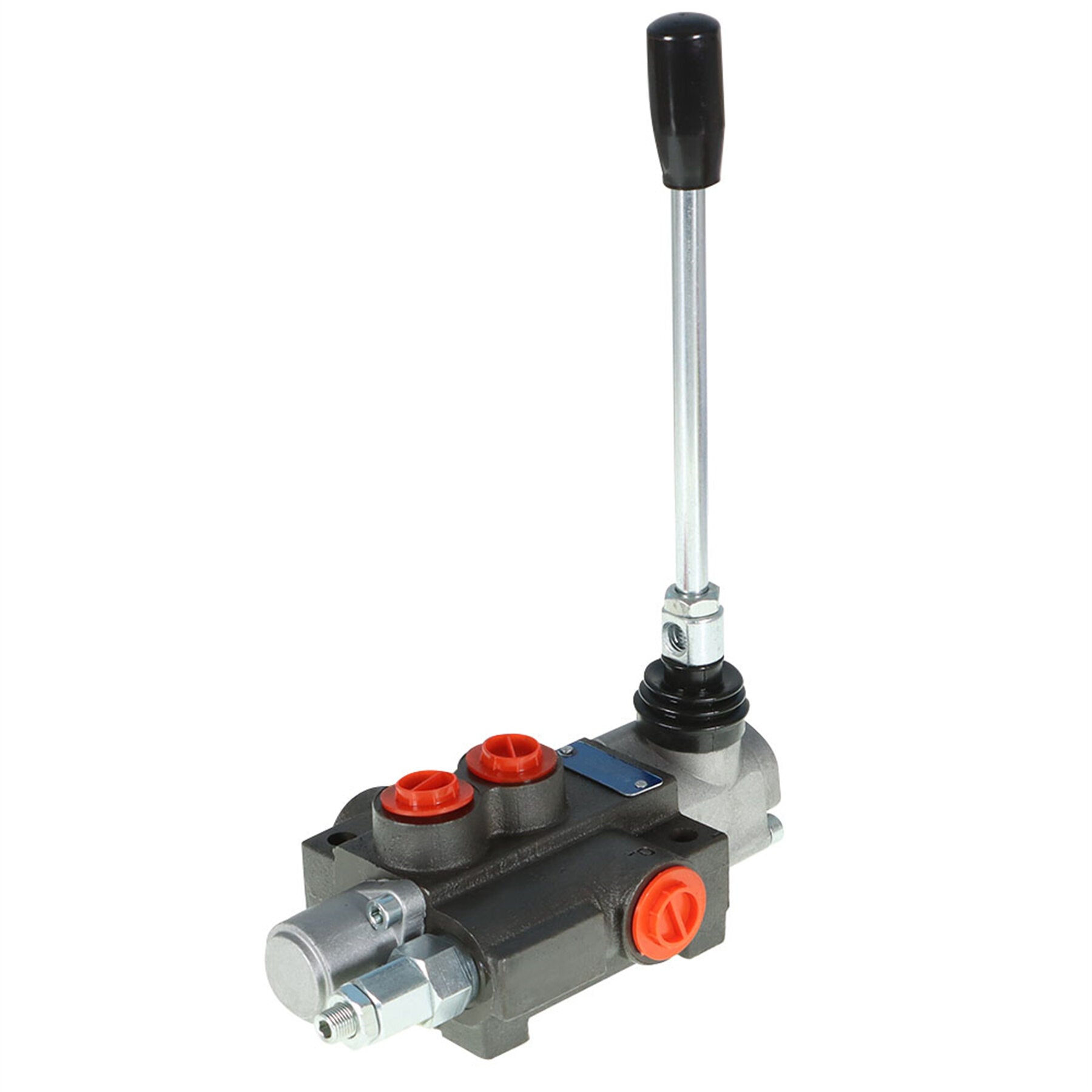

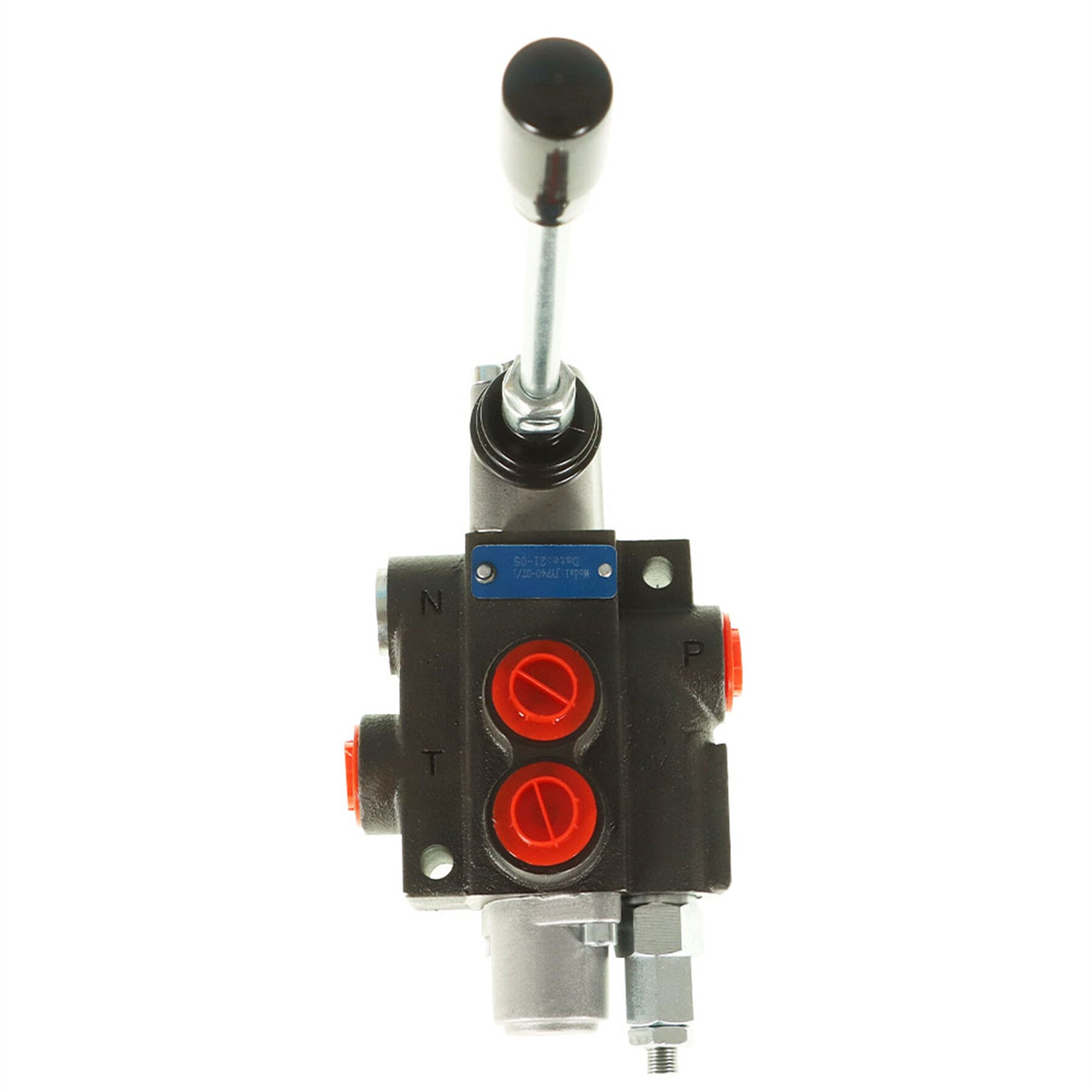

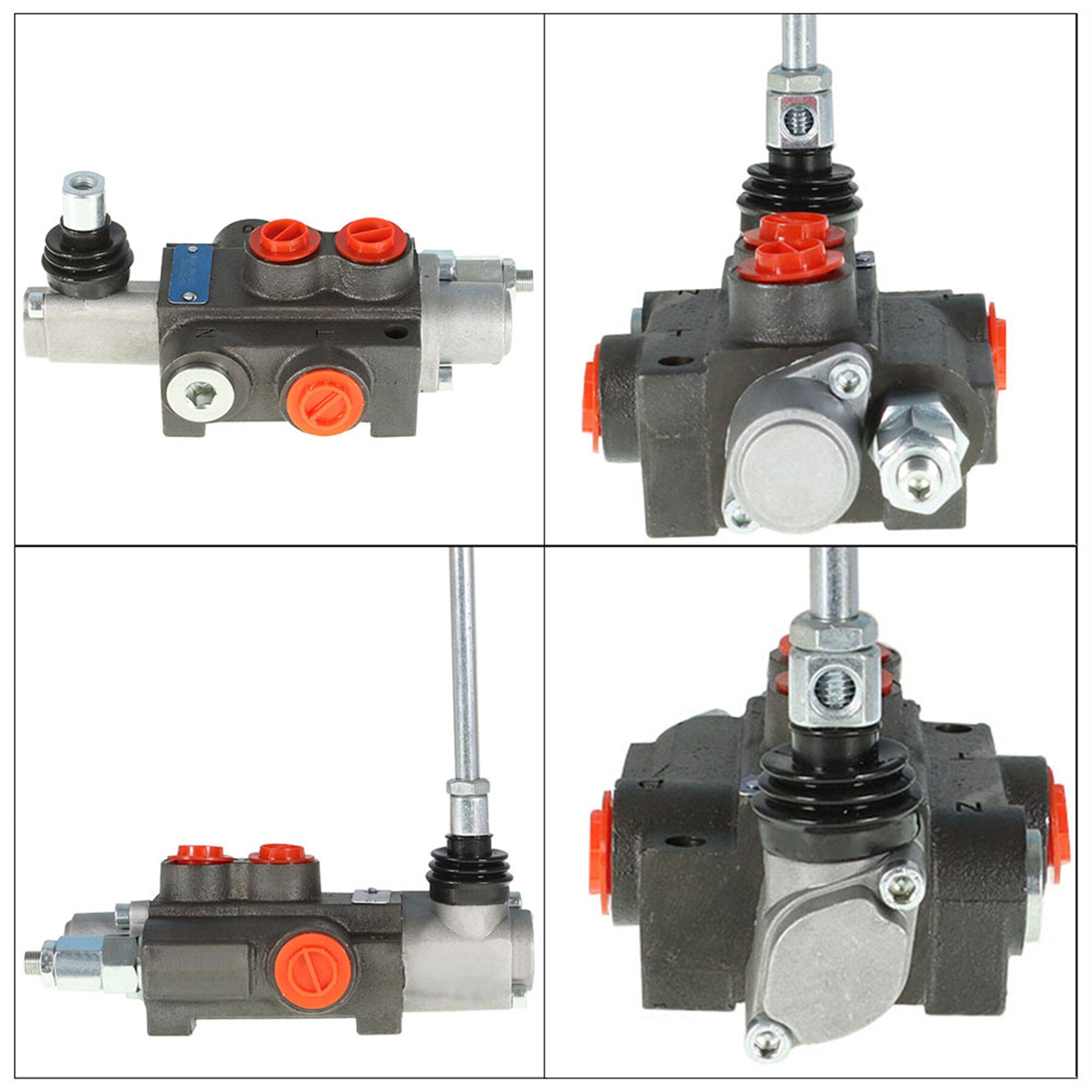

ALL-CARB Hydraulic Valve 1 Spool Hydraulic Directional Control Valve Double Acting Valve 11 GPM 3600 PSI SAE Ports for Tractors Loaders Tanks

Hydraulic Valve 1 Spool Hydraulic Directional Control Valve Double Acting Valve 11 GPM 3600 PSI SAE Ports for Tractors Loaders Tanks


Specification:
?? Max operating pressure: 3600 PSI
?? Nominal flow: 11gpm (40l/min)
?? Center system: Open
?? Inlet Port: SAE 7/8-14
?? Outlet Port: SAE 7/8-14
?? Working Ports: SAE7/8-14
? Relief valve: Adjustable


Features:
?The relief valve range can reach up to 3600 PSI and the maximum flow is up to 11 GPM.
?All spools are standard double acting with spring return to the neutral position which is ideal for double-acting cylinders.
?The check valve inside the valve body is to ensure the hydraulic oil not to be returned
?The relief valve inside the valve body can adjust the hydraulic system working pressure


Package Includes:
?1 x 1 spool 11GPM hydraulic directional control valve
