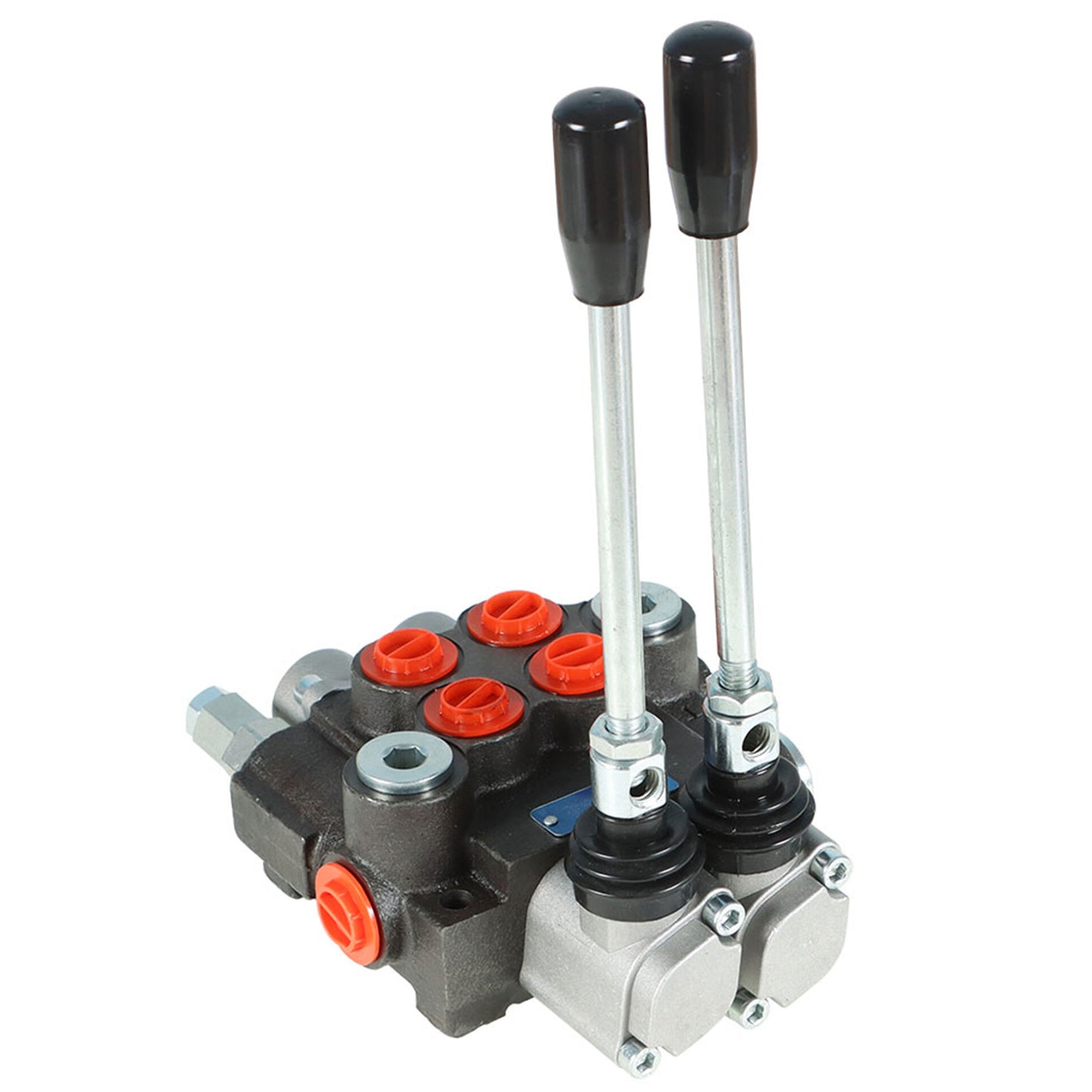

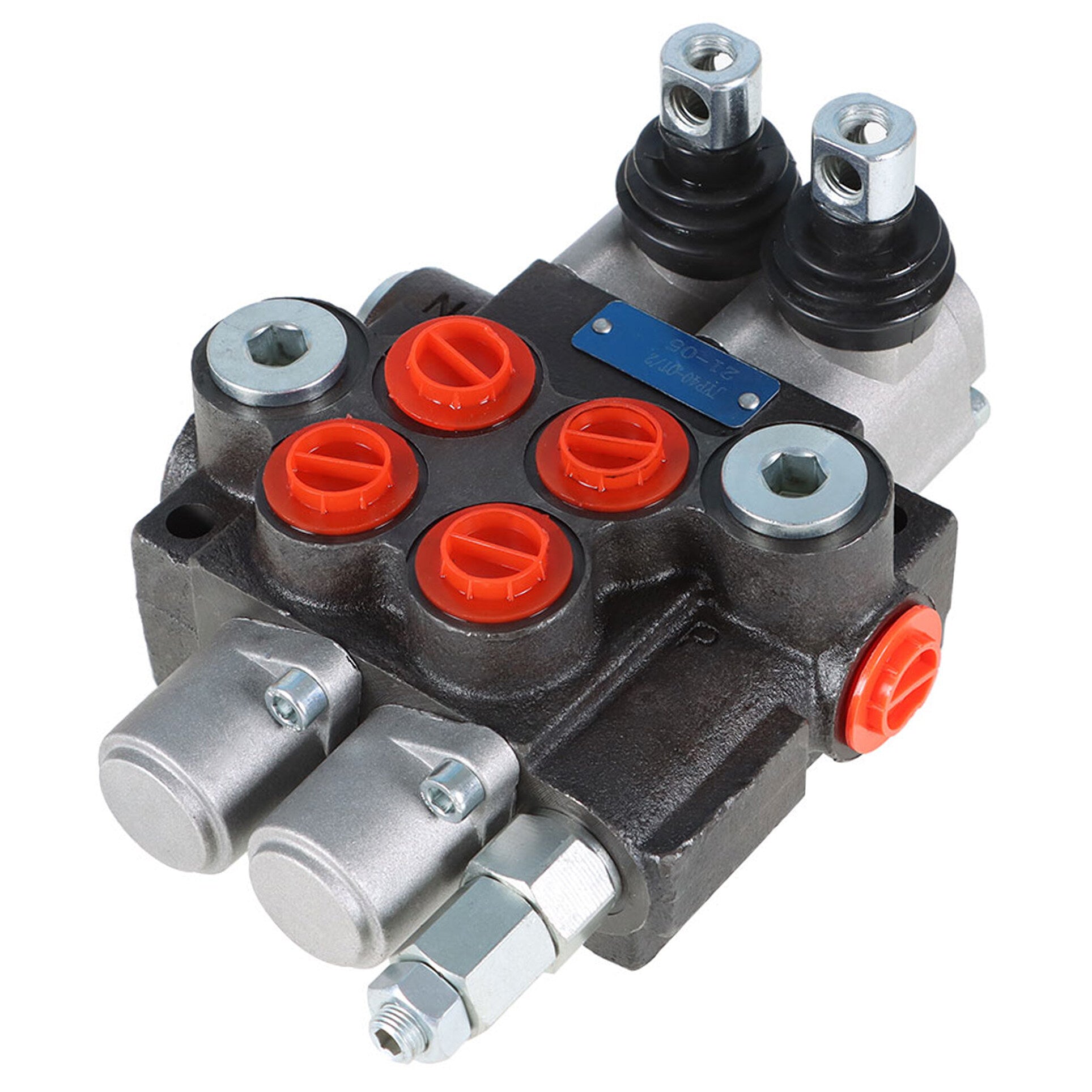

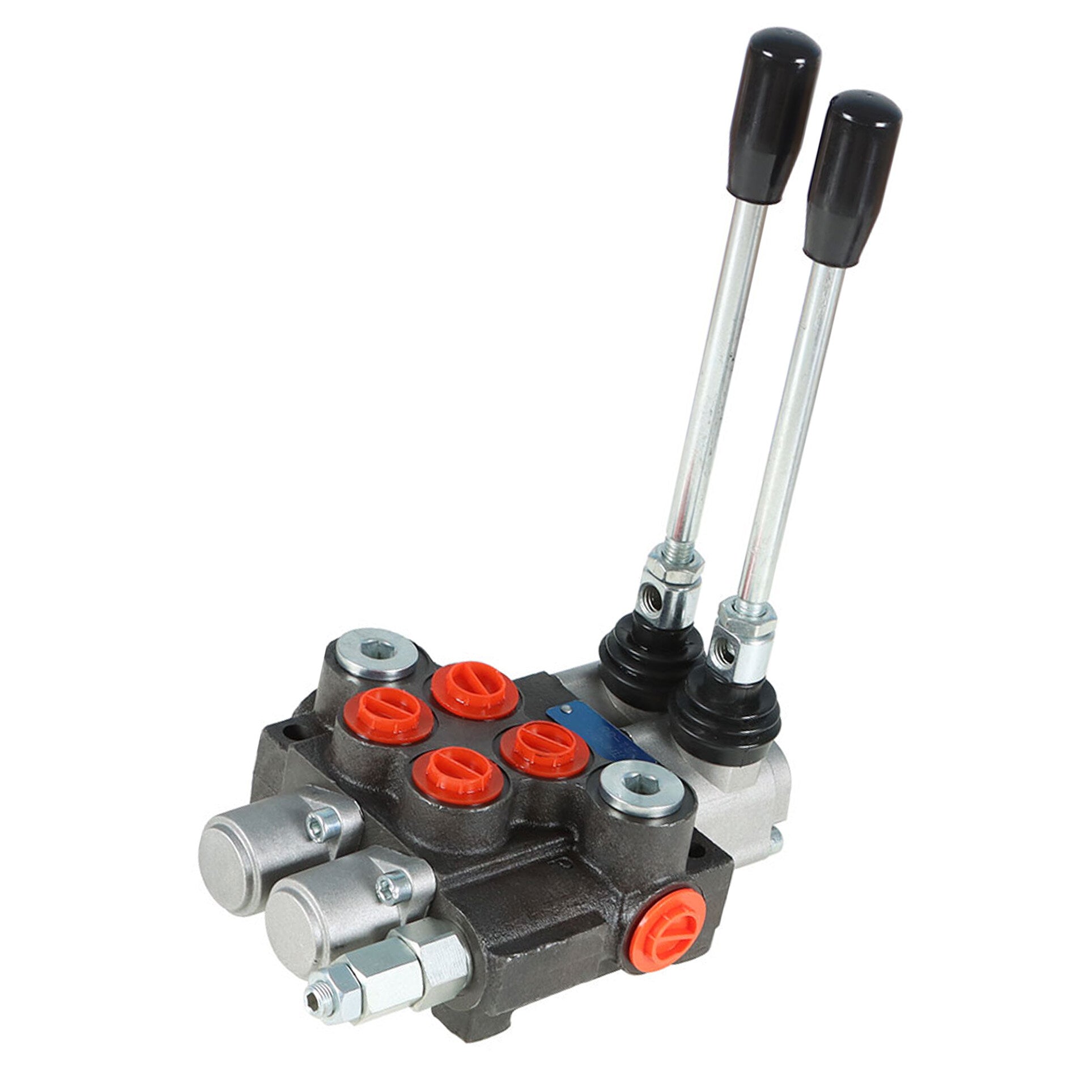

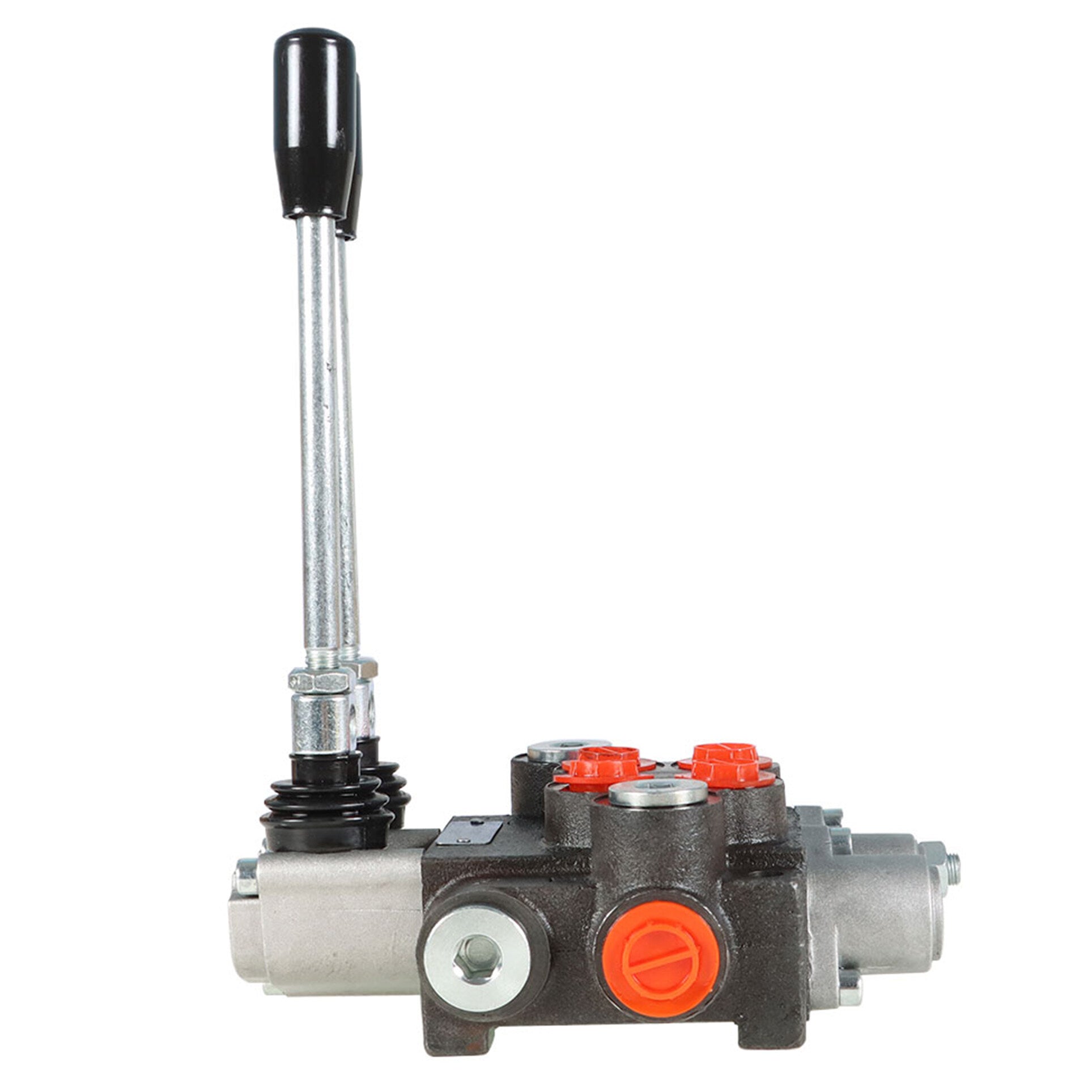

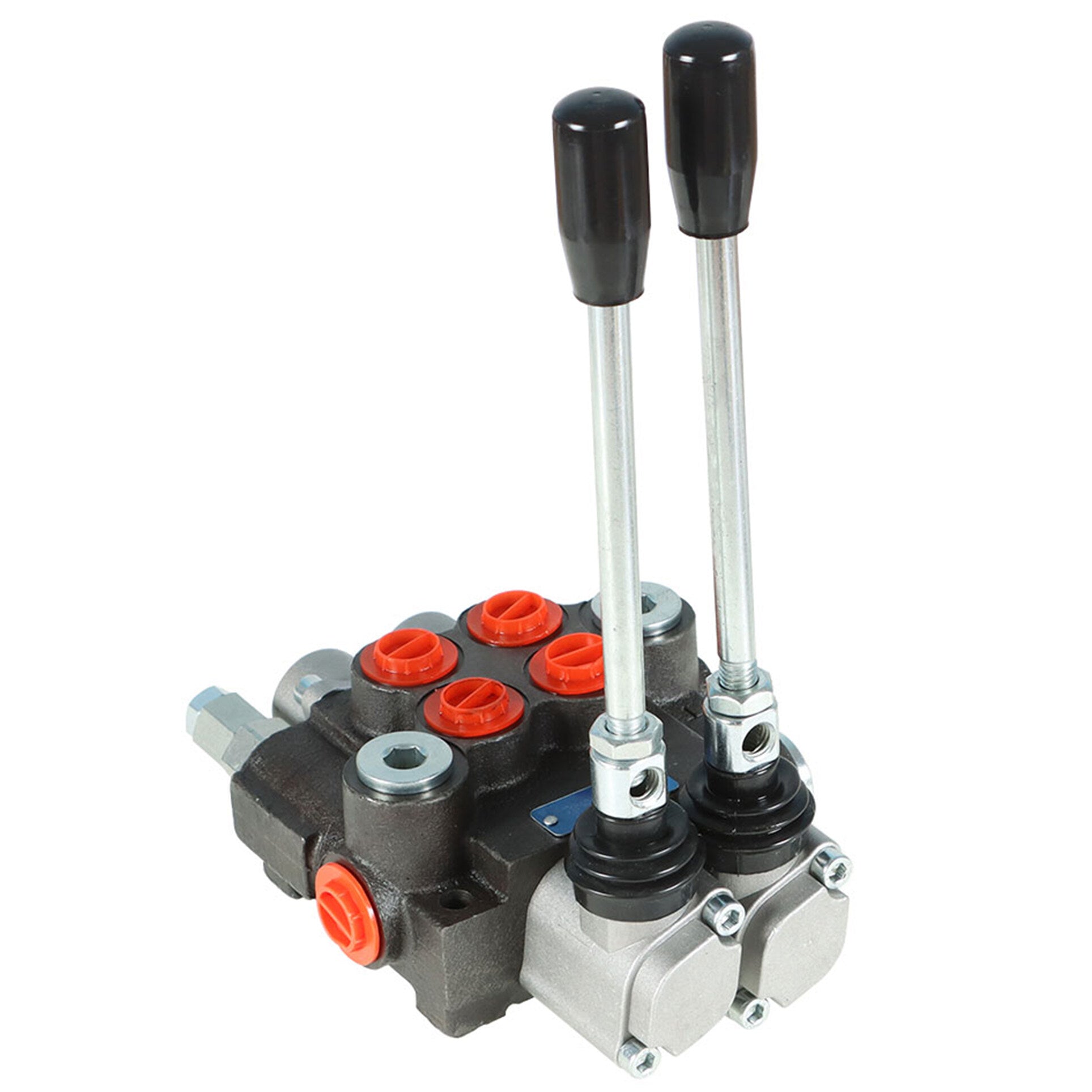

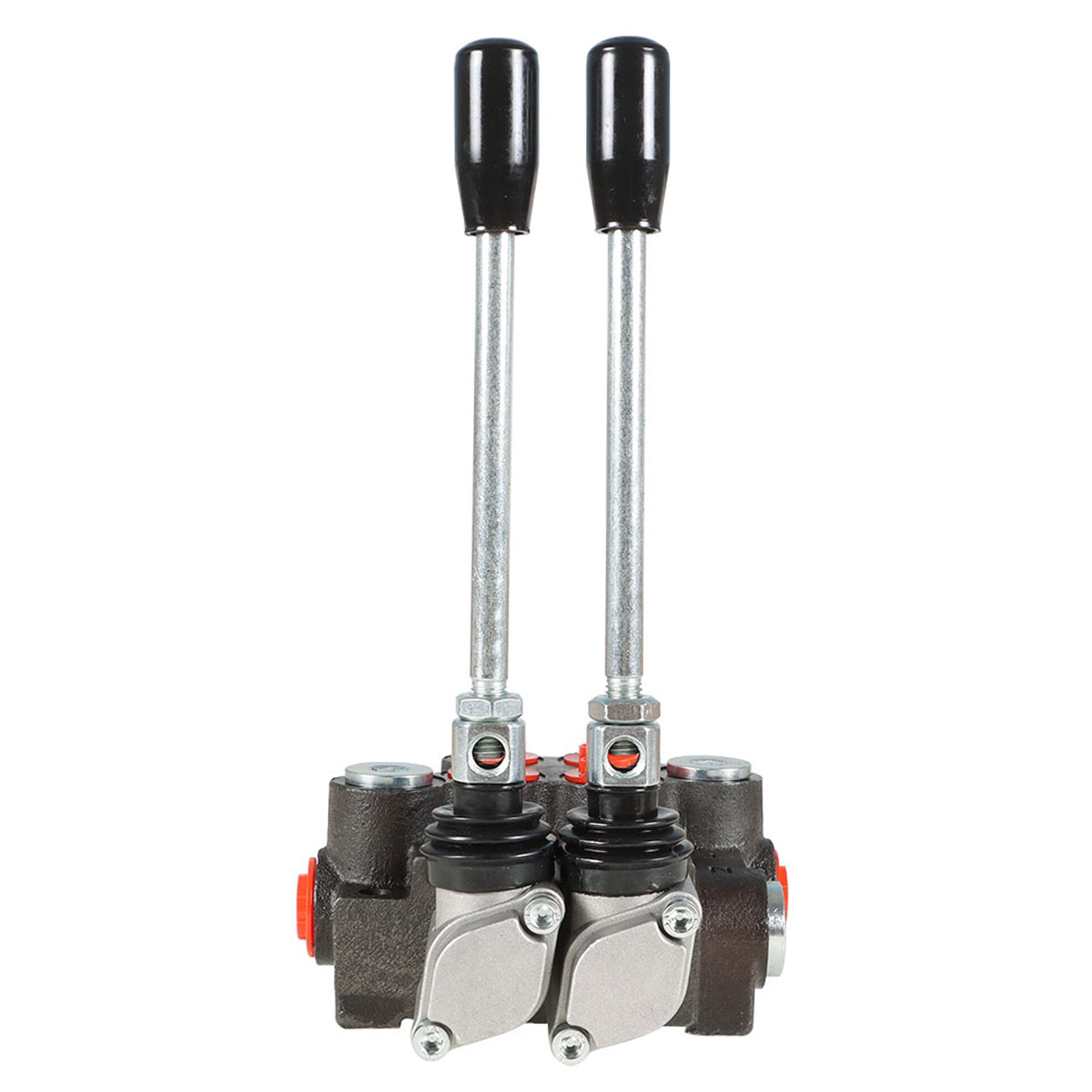

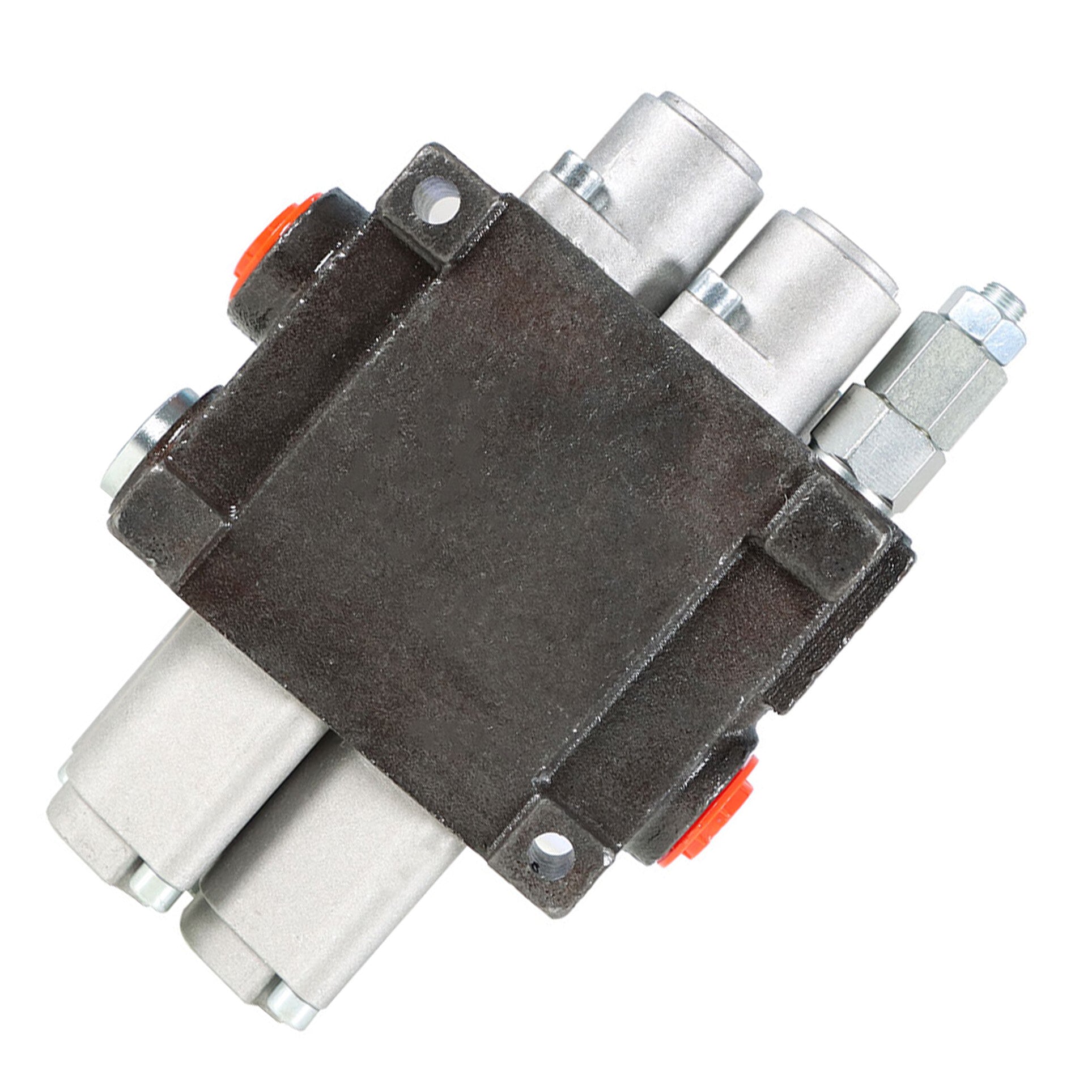

Hydraulic Valve 2 Spool Hydraulic Directional Control Valve Double Acting Control Valve 11 GPM 3625 PSI SAE Ports
Features:
Max Operating Pressure: P = 3625 PSI, T = 725 PSI, A & B = 4350 PSI
Flow Rating: 11 GPM (40 l/min)
A & B Work Ports: 10 SAE O-Ring (7/8"-14) Thread
Inlet Port: 10 SAE O-Ring (7/8"-14) Thread
Outlet Port: 10 SAE O-Ring (7/8"-14) Thread
Advantages:
2 Spool valve with compact design allows for installations in tight areas
All spools are standard double acting with spring return to neutral position which are ideal for double acting cylinders
Used for open center systems (pump to tank flow) - closed center option available
Precision ground and hard chrome-plated spools assure a long life
High-tensile cast iron monoblock construction
Vertical or horizontal handle mount
Adjustable Relief Valve Range: 1500 to 3625 PSI
Used as motor or single-acting spool possible
