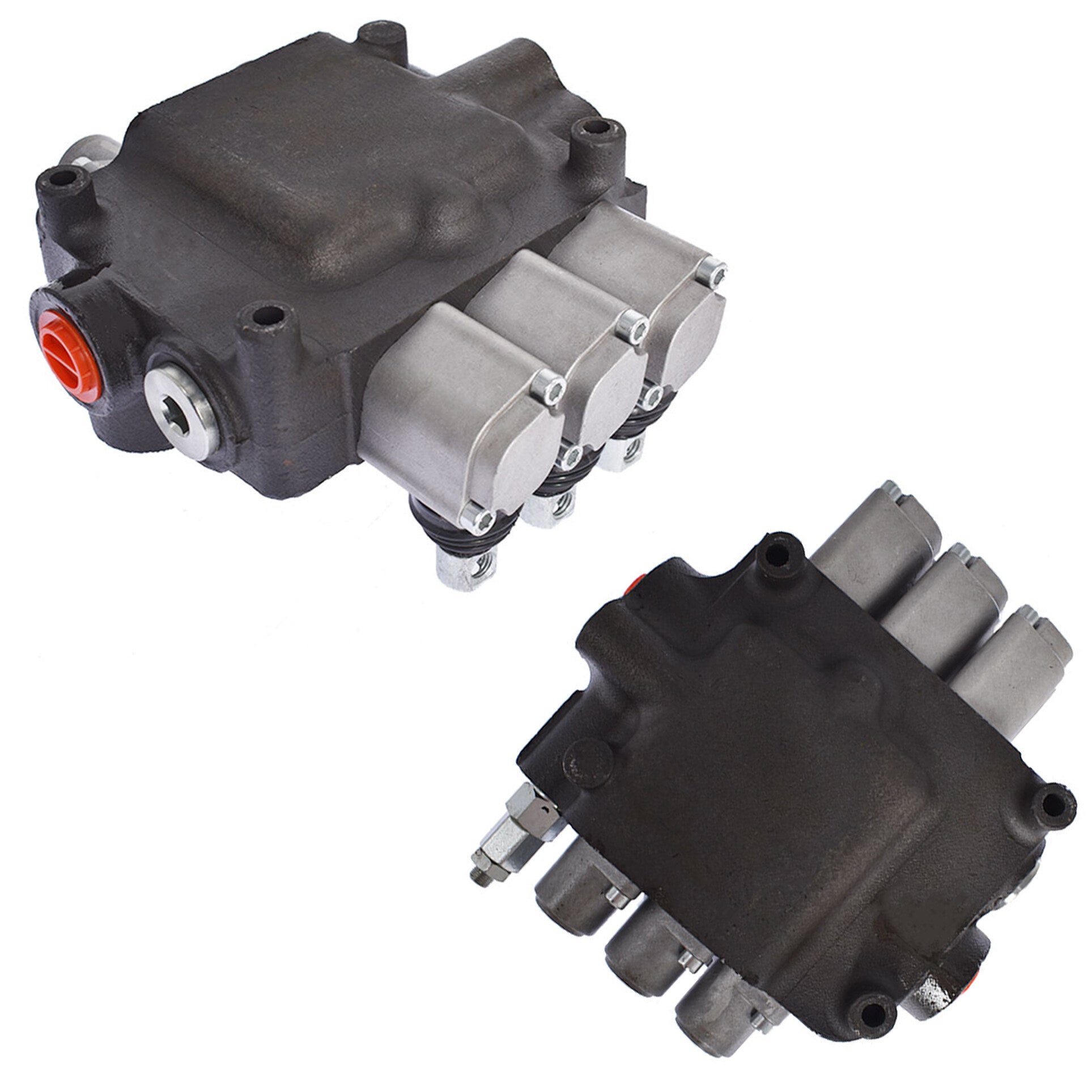

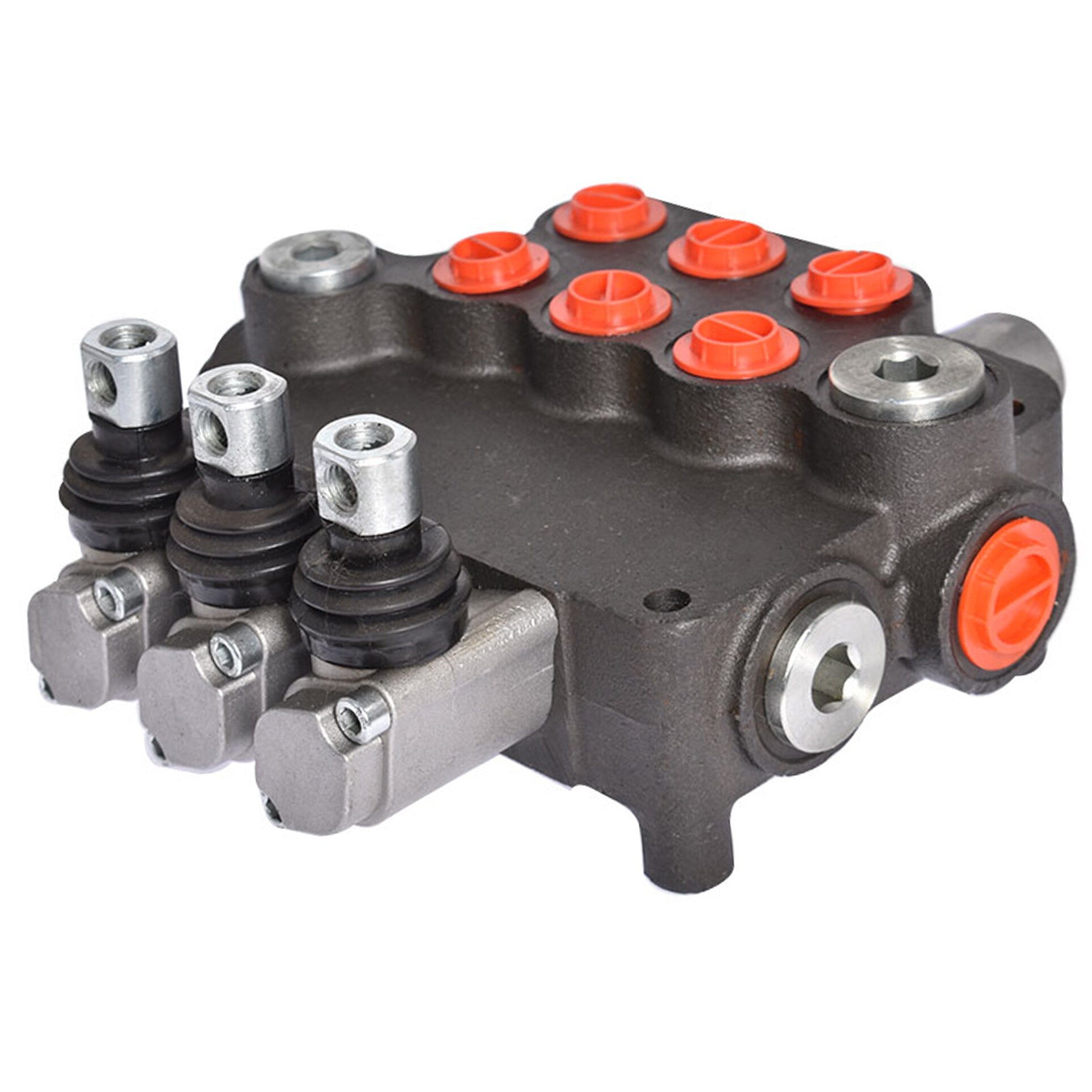

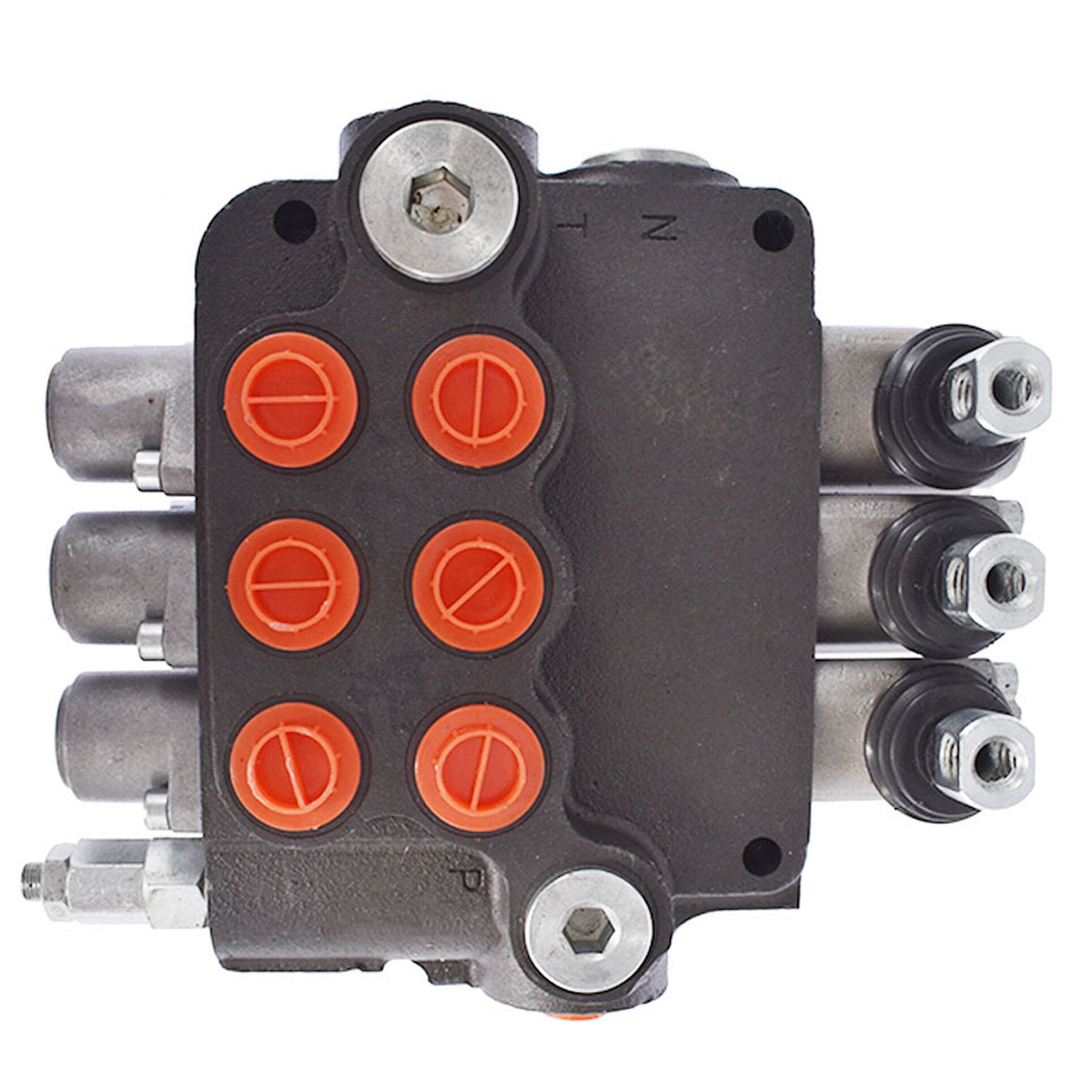

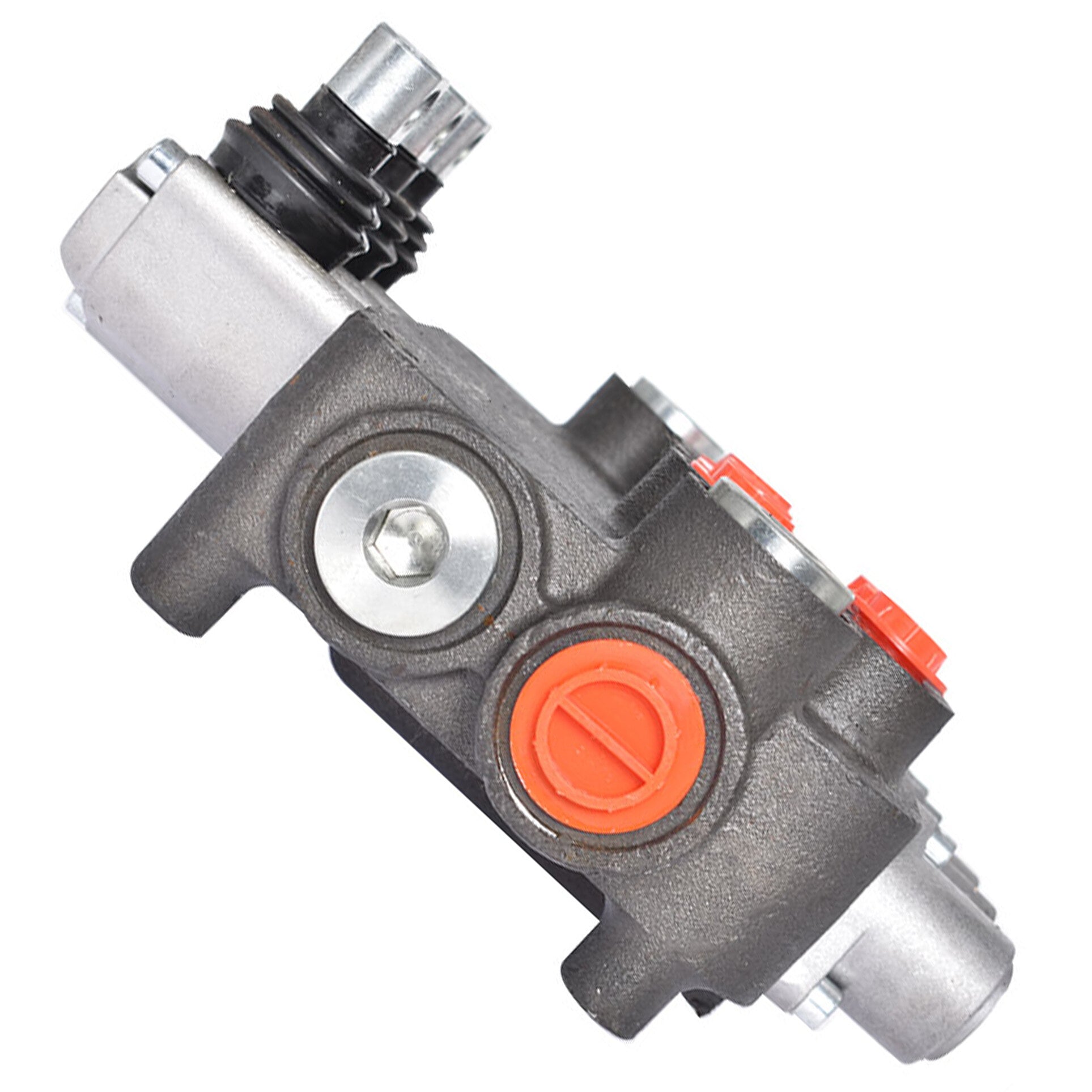

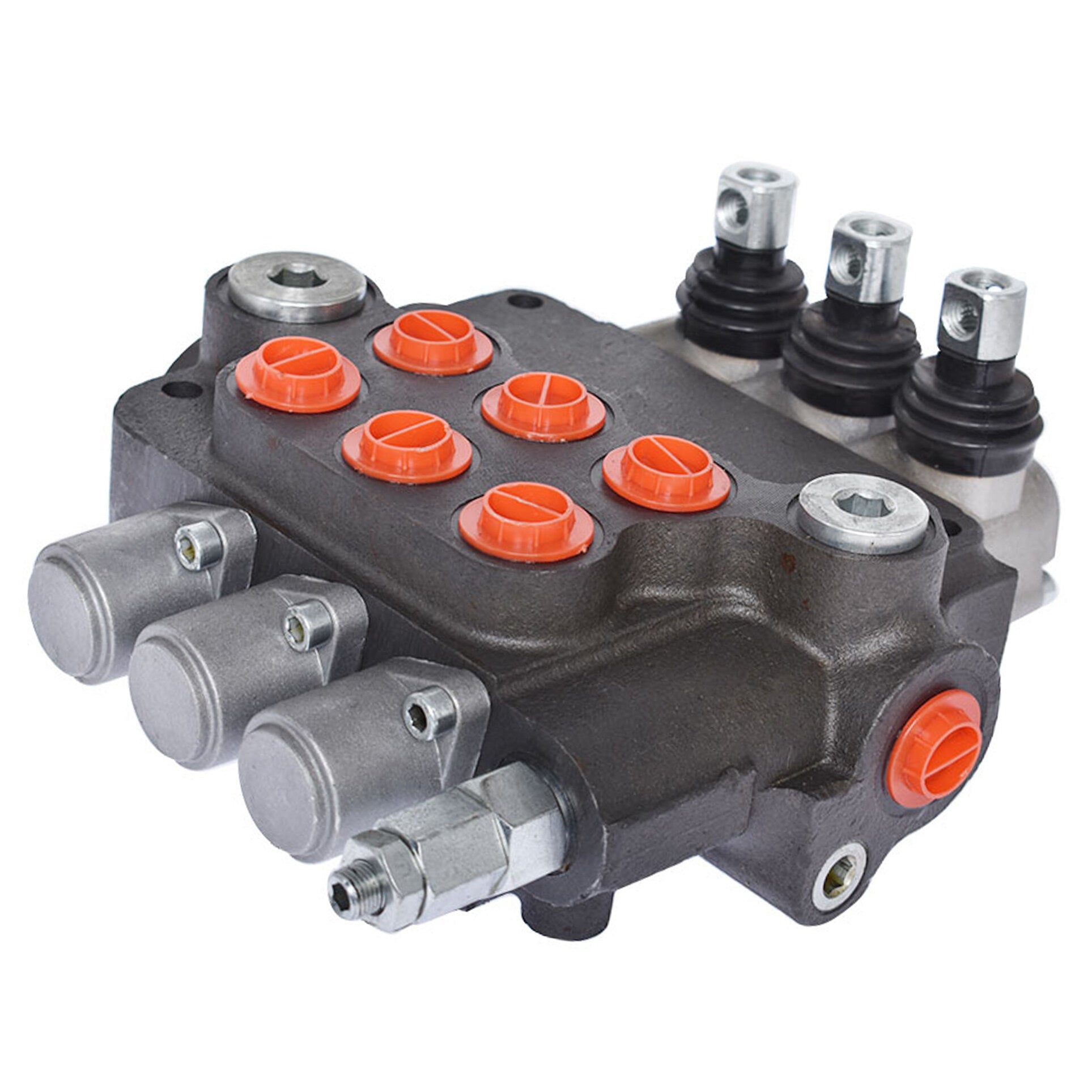

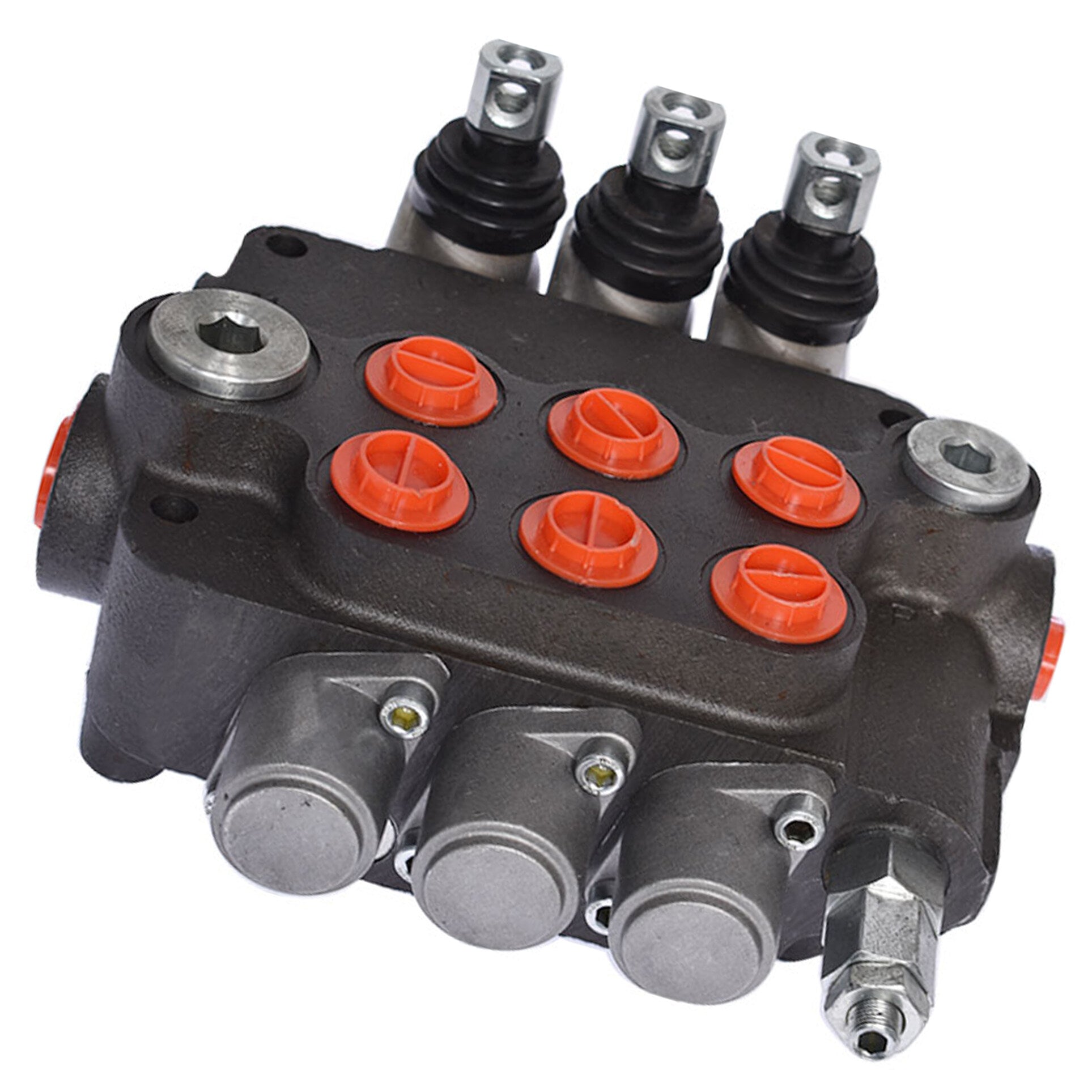

ALL-CARB Hydraulic Valve 3 Spool Hydraulic Directional Control Valve Double Acting Control Valve 21 GPM 3625 PSI SAE Ports

Hydraulic Valve 3 Spool Hydraulic Directional Control Valve Double Acting Control Valve 21 GPM 3625 PSI SAE Ports

Features:

Flow Rating: 21 GPM

3625 PSI MAX Pressure

A & B Work Ports:? 10 SAE O-Ring (7/8"-14) Thread

Inlet Port: 10 SAE O-Ring (7/8"-14) Thread

Outlet Port: 12 SAE O-Ring (1-1/16") Thread

Advantages:

High-tensile cast iron monoblock construction

Vertical or horizontal handle mount

3 Spool valve with compact design allows for installations in tight areas

Precision ground and hard chrome-plated spools assure a long life

All spools are standard double acting with spring return to neutral position which are ideal for double acting cylinders

Used for open center systems (pump to tank flow)
