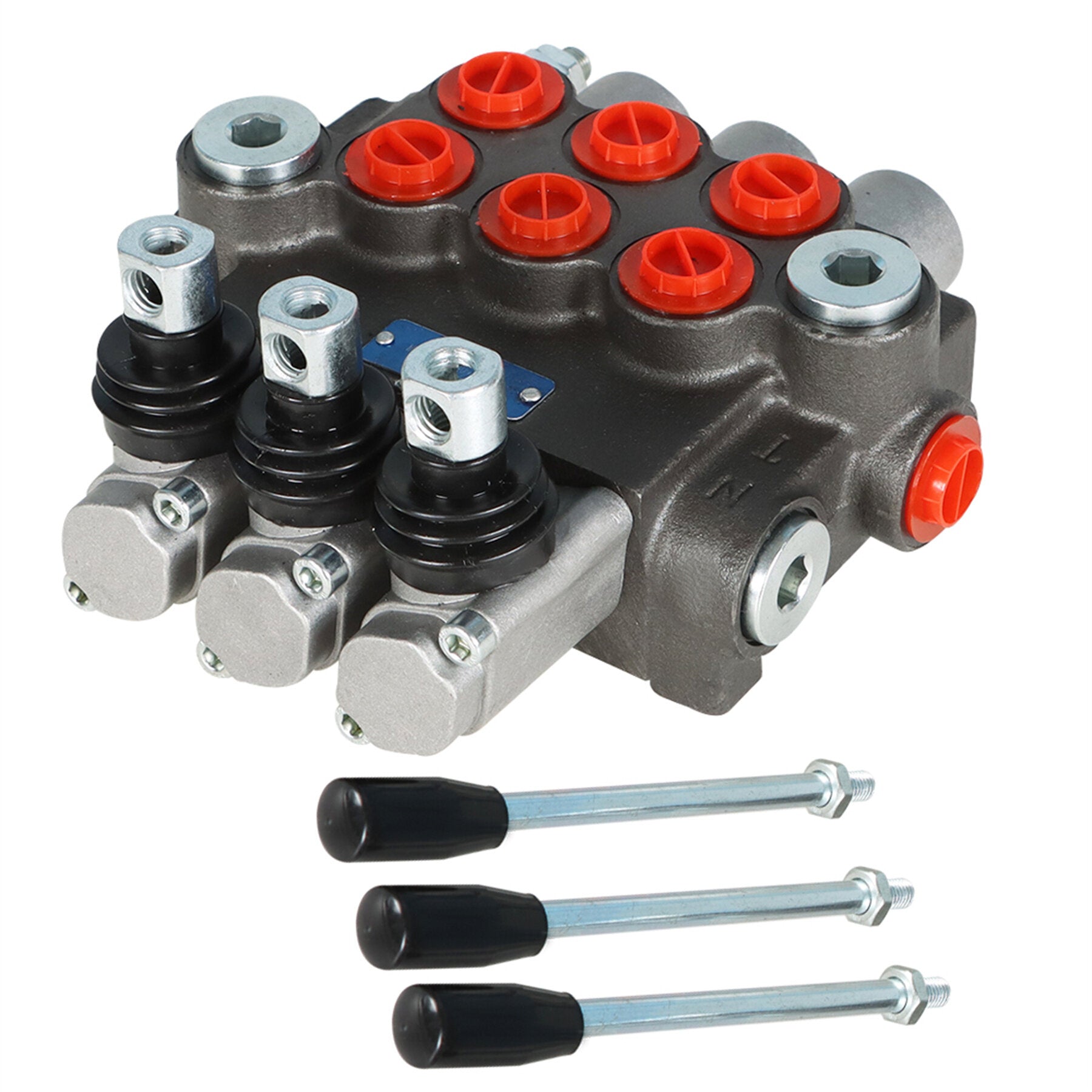

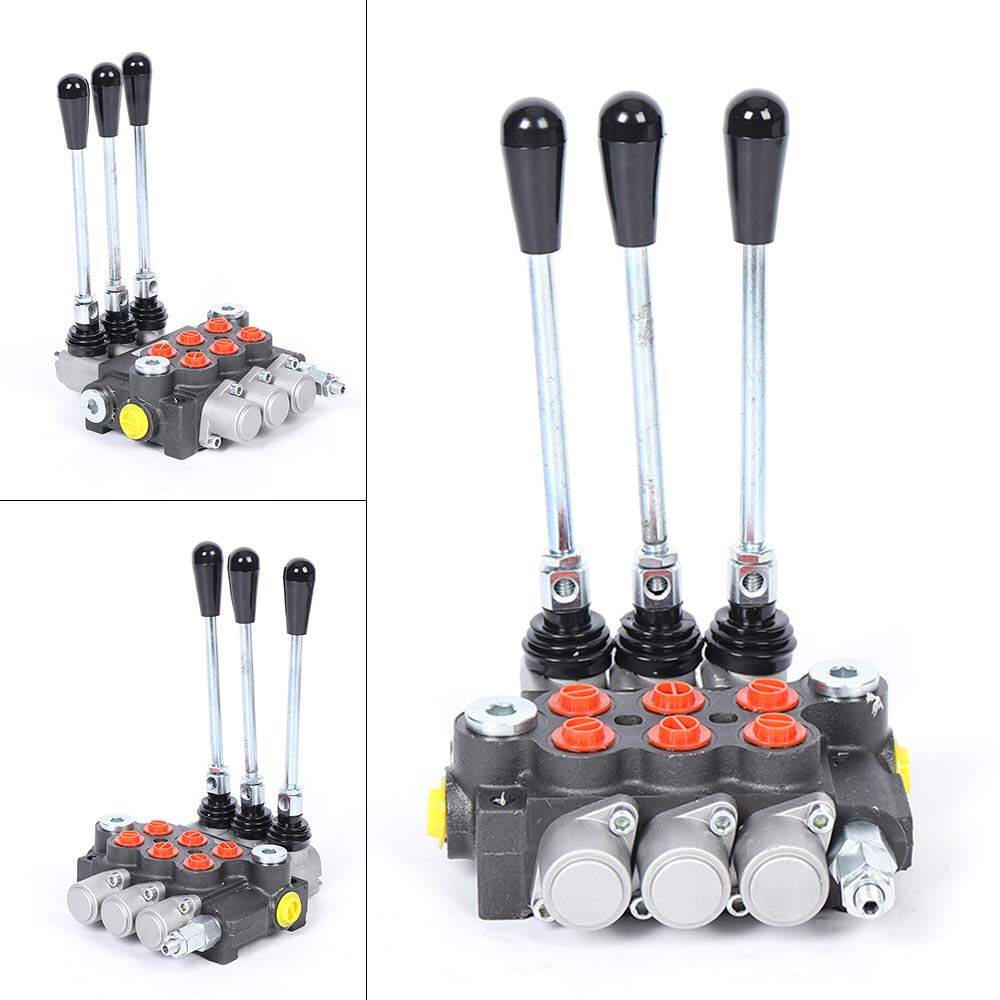

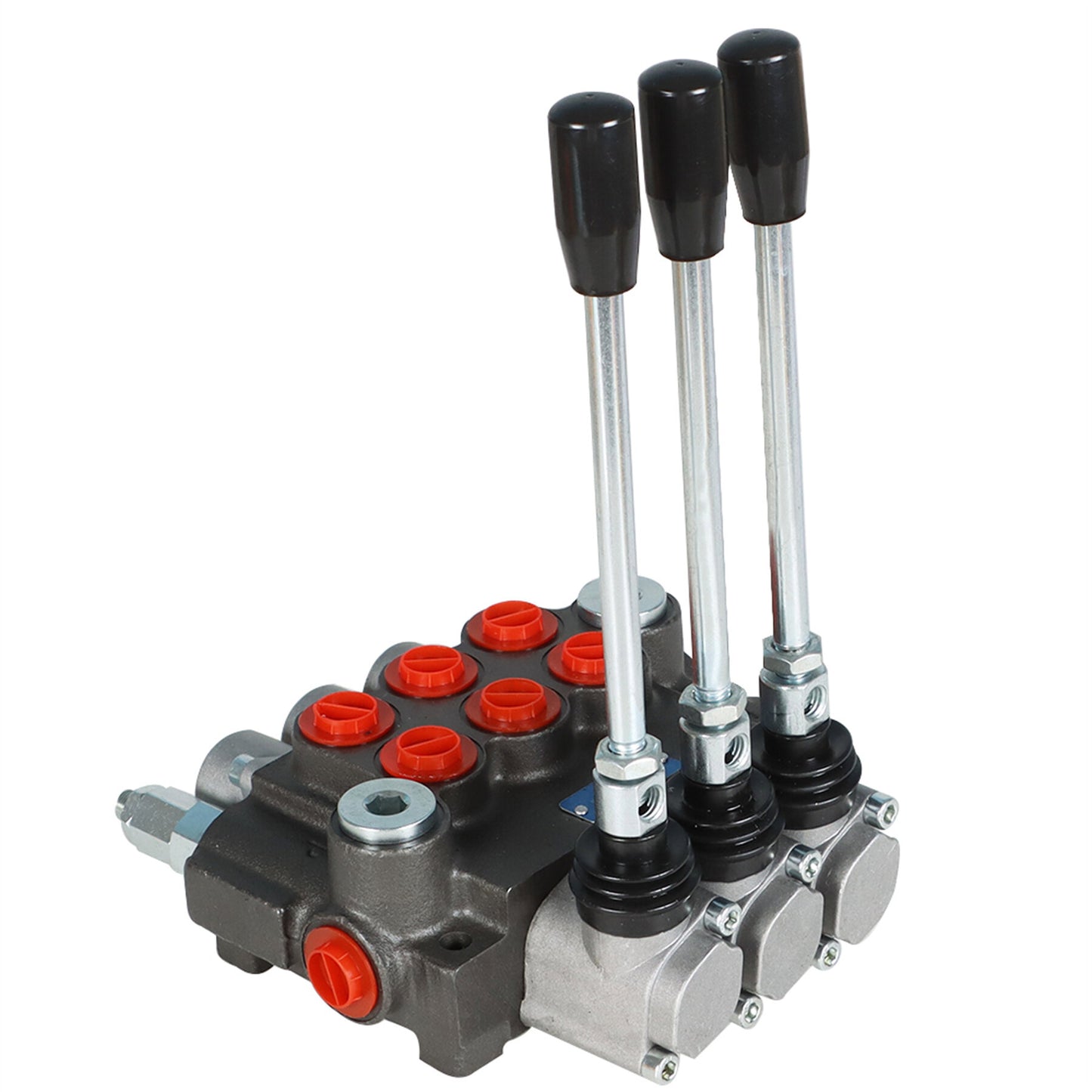

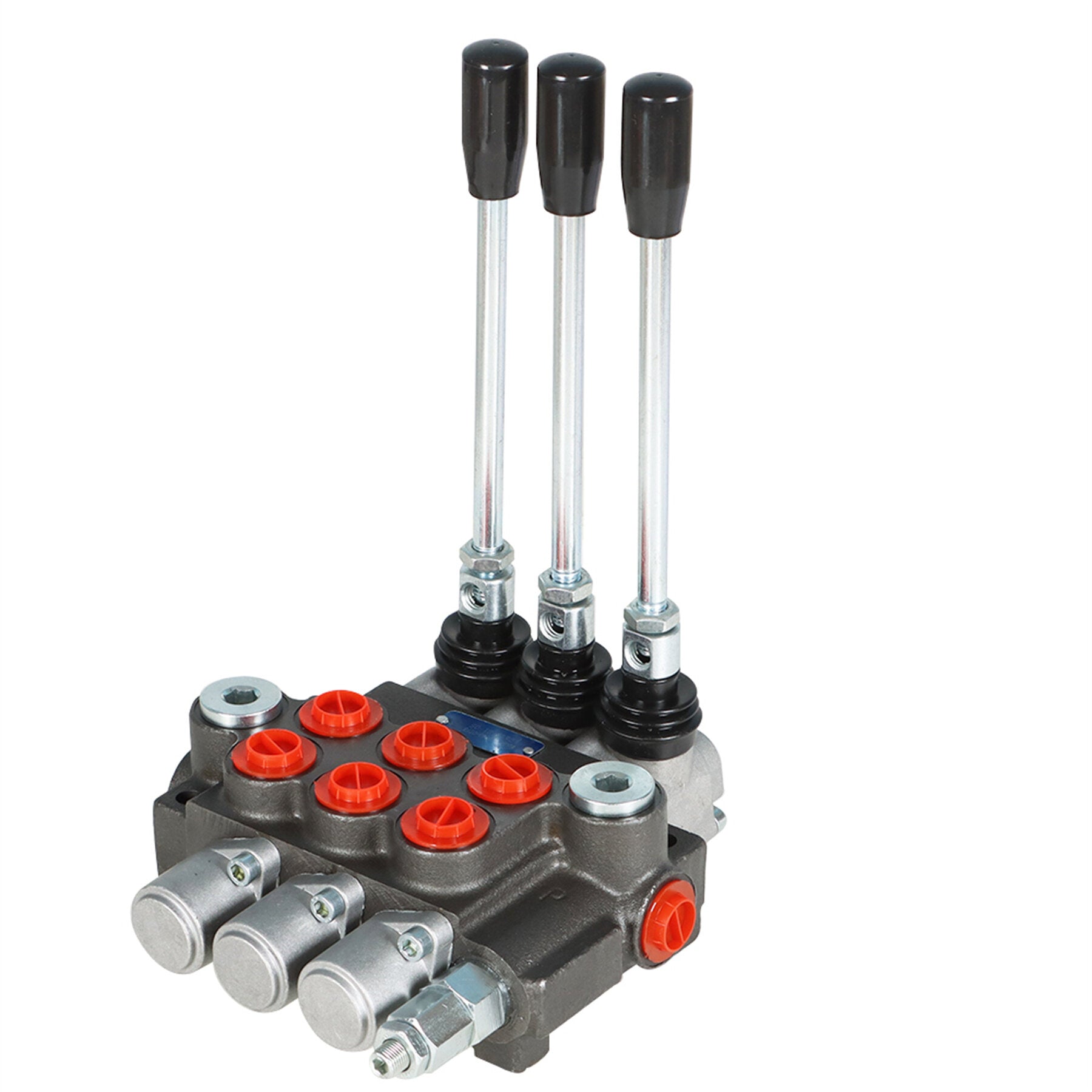

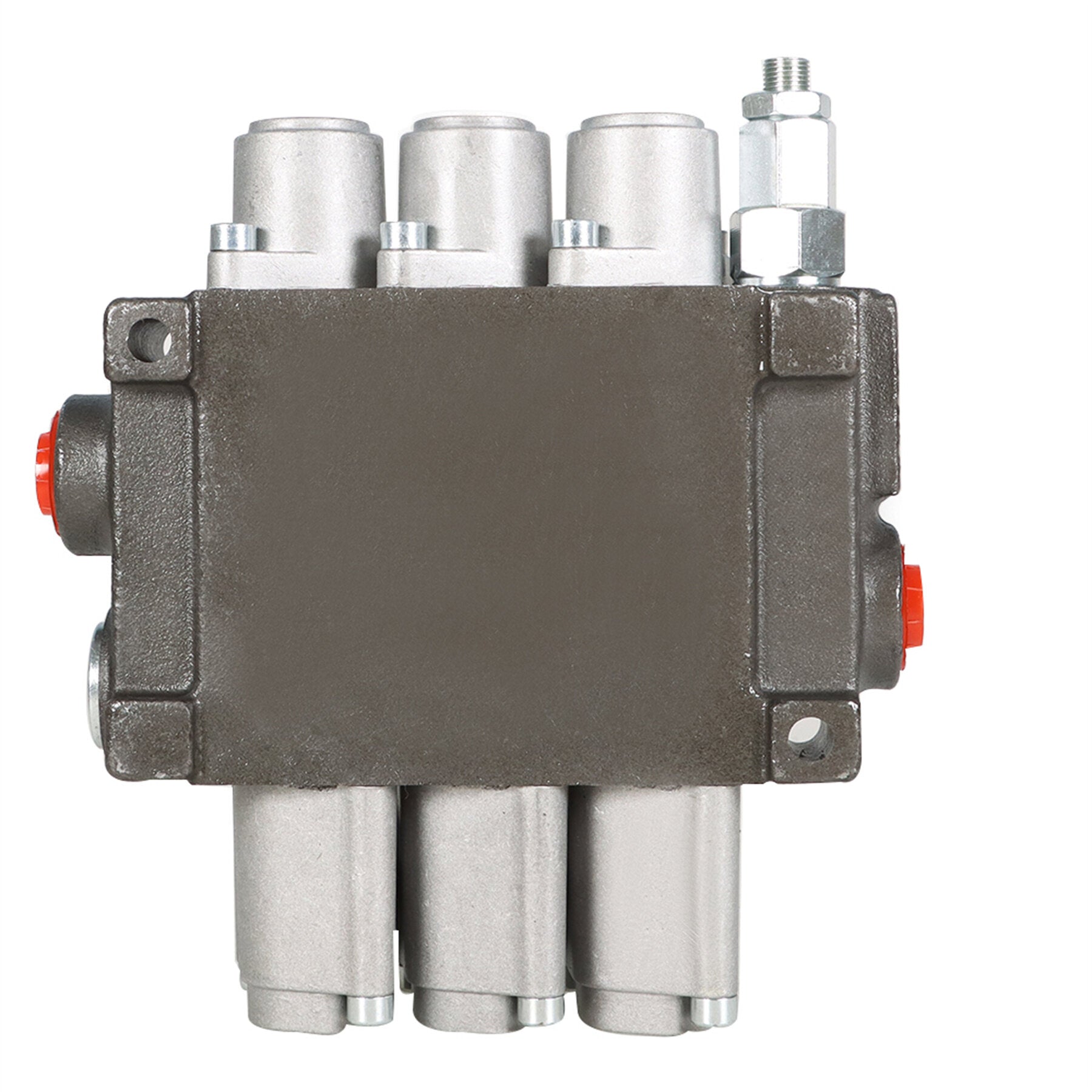

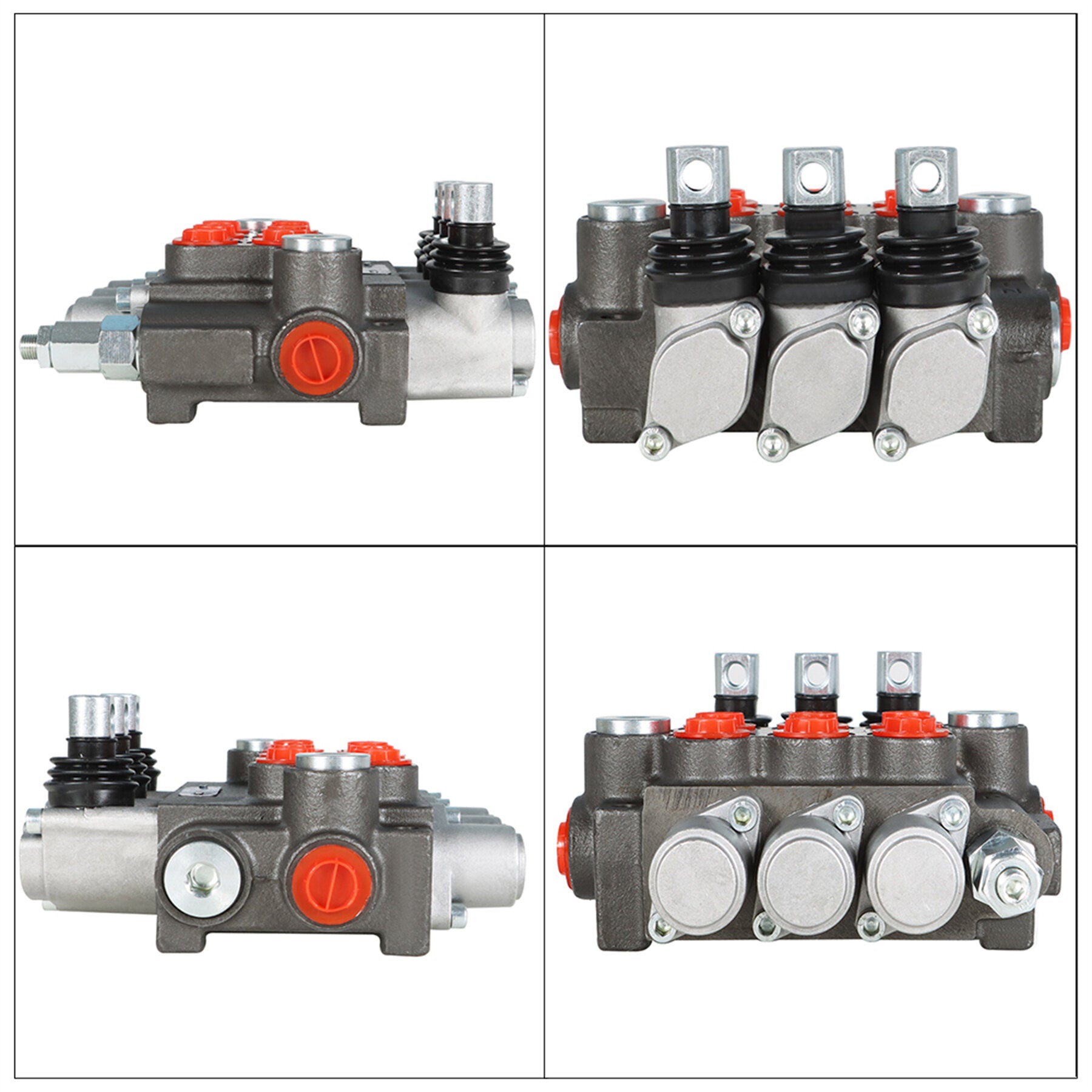

Hydraulic Valve 3 Spool Hydraulic Directional Control Valve Double Acting Valve 13 GPM 3600 PSI BSPP Ports
Specification:
? Max pressure: 3600 PSI
? Nominal flow: 13gpm (60L/min)
? A, B ports: 1/2" BSPP
? P, T, N port: 1/2" BSPP
? T = 150psi (10 bar);
? A, B = 4300psi (300 bar)
? Relief valve: Adjustable
Features:
? The relief valve inside the valve body is able to adjust the hydraulic system working pressure.
? The check valve inside the valve body is to insure the hydraulic oil not to be returned.
? Parallel circuit, power beyond option.
? Hydraulic lock is available to be added on A and B port.
? Fit for small tractors, tractors loaders, log splitters, and etc.
Package Includes:
? 1 x 3 spool 13 GPM hydraulic directional control valve
