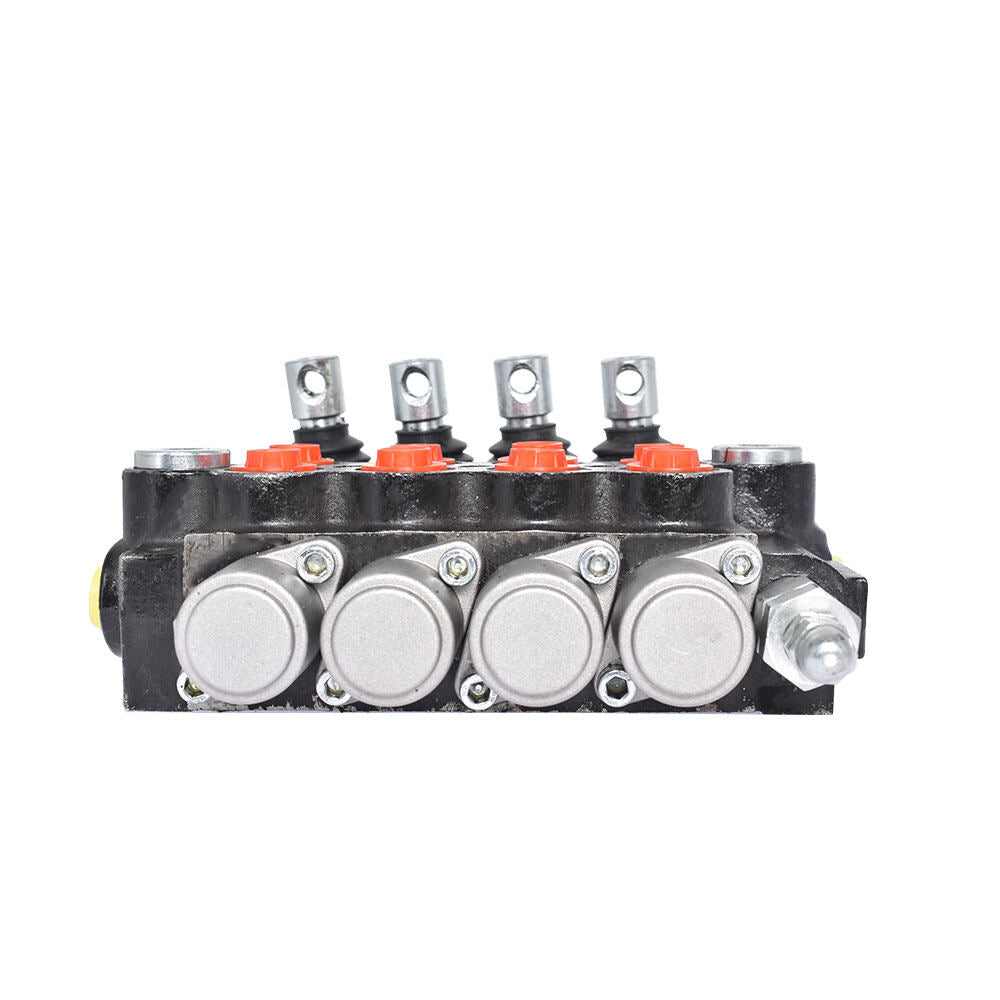

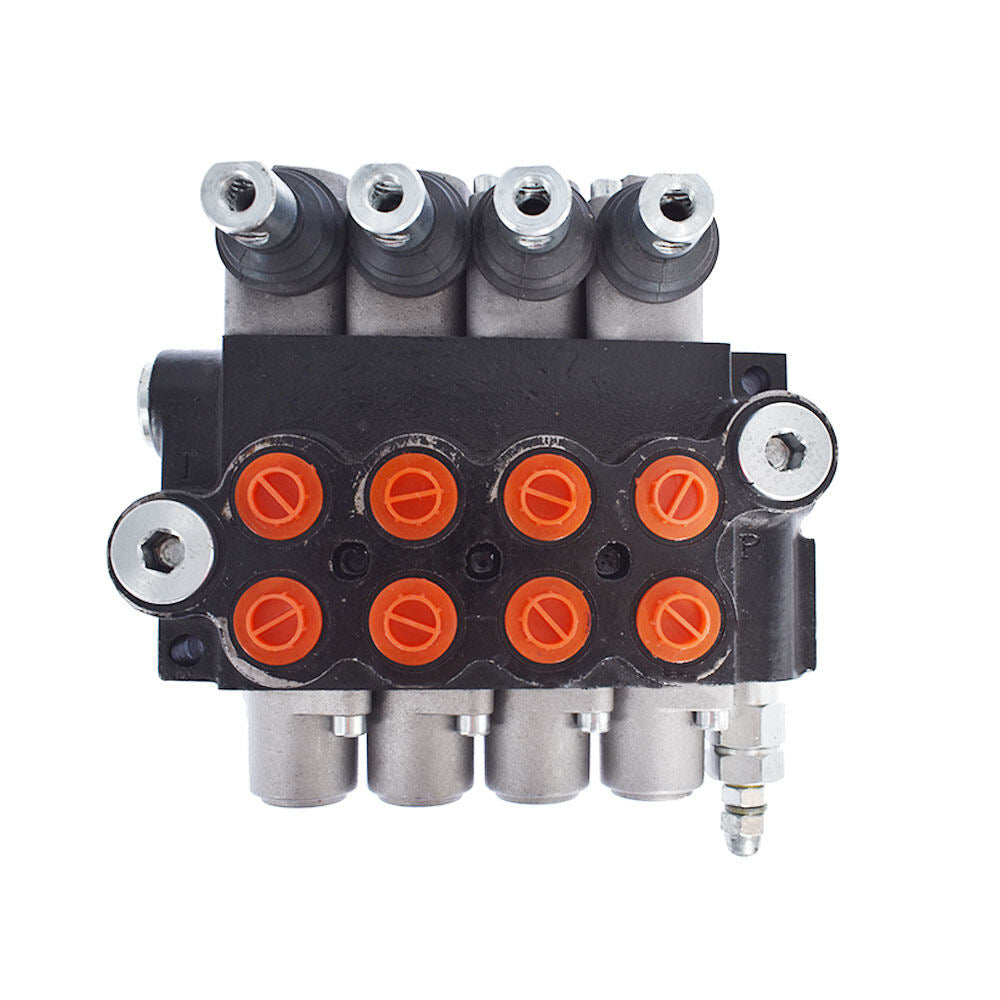

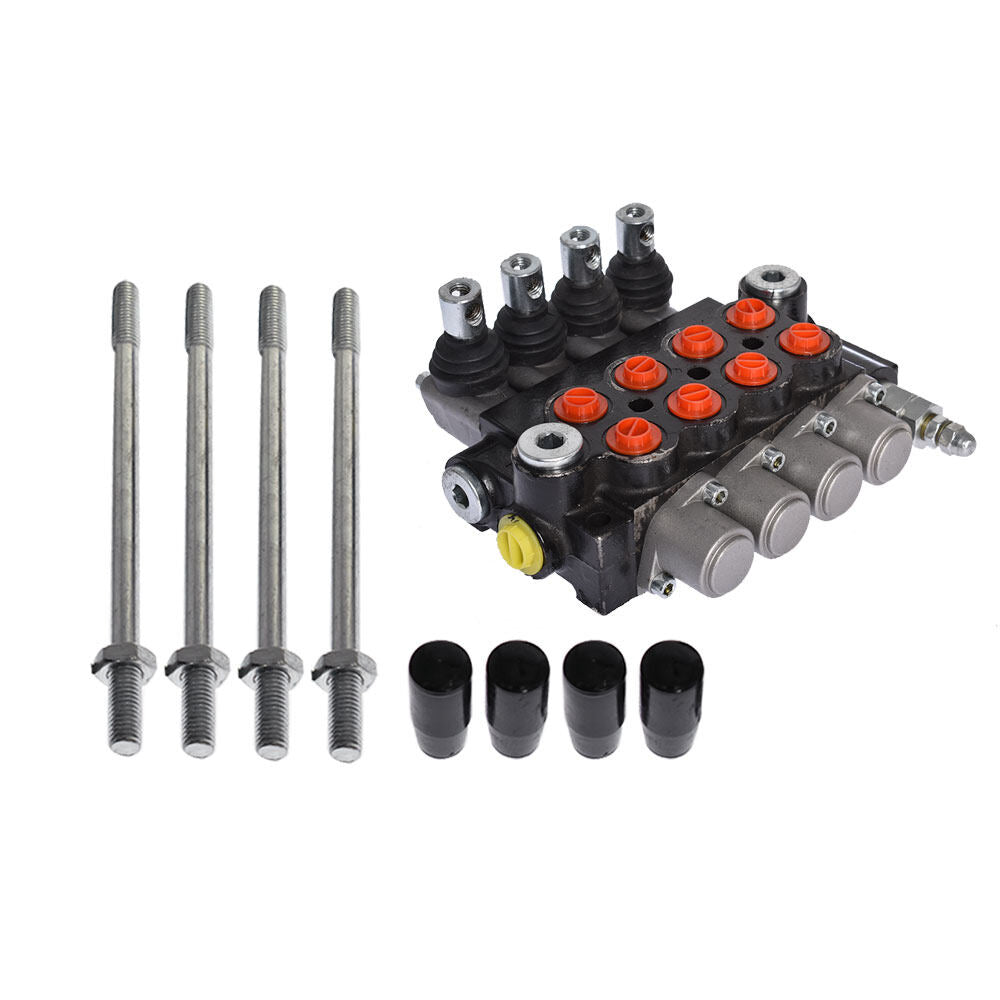

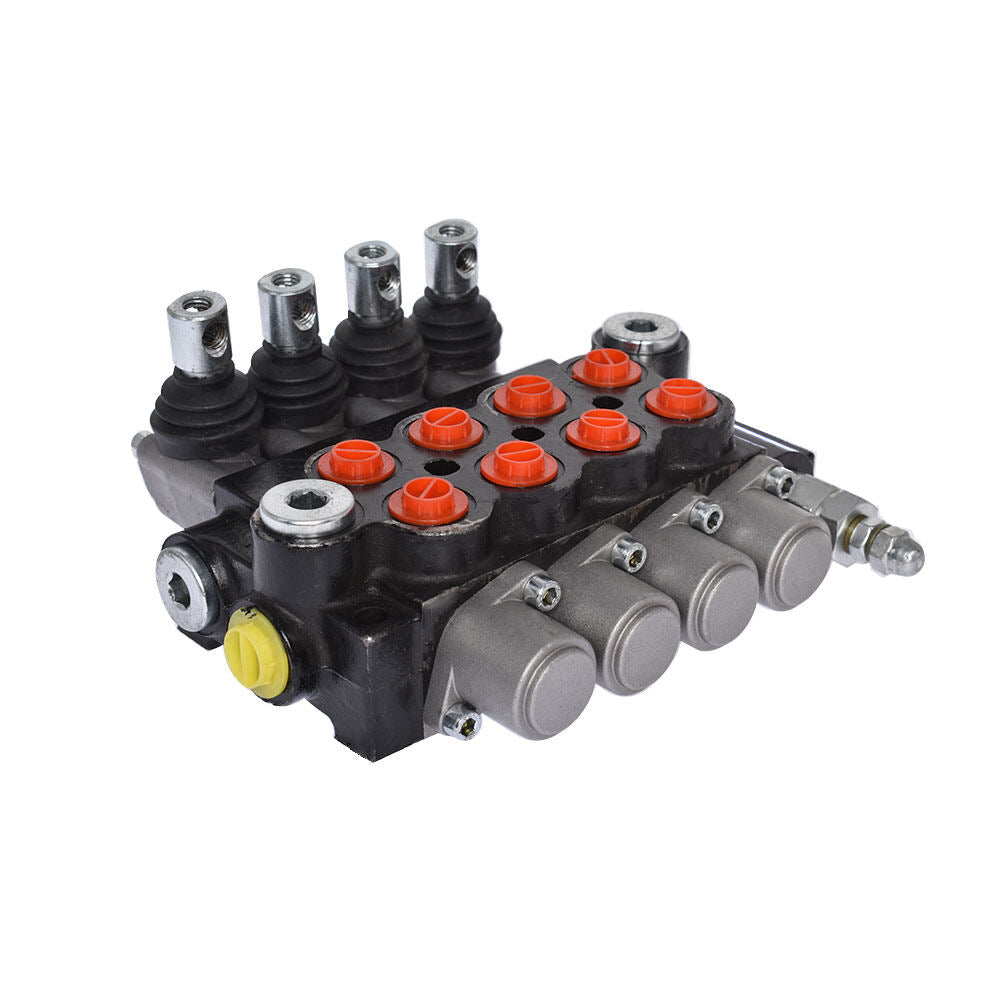

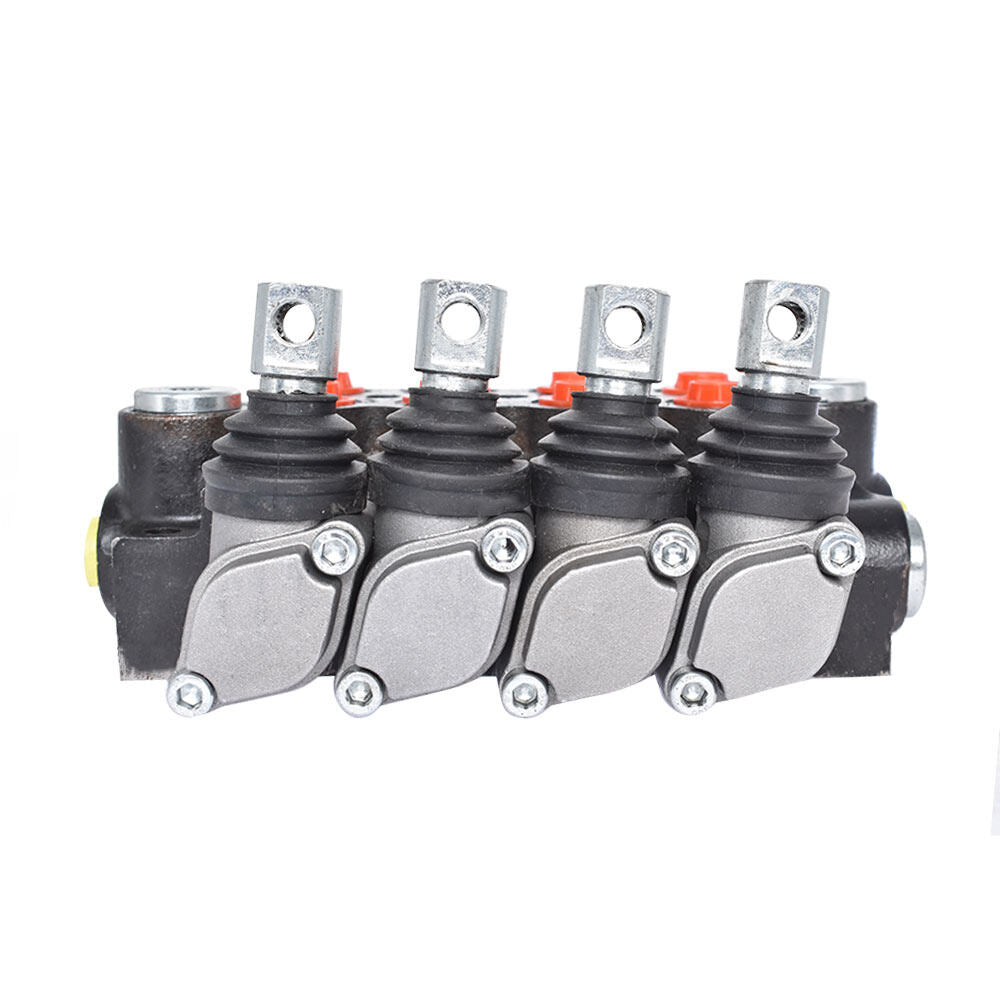

ALL-CARB Hydraulic Valve 4 Spool Hydraulic Directional Control Valve Double Acting Control Valve 11 GPM 3625 PSI SAE Ports

Hydraulic Valve 4 Spool Hydraulic Directional Control Valve Double Acting Control Valve 11 GPM 3625 PSI SAE Ports

Specification:

Flow rating: 11 GPM

3625 PSI max pressure

Adjustable release valve

A & B work ports: 10 SAE o-ring (7/8"-14) thread

Inlet port: 10 SAE o-ring (7/8"-14) thread

Outlet port: 10 SAE o-ring (7/8"-14) thread

Advantages:

High-tensile cast iron monoblock construction

Vertical or horizontal handle mount

4 Spool valve with compact design allows for installations in tight areas

Precision ground and hard chrome-plated spools assure a long life

All spools are standard double acting with spring return to neutral position which are ideal for double acting cylinders

Used for open center systems (pump to tank flow)
