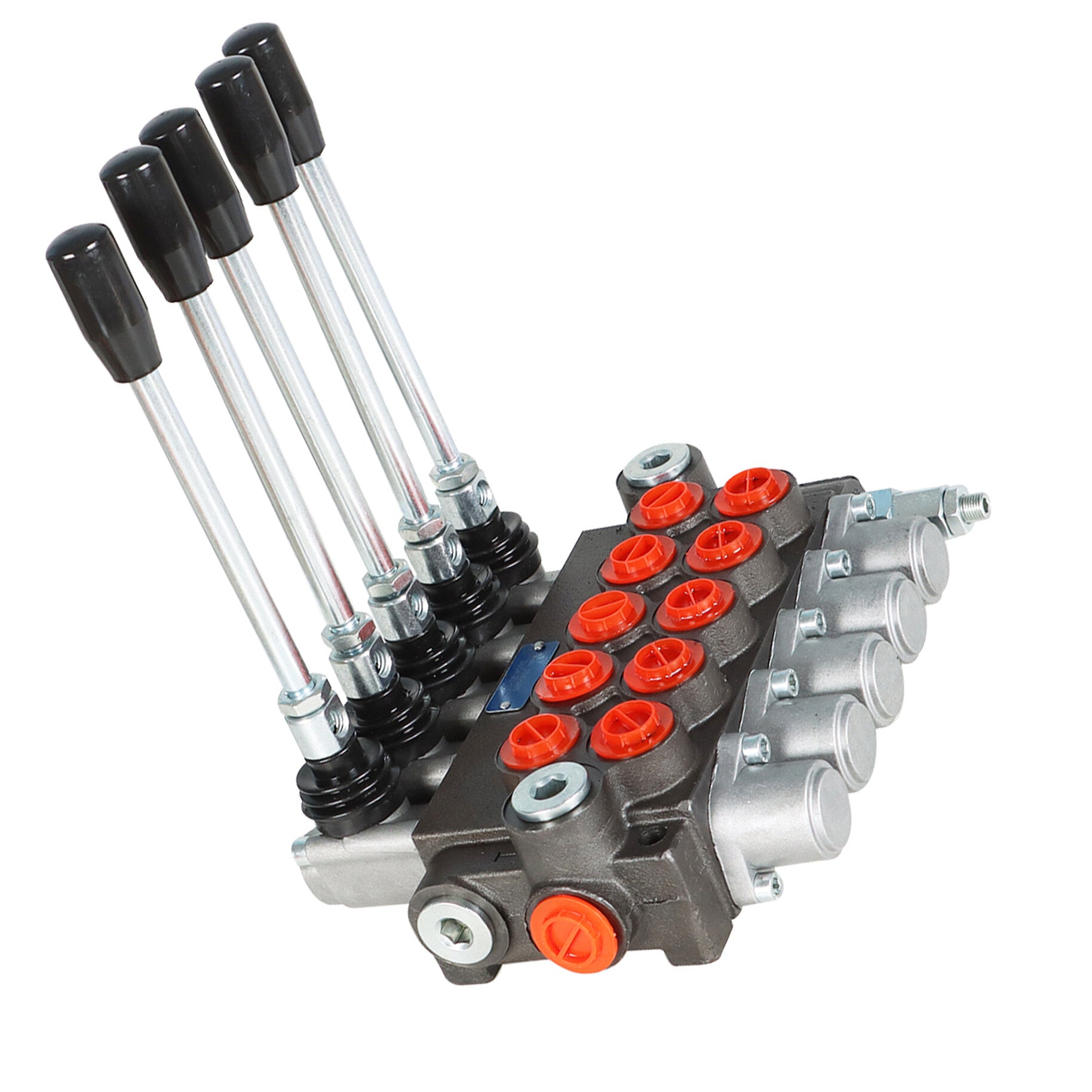

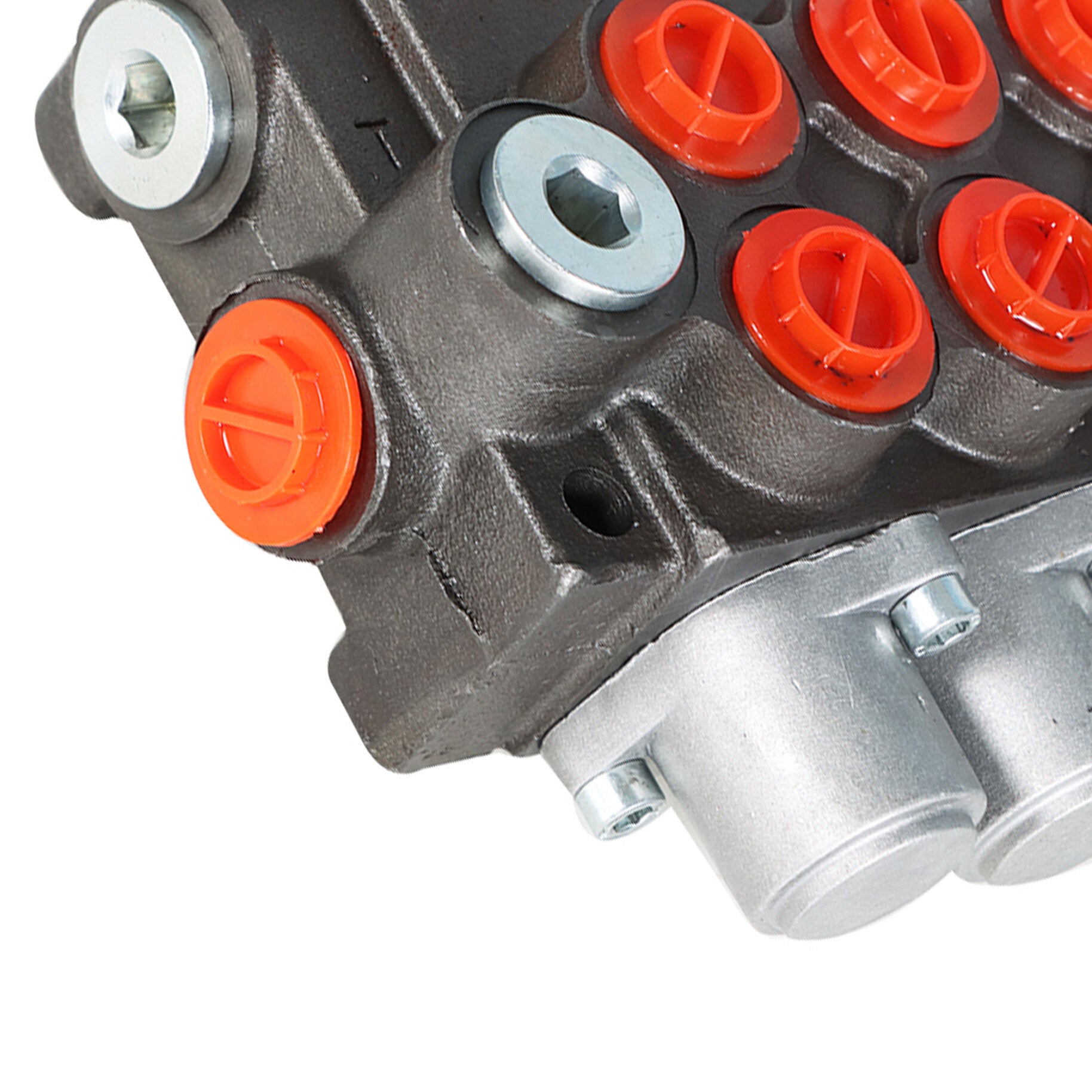

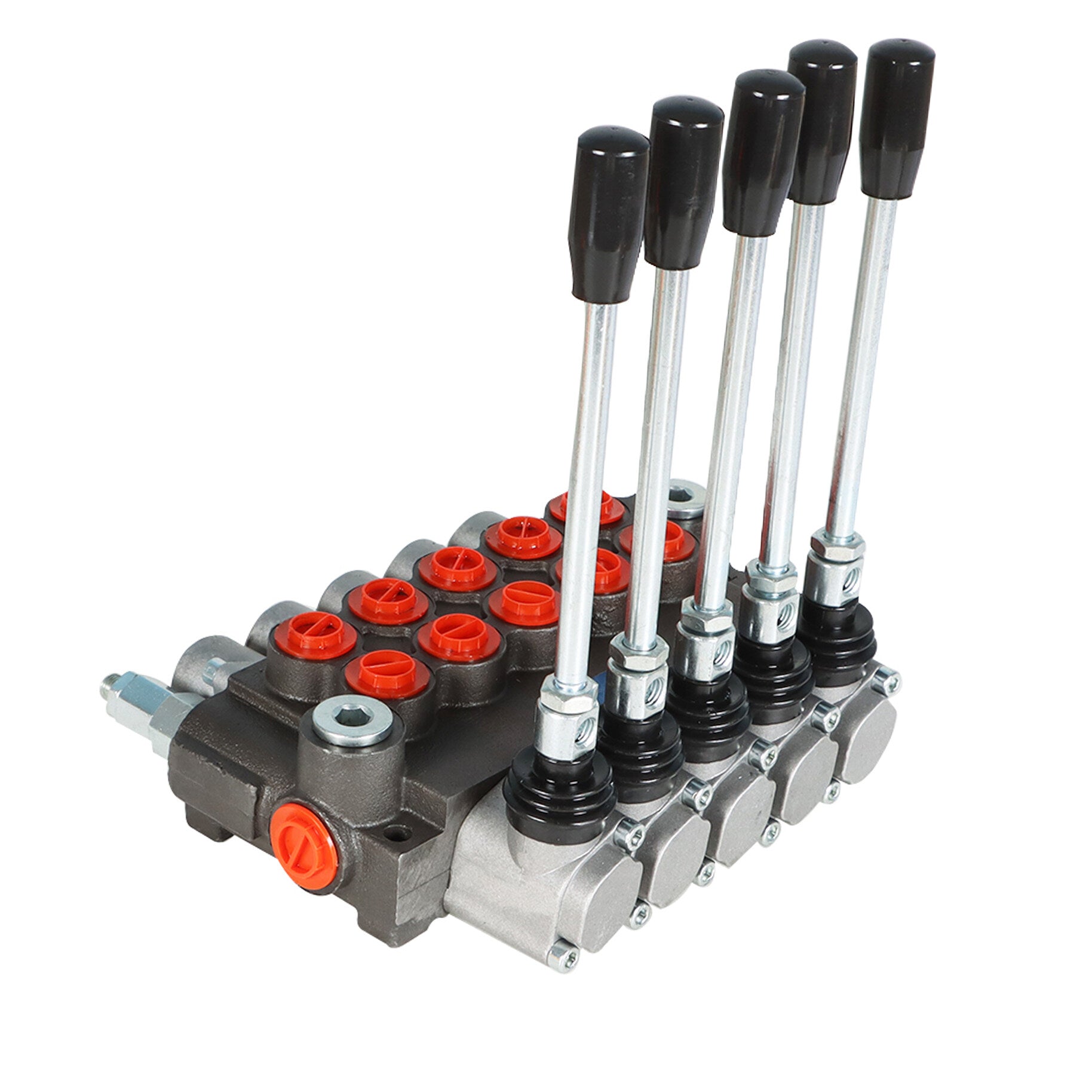

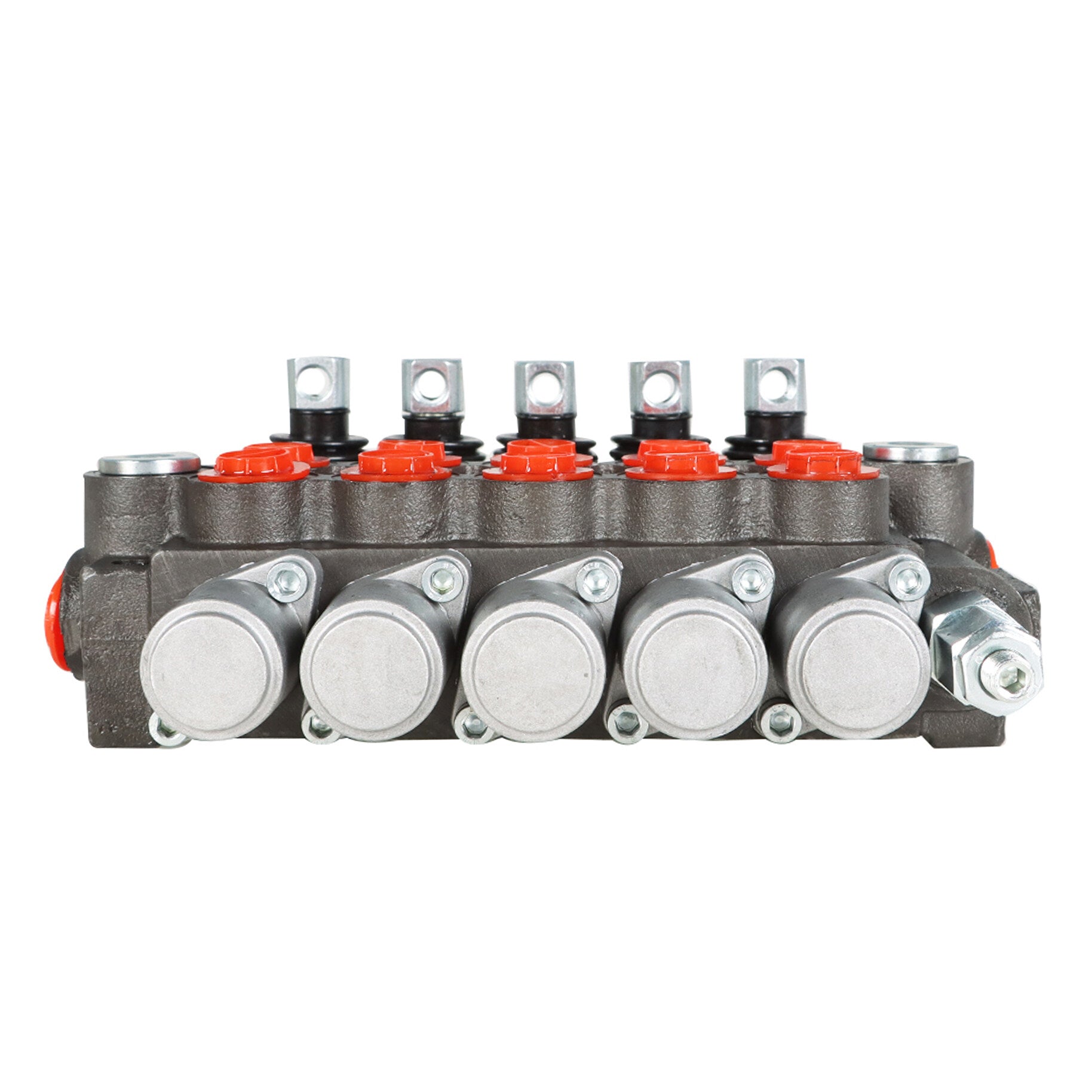

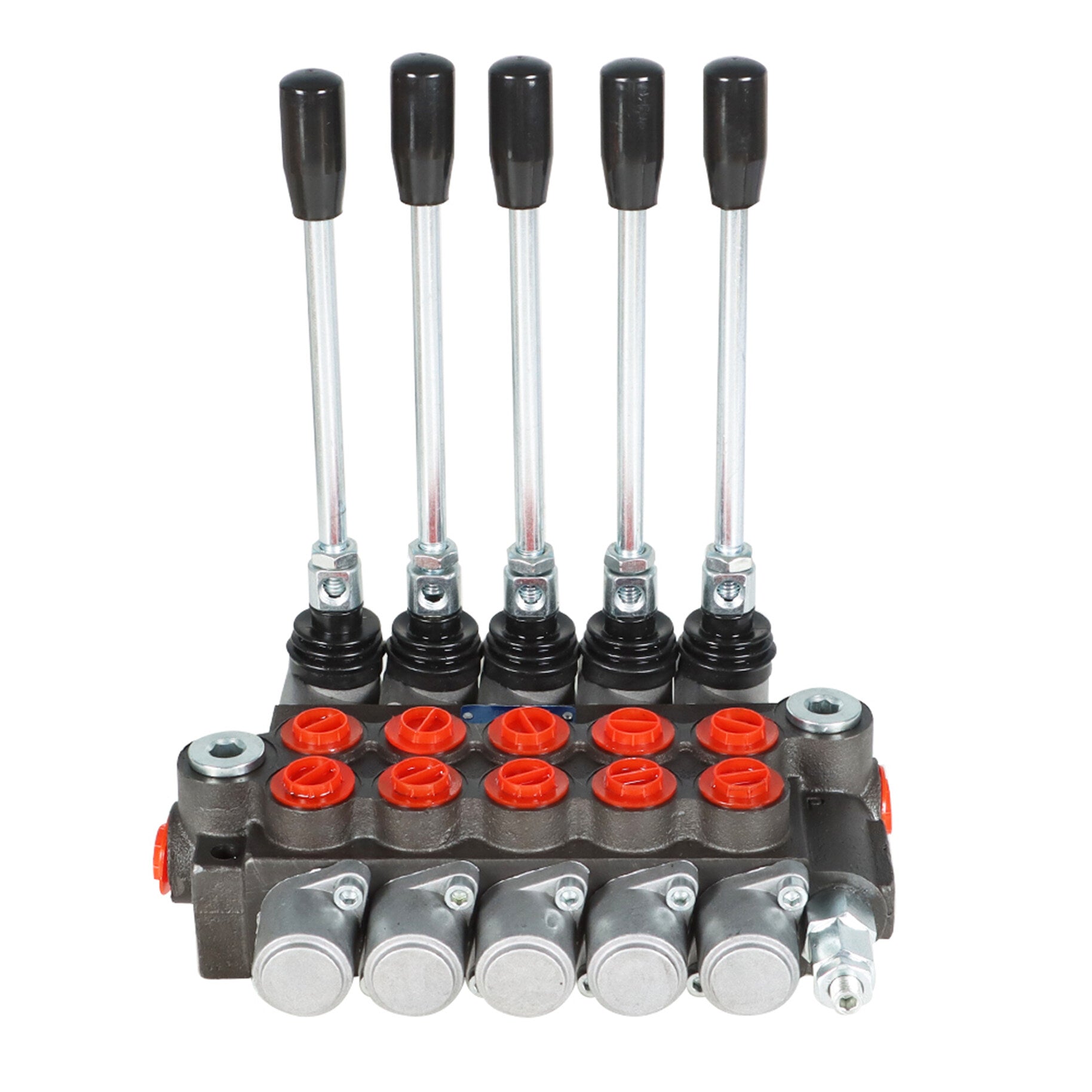

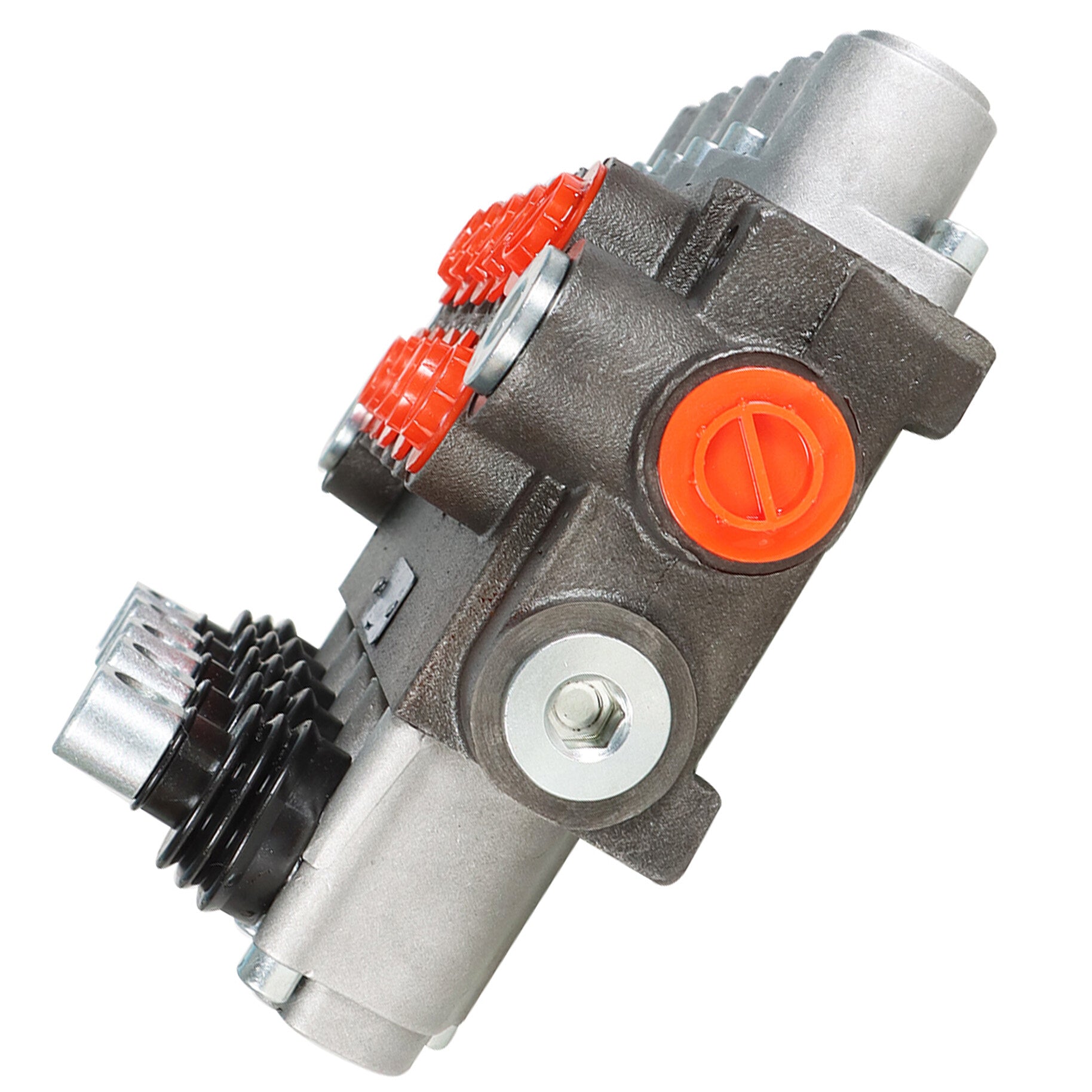

ALL-CARB Hydraulic Valve 5 Spool Hydraulic Directional Control Valve Double Acting Valve 13 GPM 3600 PSI SAE Ports for Tractors Loaders Tanks

Hydraulic Valve 5 Spool Hydraulic Directional Control Valve Double Acting Valve 13 GPM 3600 PSI SAE Ports

Specification:
? ?Max operating pressure: 3600 PSI
? ?Nominal flow: 13gpm
? ?Center system: Open
? ?Inlet Port: SAE 7/8-14
? ?Outlet Port: SAE 7/8-14
? ?Working Ports: SAE 7/8-14




Features:
? The relief valve range can reach up to 3600 PSI and the maximum flow is up to 13 GPM.
? All spools are standard double acting with spring return to the neutral position which is ideal for double-acting cylinders.
? 4 Way 3 Positions. Spring center to neutral all spools.
? Durable cast iron body.




Package Includes:
?1 x 5 spool 13GPM hydraulic directional control valve
