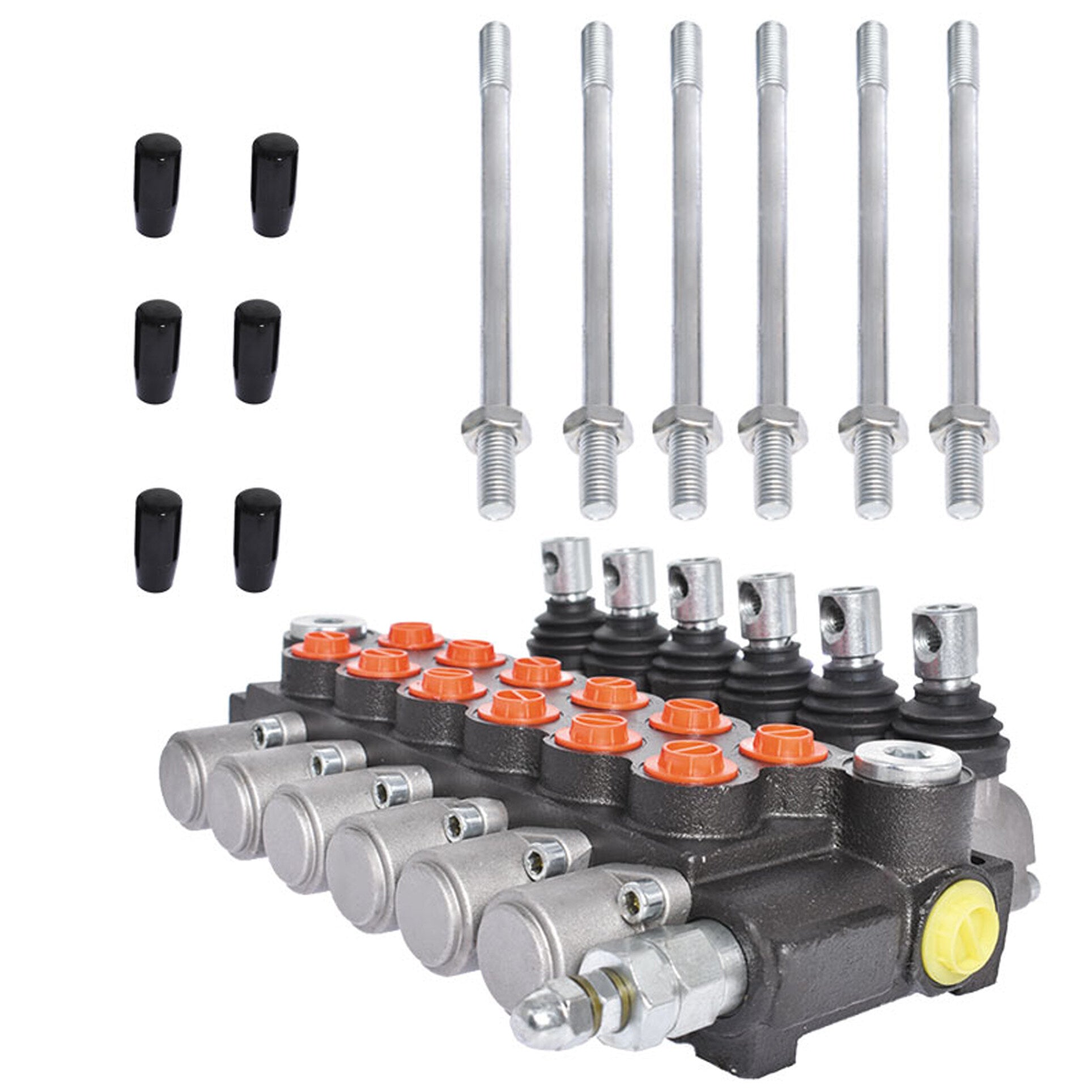

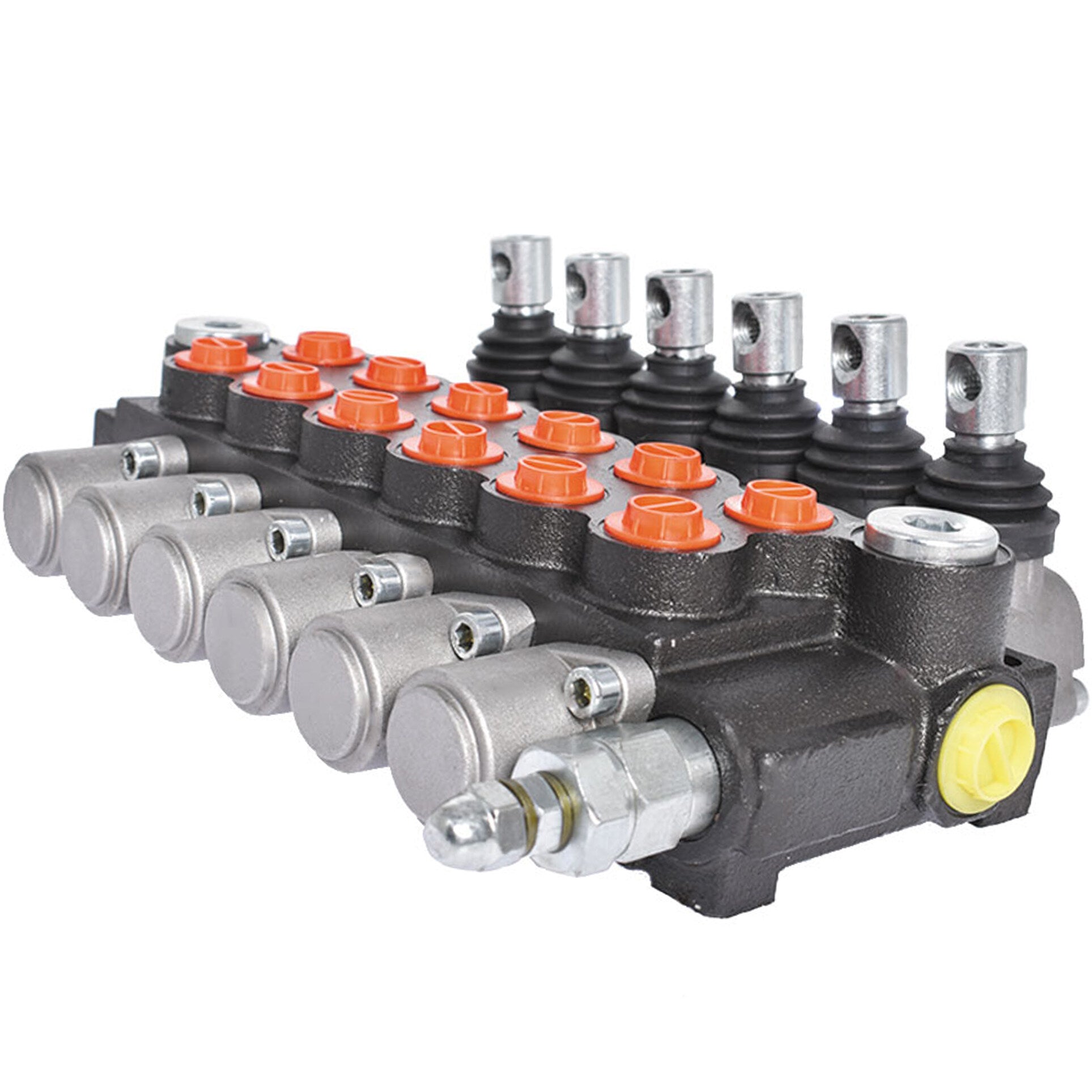

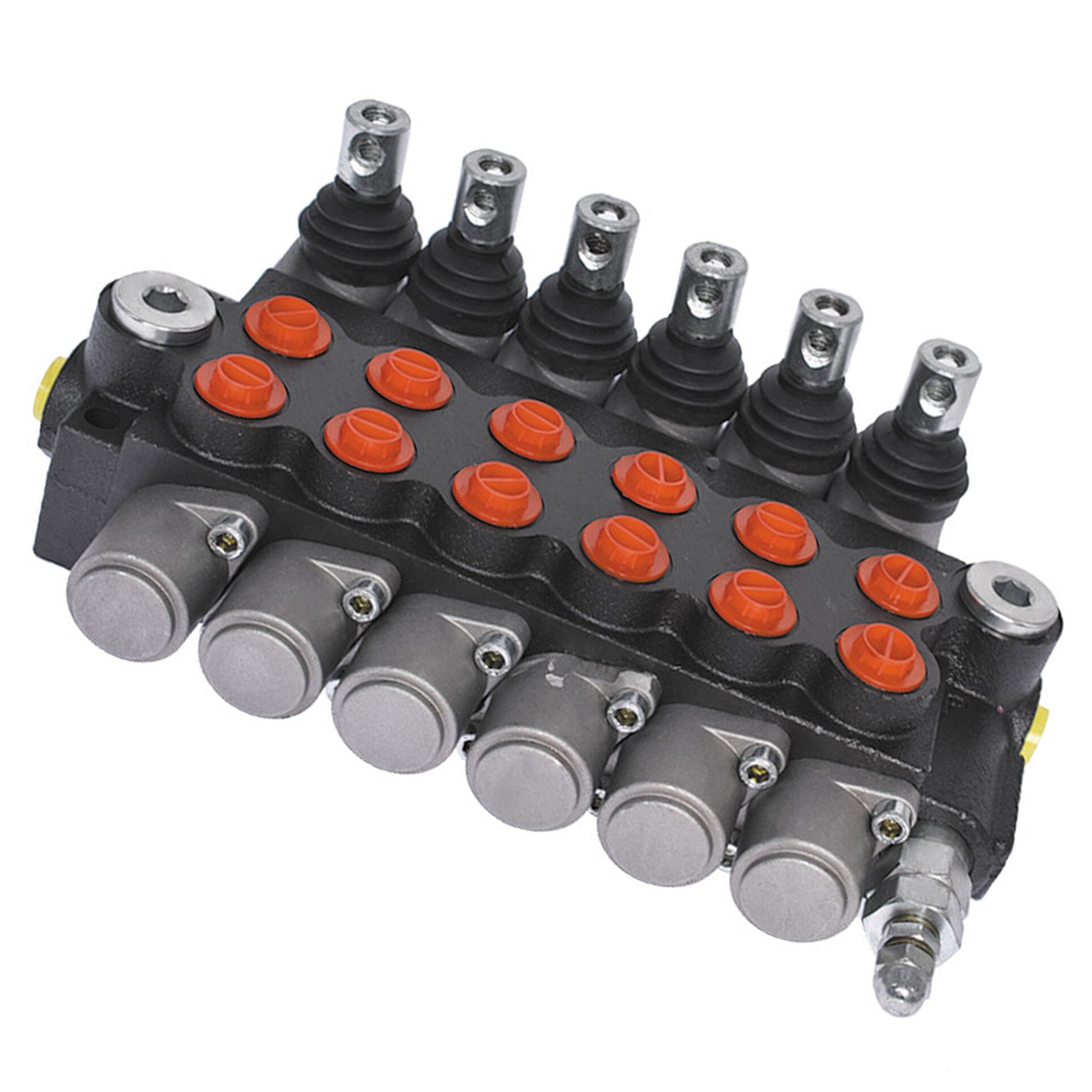

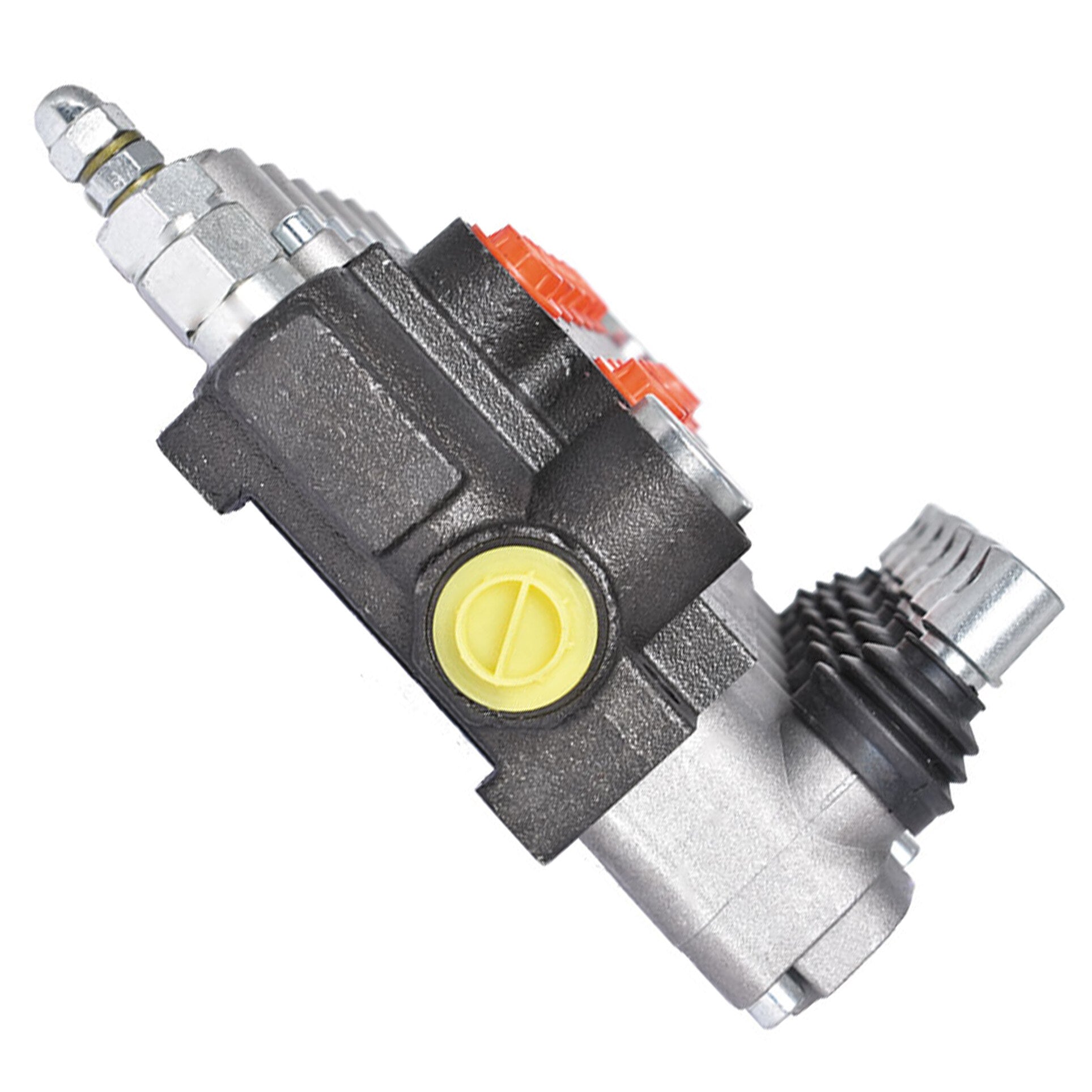

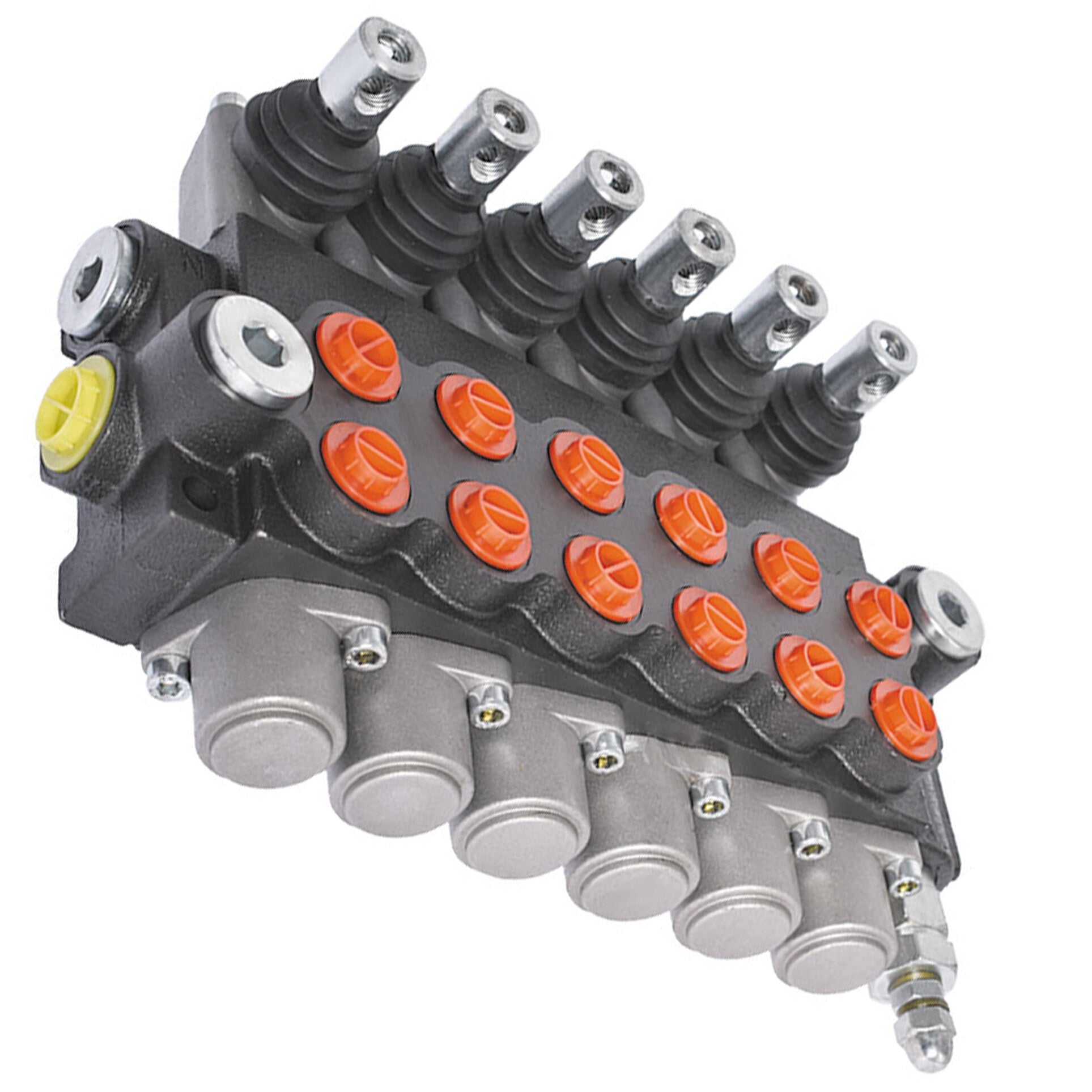

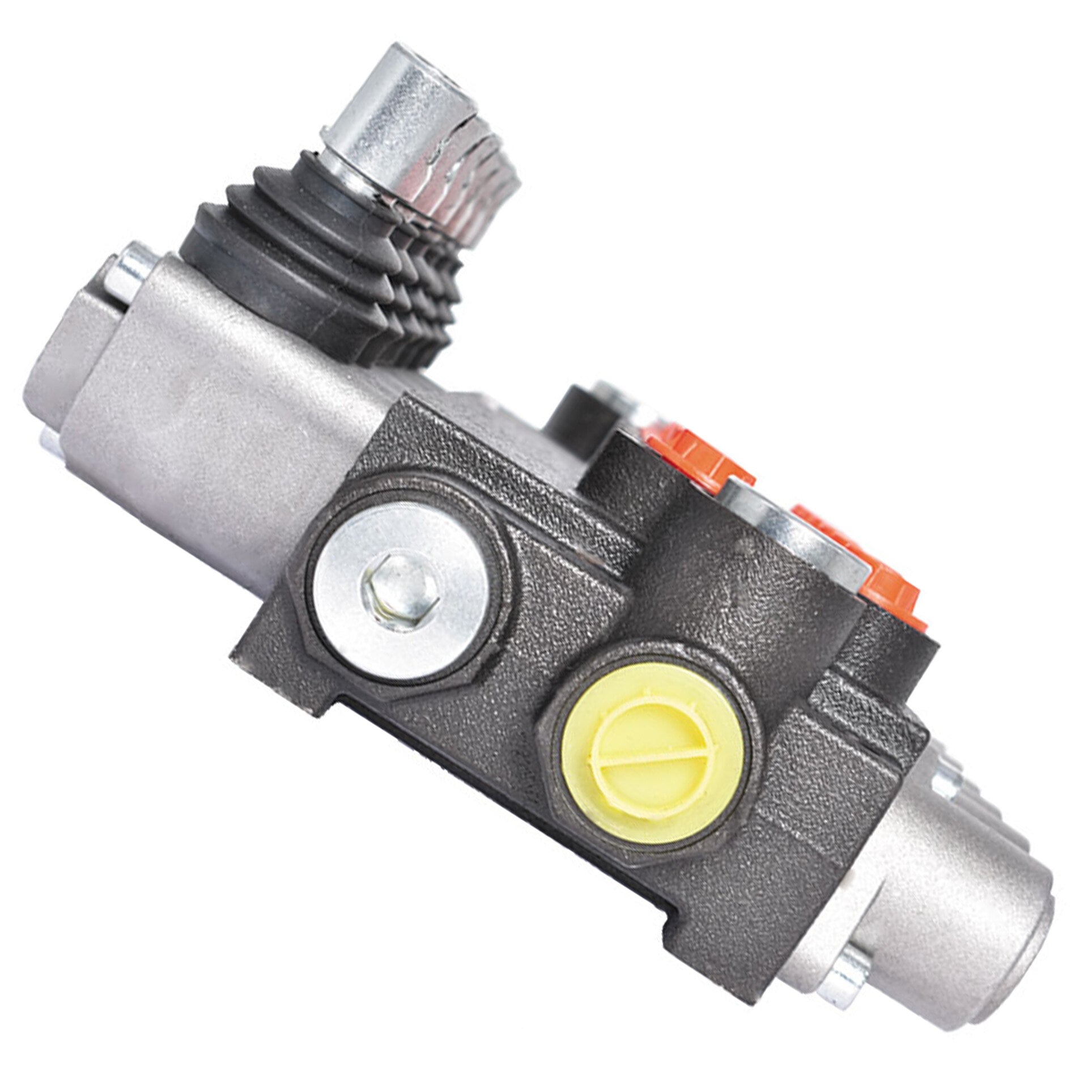

ALL-CARB Hydraulic Valve 6 Spool Hydraulic Directional Control Valve Double Acting Control Valve 13 GPM 3600 PSI SAE Ports

Hydraulic Valve 6 Spool Hydraulic Directional Control Valve Double Acting Control Valve 13 GPM 3600 PSI SAE Ports

Features:

Flow Rating: 13 GPM

3600 PSI MAX Pressure

Adjustable release valve

Inlet port SAE10(7/8-14)

Outlet port SAE10(7/8-14)

Working ports SAE10(7/8-14)

4 Way 3 Positions

Advantages:

High-tensile strength cast iron monoblock construction

Vertical or horizontal handle mount

6 Spool valve with compact design allows for installations in tight areas

Precision ground and hard chrome-plated spools assure a long life

All spools are standard double acting with spring return to neutral position which are ideal for double acting cylinders

Used for open center systems (pump to tank flow)
