ALL-CARB K11-130 3-Jaw Self Centering Chuck 130mm (5.1 Inch) Total 2 Set of Jaws Fit for CNC Machine Tools
ALL-CARB K11-130 3-Jaw Self Centering Chuck 130mm (5.1 Inch) Total 2 Set of Jaws Fit for CNC Machine Tools
Regular price
$69.19 USD
Regular price
$0.00 USD
Sale price
$69.19 USD
Unit price
/
per

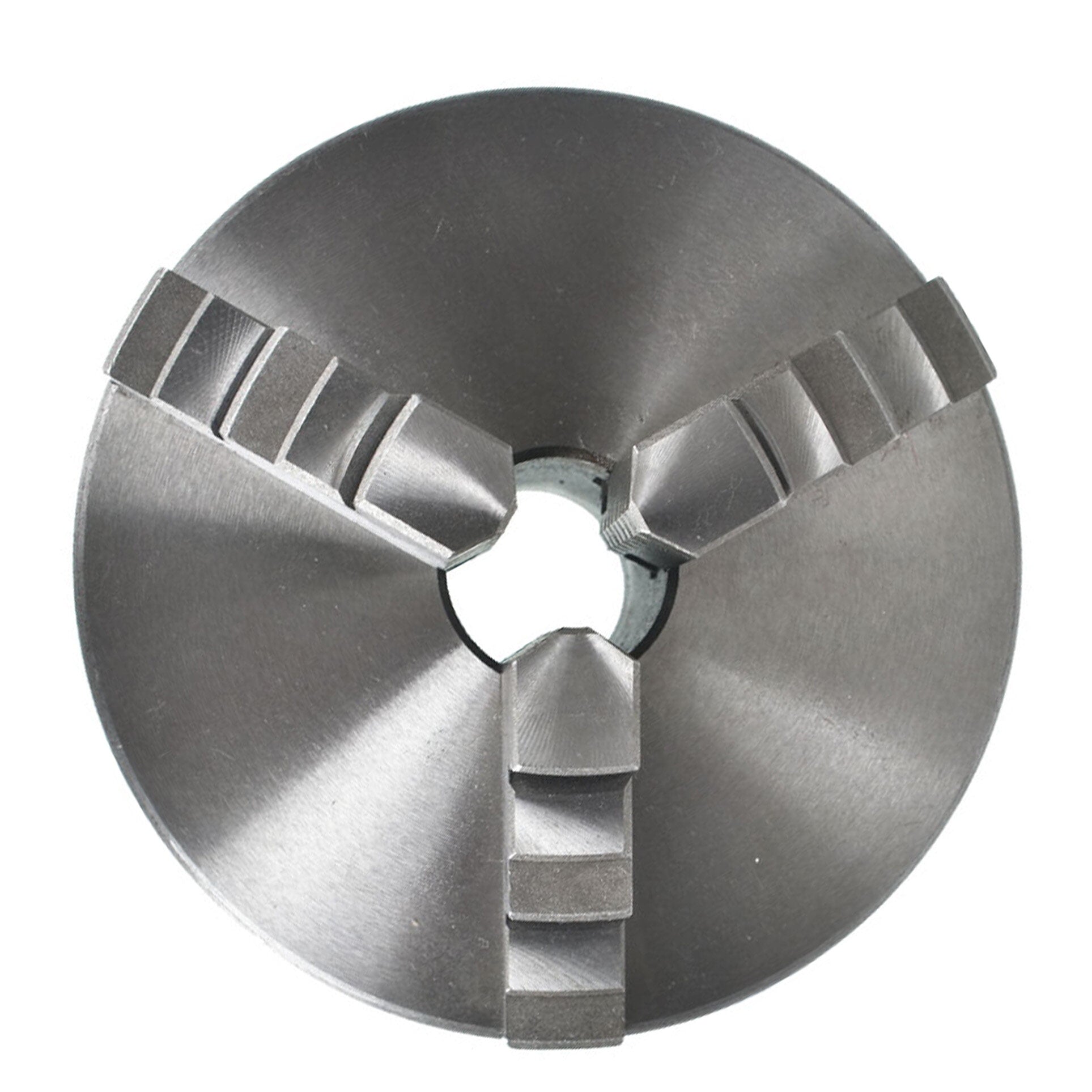

K11-130 3-jaw self centering chuck is widely used, with good clamping force and tight sealing performance. The steel is preferred, with high concentricity and durability
Specification:
Size: 130 mm (5.1inch)
Outside Diameter: 130 mm (5.1inch)
Bolt Circle Diameter: 115 mm (4.25inch)
Center Thru Hole Diameter: 30 mm (1.18inch)
Chuck Body Thickness: 60 mm (2.28inch)
Internal Jaw Clamping Range (A-A1): 3-40 mm (0.12-1.58inch)
Internal Jaw Jamming Range (B-B1): 40-130 mm (1.58-5.12inch)
External Jaw Clamping Range (C-C1): 40-120 mm (1.58-4.7inch)
Mounting Thread: 3-M8
Accuracy: 0.002 inch
Features:
Made of high quality material, the chuck base is hardened and durable, could be used for a long period
The chuck is suitable for machine tools and accessories for general lathes, economical CNC lathes

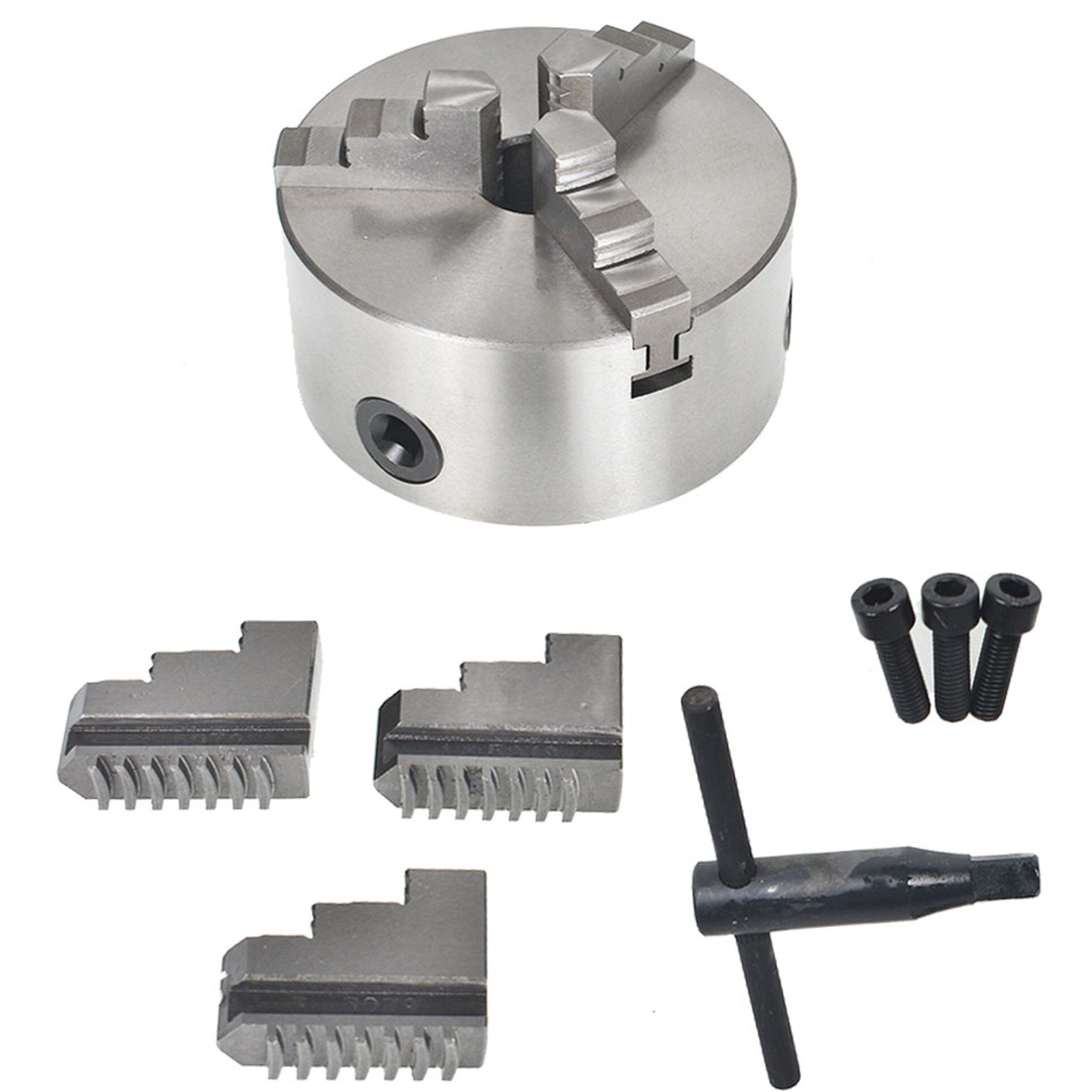

Package Includes:

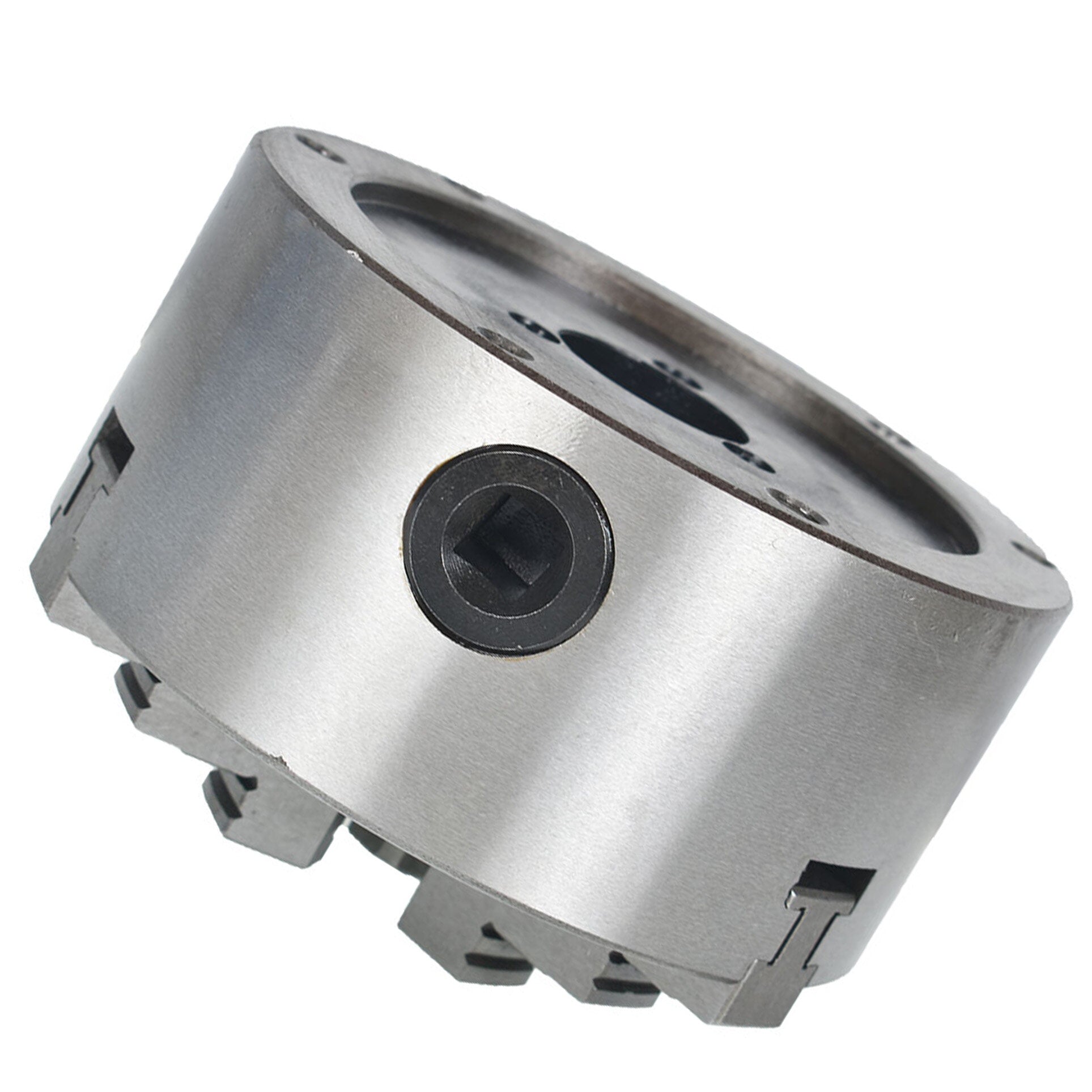

1 X 130 mm/5.1 Inch Lathe Chuck Body

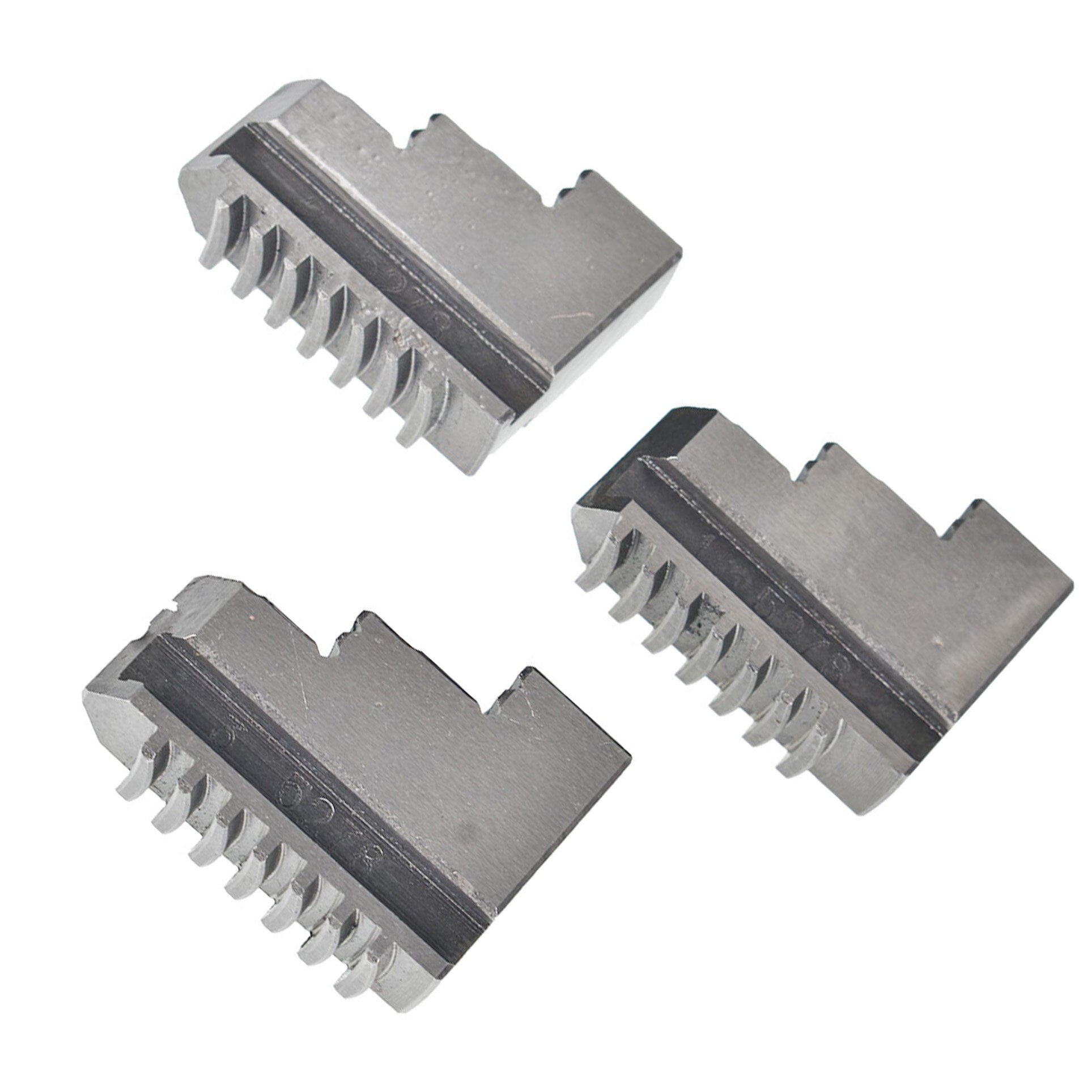

1 X Internal Jaw Set
1 X External Jaw Set

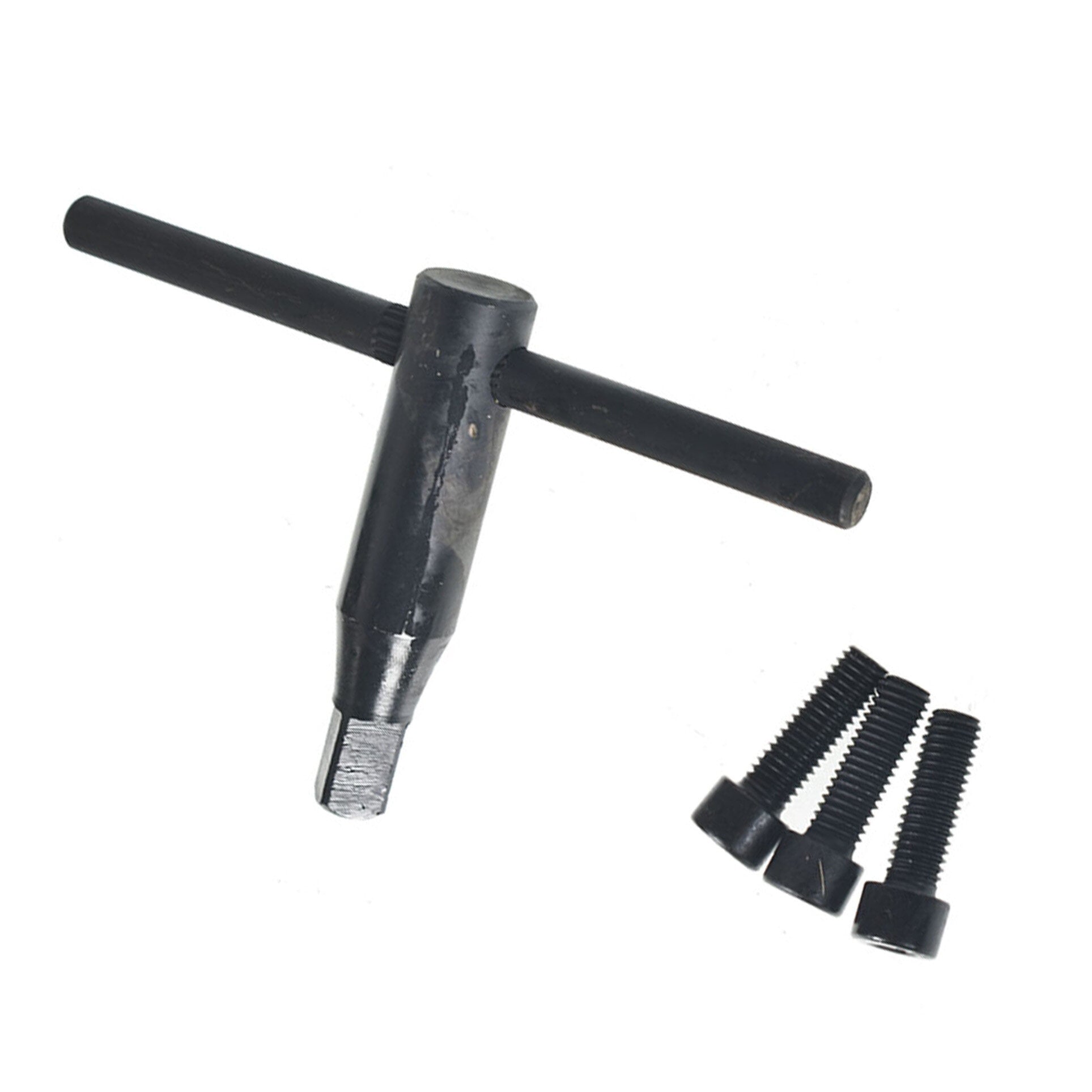

3 X Mounting Bolts
1 X Safety Chuck Key
View full details
