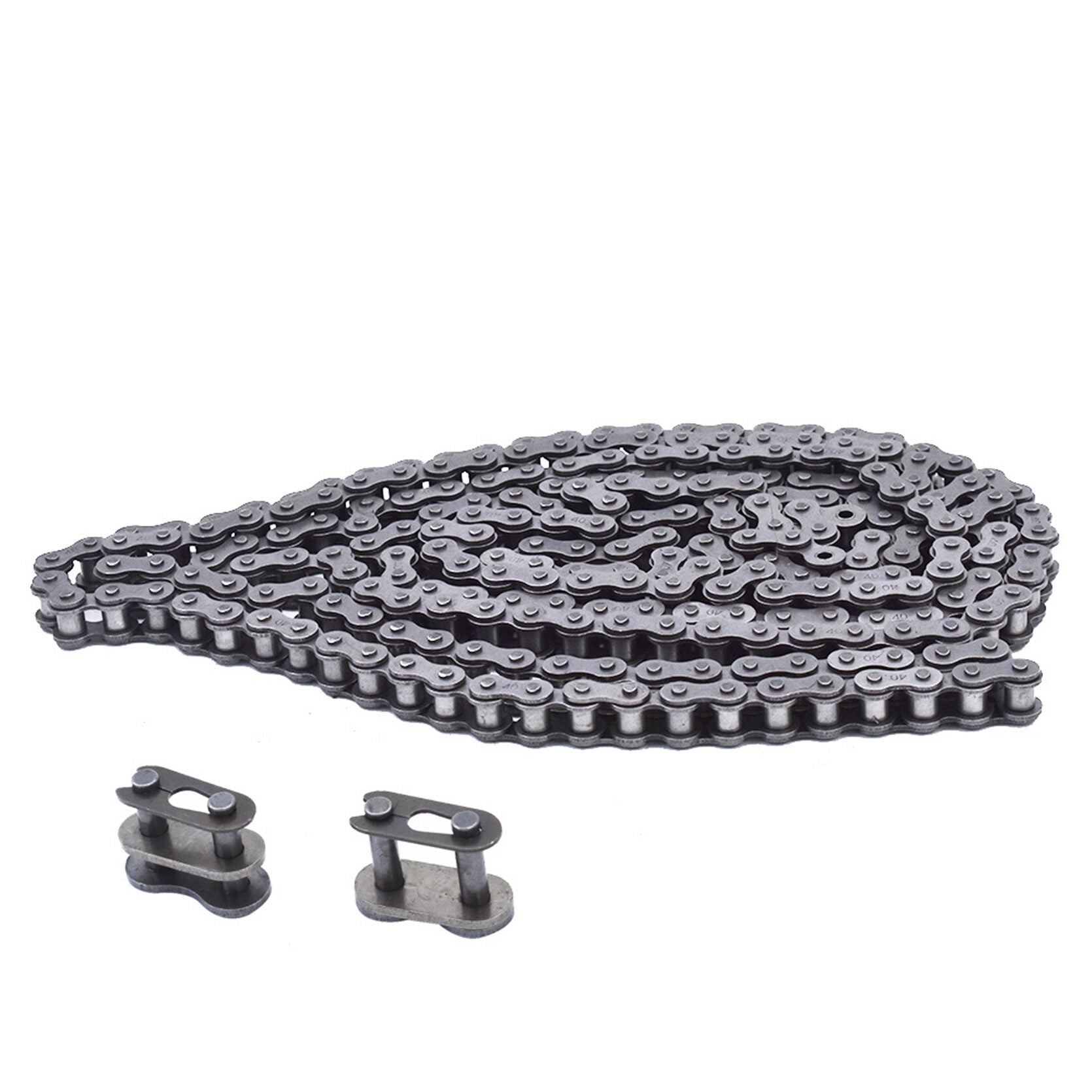

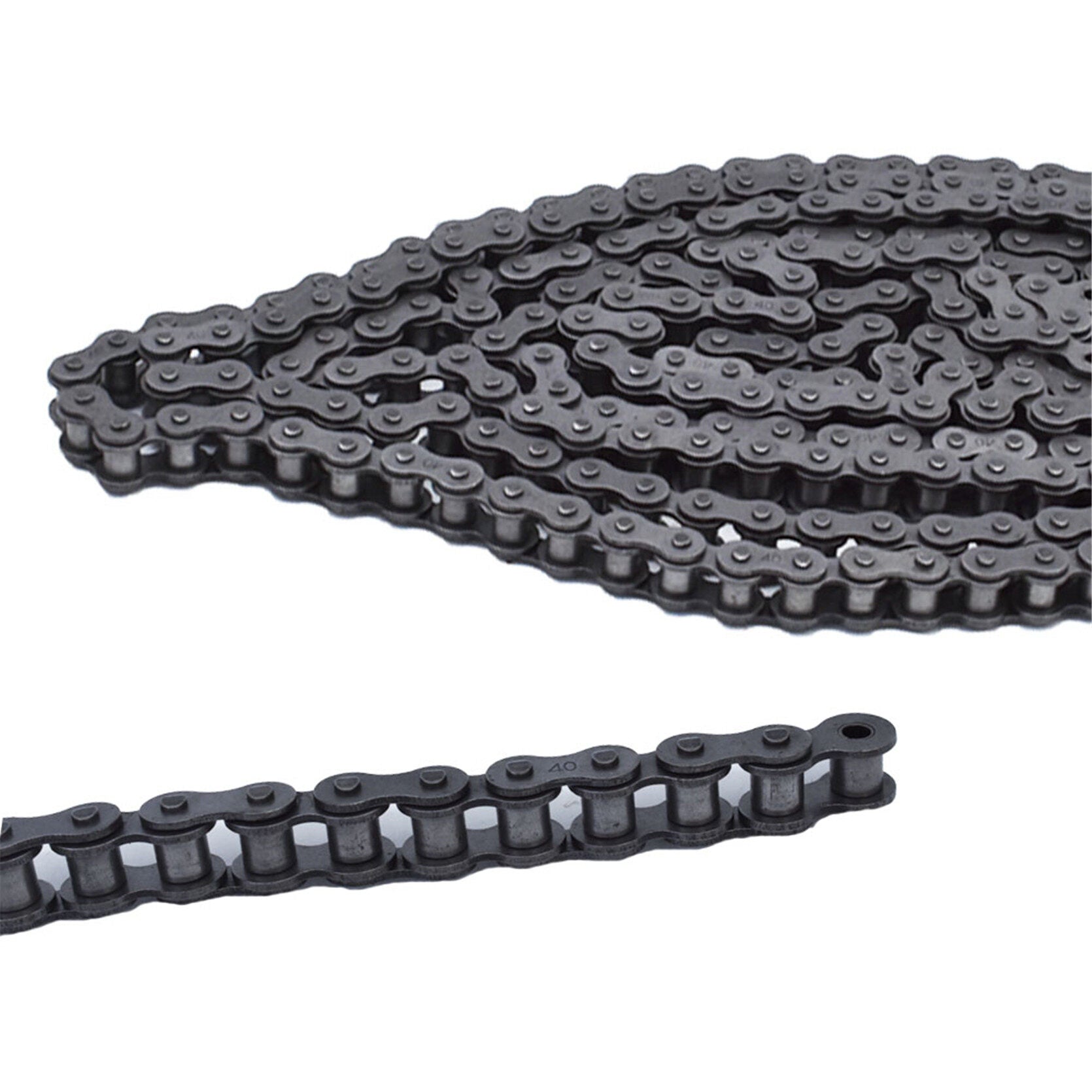

ALL-CARB Roller Chain 40 10 Feet with 2 Connecting Links Fit for Go Kart and Mini Bike

Material: Carbon Steel

Length: 10 Feet

Pitch Size (p) : 0.500 Inch

Roller Diameter (d1 max) : 0.312 Inch

Width Between Inner Plates (b1 min) : 0.309 Inch

Pin Diameter (d2 max) : 0.156 Inch

Pin Length (L max) : 0.654 Inch

Pin Length (Lc max) : 0.701 Inch

Inner Plate Depth (h2 max) : 0.472 Inch

Plate Thickness (T max) : 0.059 Inch

Average Tensile Strength: 4000 lb

Weight Per Foot: 0.415 lbs


Note:

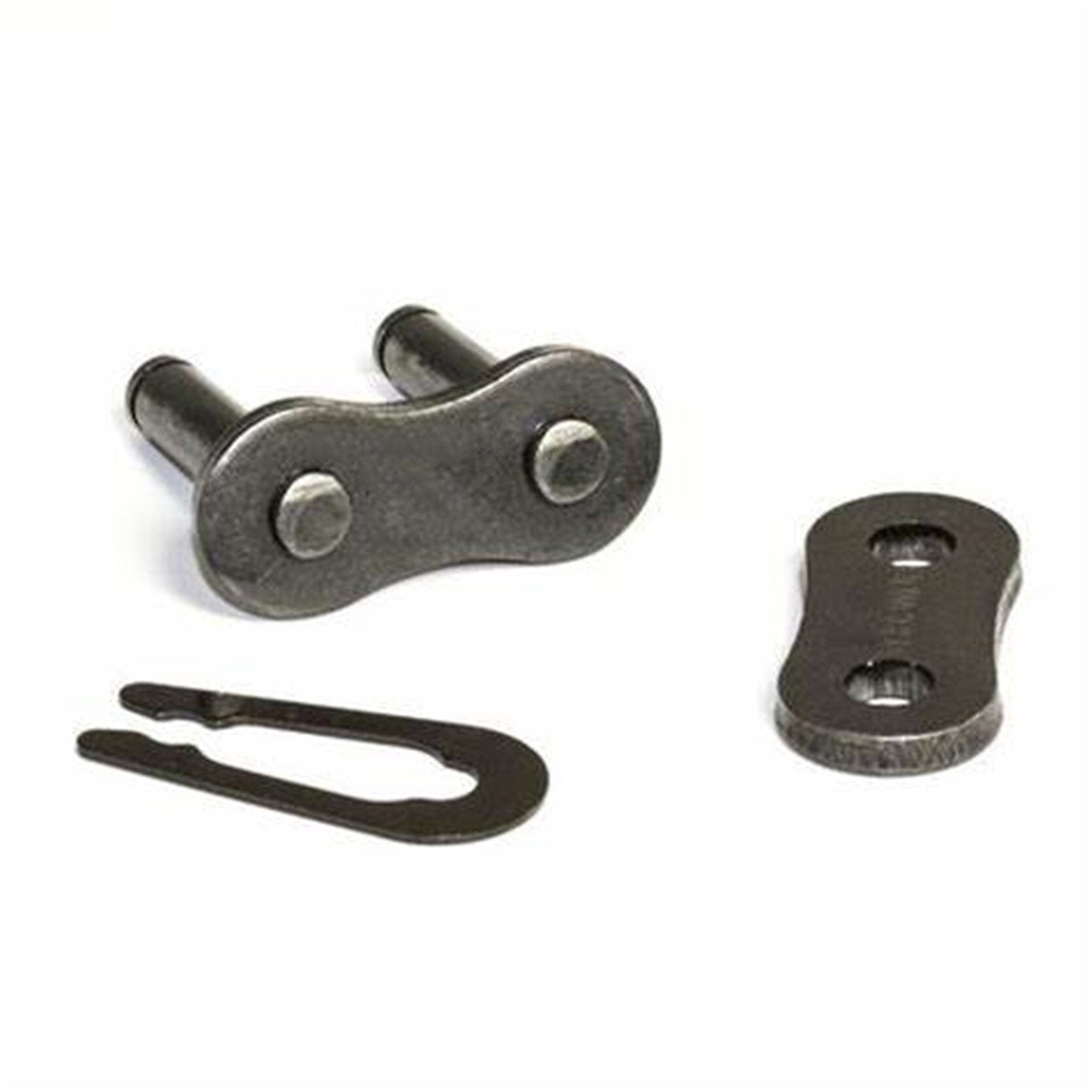

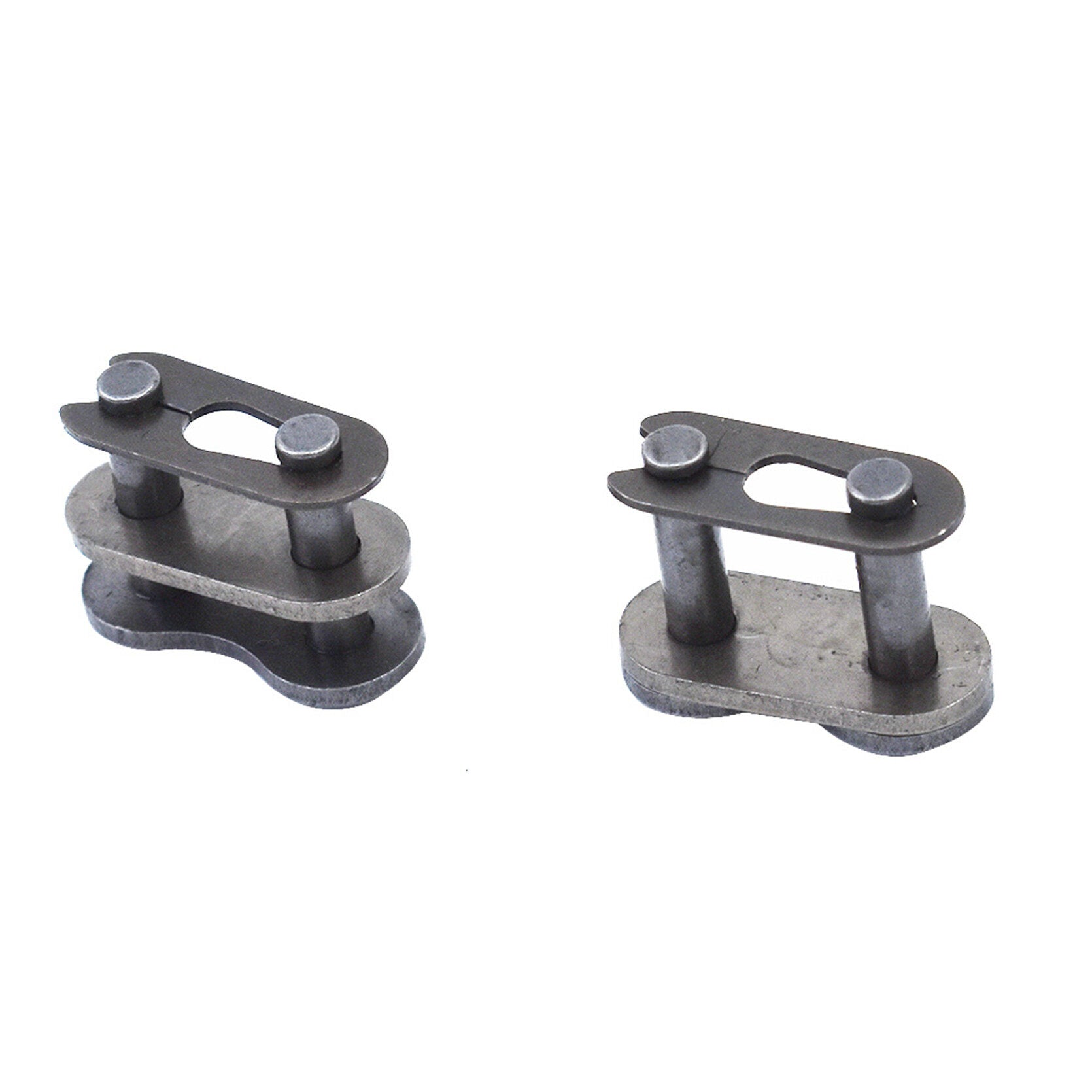

One connecting link is on the chain
