Parameters:
DC supply: 8 Volts to 35 Volts DC continuous
Cranking drotoups: able to survive 0 Volts for 50 ms, providing supply was at least 10V before dropout and supply recovers to 5 Volts. This is achieved without the need for internal batteries.
Current: operating 50mA standby 10mA
Alternator input range: 15 Volts to 227 Volts AC
Alternator input Frequency: 50-60Hz at rated engine speed
Start output: 1.2Amp DC at supply voltage
Fuel output: 1.2Amp DC at supply voltage
Preheat output: 1.2Amp DC at supply voltage
Operating temperature range: -30 to + 70
Applicable Standards:
Compliant with BS EN 60950 low voltage directive
Compliant with BS EN 50081-2: 1992 EMC directive
Compliant with BS EN 61000-6-4: 2000 EMC directive
Package Includes:

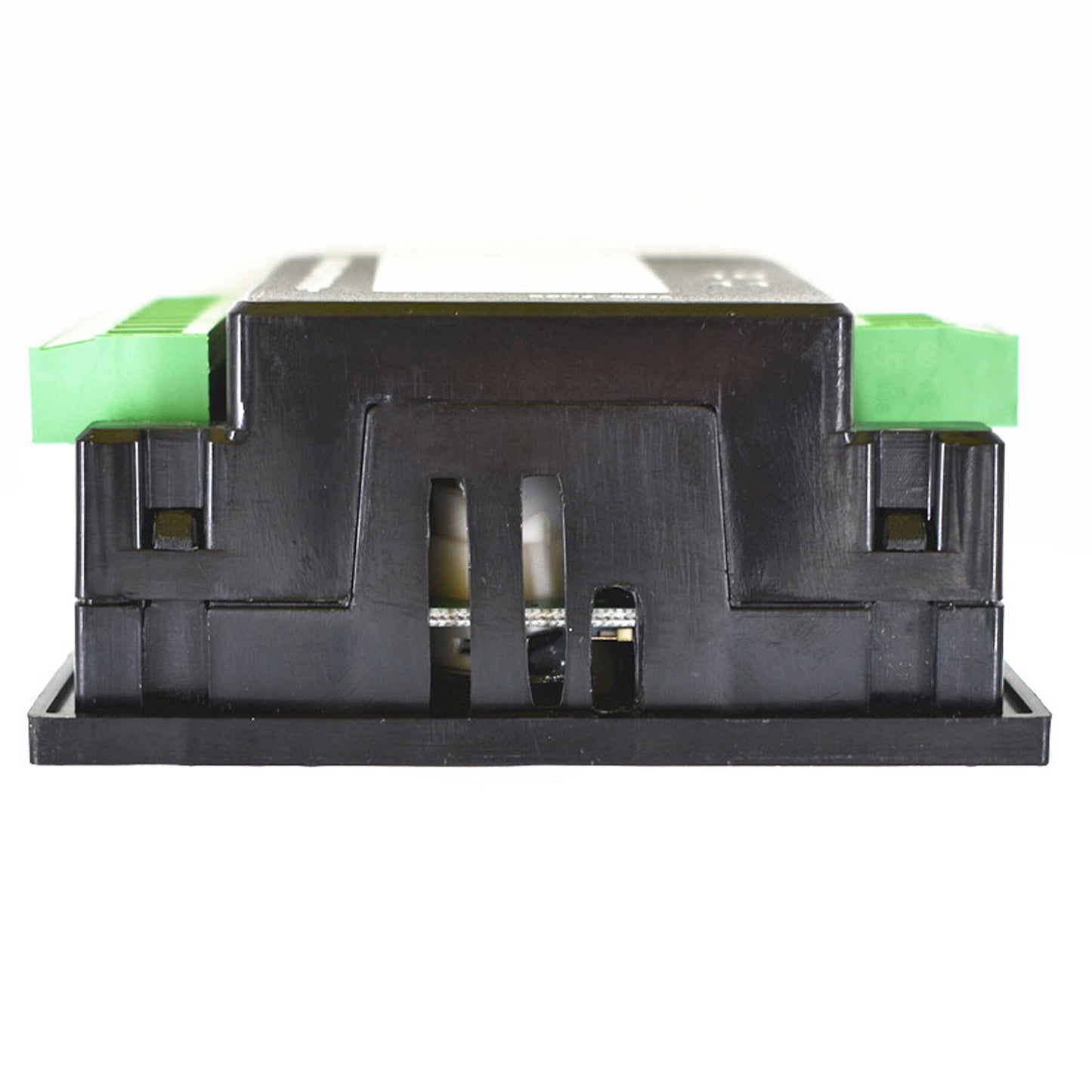

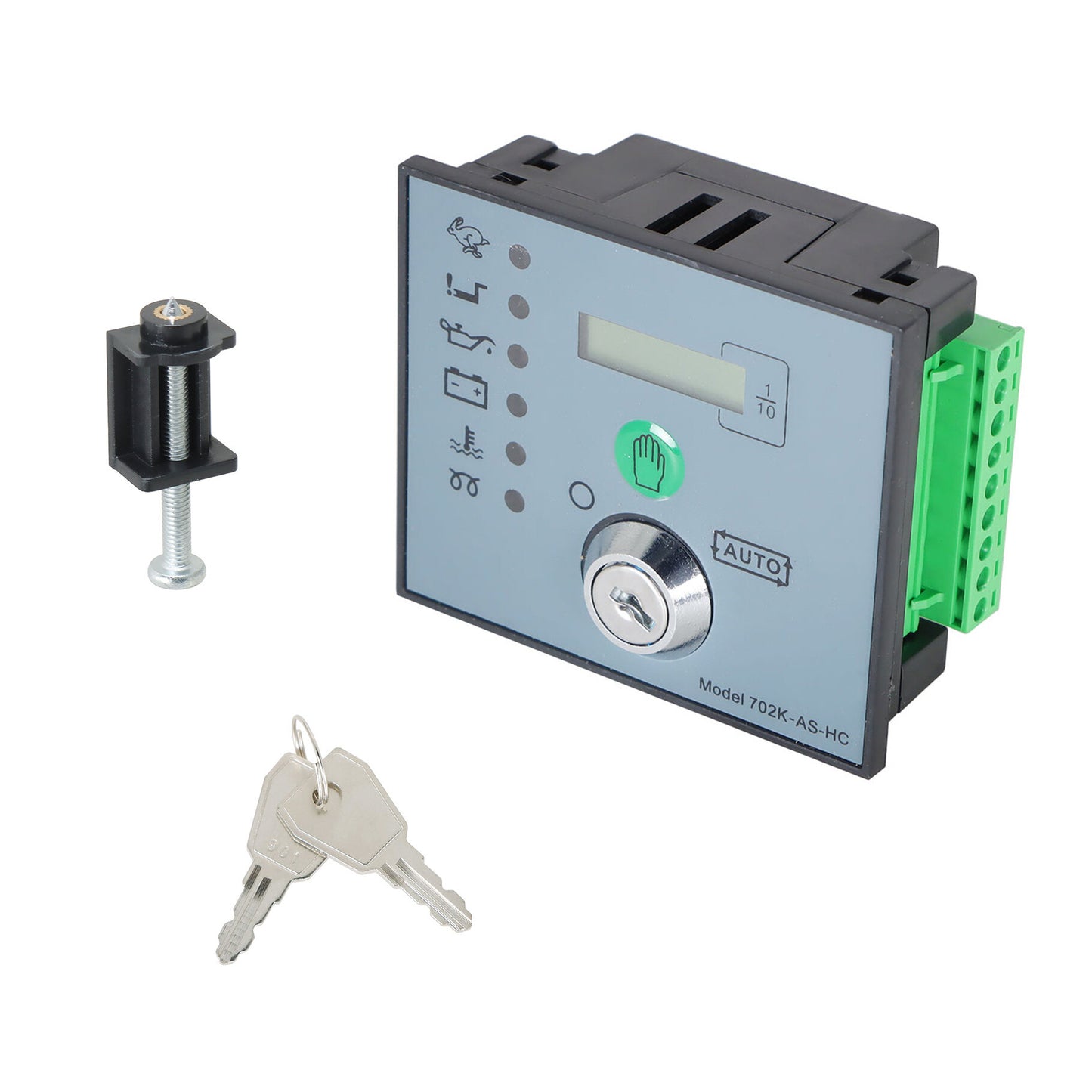

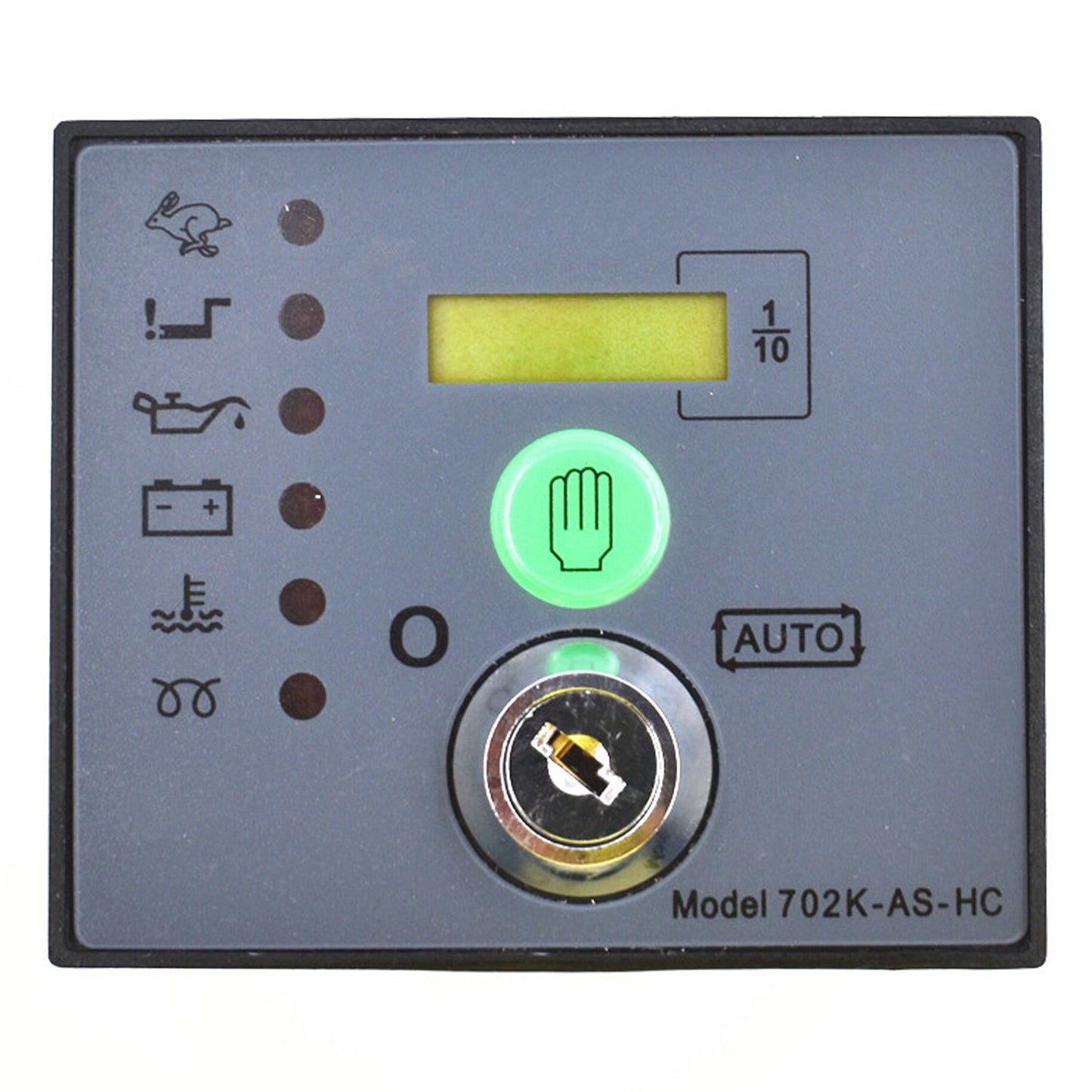

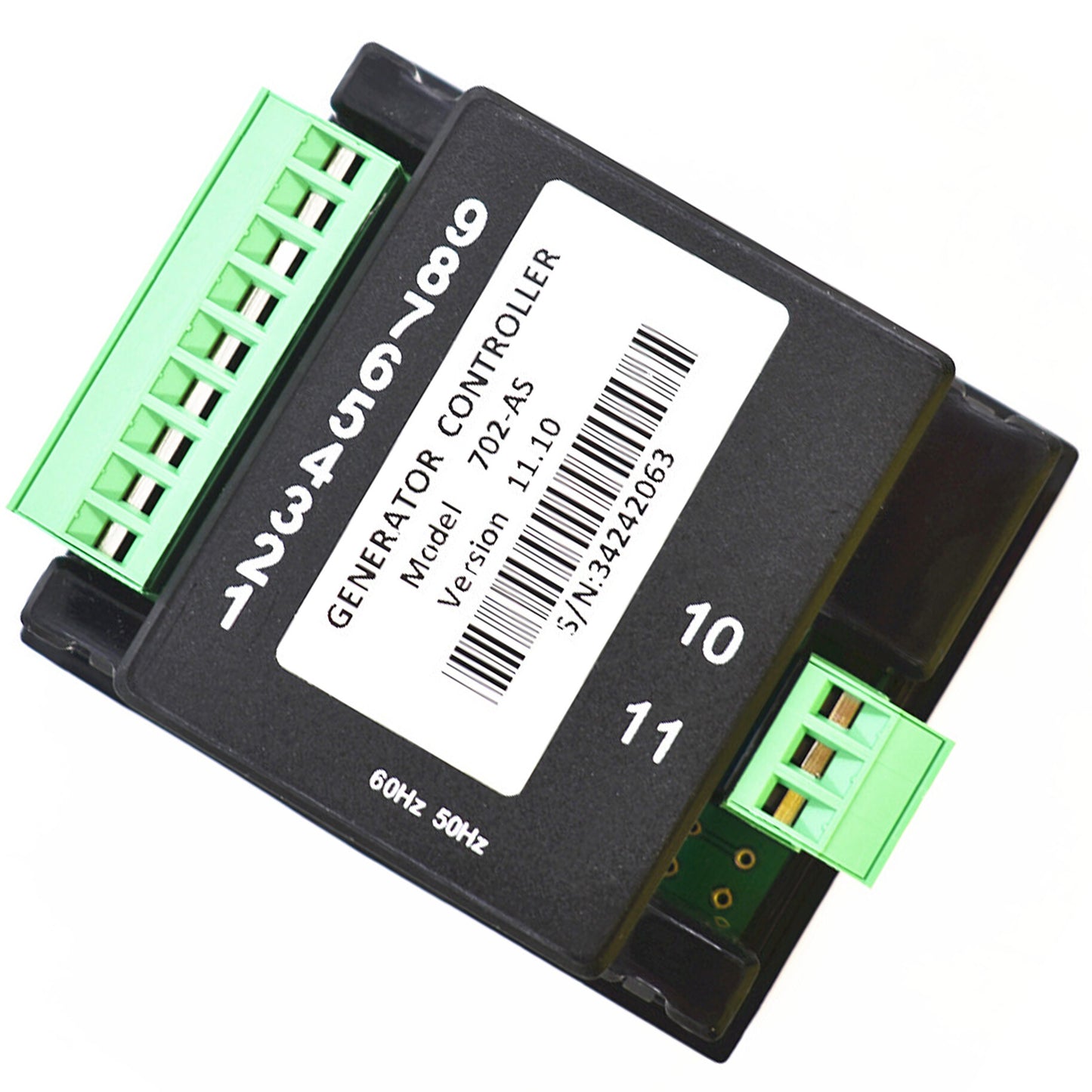

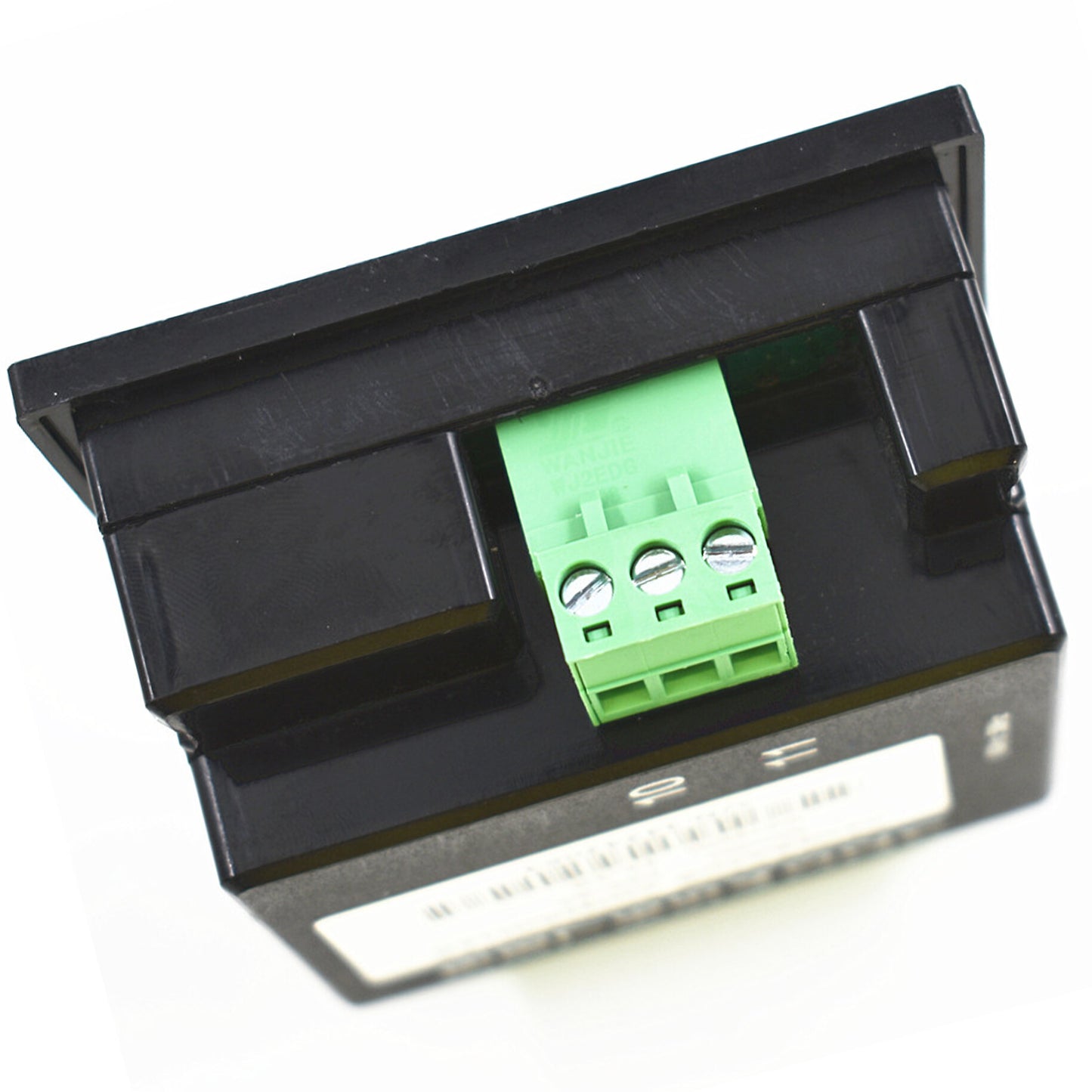

1 Pack DSE702AS Control Panel
